1800W Immersible Ultrasonic Transducer Multi Size With Convenient Install

Basic Information
Place of Origin: China
Brand Name: Agsonic
Certification: CE
Model Number: AG-06
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10-20days
Supply Ability: 100pcs/month
Material: Sus304/316 Application: Immesible Transdcuer
Frequency: 28KHZ/40KHZ/80khz Control: Generator Control
Transducer: Strong Power Packing: Export Carton Box
High Light:

submersible ultrasonic transducer

,

ultrasonic vibration transducer



1800W Submersible Water immersible Ultrasonic Transducer Generator For Cleaning Tank



AGsonic immersible ultrasonic transducer box-embedded in your existing tank.

good quality-custom made size-chemicals resistance-moveable-convenient install



Immersible transducer generator specification :



Model (AG models) AG-06 AG-12 AG-18 AG-24 AG-30 AG-36
Ultrasonic transducer box size (mm) L 305 355 406 500 550 500
W 250 305 305 355 406 460
H 100 100 100 100 100 100
Housing material SUS304/SUS316L
Surface finishing Hard-Cr plating treatment (20+microns)
Ultrasonic frequency 28KHz / 40KHz
Ultrasonic transducers 6pcs 12pcs 18pcs 24pcs 30pcs 36pcs
Ultrasonic power 300W 600W 900W 1200W 1500W 1800W
Electronic generator KG300 KG600 KG900 KG1200 KG1500 KG1800
Ultrasonic generator work separately control transducers
power suppy AC 110V/220V or 220/240V, 1,13AMP

*Custom made:68KHz/80KHz/120KHz and size are all available

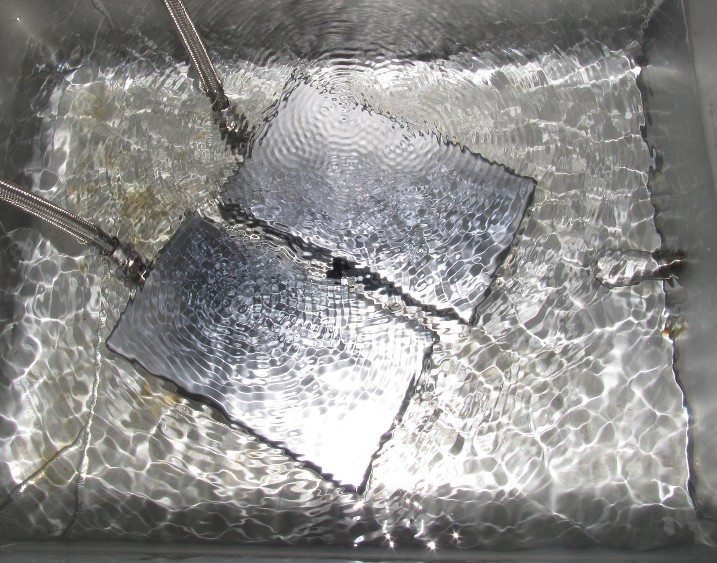

AG series immersible ultrasonic transducer system includes transducer box and generator. It can be used when the standard model ultrasonic cleaner is inapplicable in the specific working conditions, besides may have the special specification made to order. The transducer box and generator are separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank. The transducer box is moveable in the tank for more convenience. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load.





Immersible ultrasonic transducer units can be installed in the tank by three ways:side and/or bottom mounted or top mounted depending on the tank geometry.. The specification of transducer boxes are available for custom made.



Industrial Medical Sonicator Cleaner





Ultrasonic immersible transducer cleaner applied ranges:



Machinery industry: Removing rust and grease for Machinery Parts, Engine, carburetor and automobile parts cleaning, Filter. Clear filter, especially in the railway industry, for degreasing decontamination conditioned train cars, each member of the front of the train rust, oil, and rust, very suitable



Surface treatment industry: Degreasing derusting before plating, cleaning before Ion plating, Metal workpiece surface activation treatment, phosphating, remove carbon deposition, oxidation and polishing paste



FAQ:
Q: What are the advantages of AGsonic ultrasonic cleaner over traditional cleaning methods?
A:1. minimize the use of manual labor
· 2. make cleaning and degreasing without the use of organic solvents
· 3. clean hard to reach areas of products and remove all types of dirt
·4. shorten the processes such as extraction, dispersion, purification, chemical reactions
·5. eliminates costly mechanical and chemical cleaning of heat exchangers

Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects.
28kHz frequency is stronger, better for car/motor/truc parts clean (remove oils, grease, pastes, etc. )
40kHz is better for pcb boards, electronic parts, etc.
Higher precision goods, higher frequency.

Q: Can ultrasonic cleaning damage parts?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe. No damage to your daily objects.

Q: What cleaning solution should I use?
A:A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.
