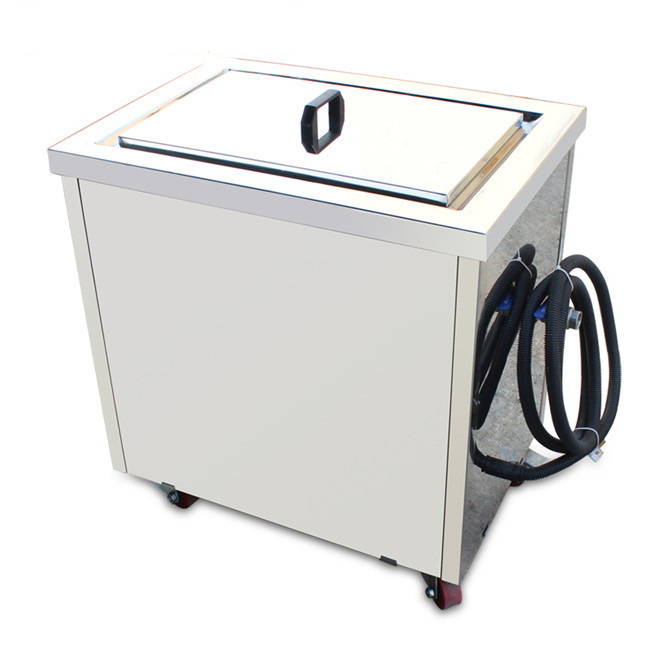

Aviation Helicopters Aircraft Ultrasonic Heated Tank For Metal Parts 4-Feet Long 1 Meter

Basic Information
Place of Origin: China
Brand Name: Agsonic
Certification: CE
Model Number: T-1108S
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10-20days
Supply Ability: 100pcs/month
Material: Sus304/316 Frequency: 28KHZ/40KHZ/80khz
Heater: 20-95℃ Adjustable Basket: Layered Design For Different Cleaning
Automatic: Oil Cylinder Engine Parts Sovent Recycle: Filter System Optional To Move Oil
Use: Motor Engine Block Cleaning Typer: Automotive Cleane



Aviation Helicopters Aircraft Ultrasonic Heated Tank For Metal Parts 4-Feet Long 1 Meter



AGSONIC ultra sonic cleaning of all parts old and new prior to assembly of the engine. This Ultrasonic Cleaning Method is long known as the "benchmark" in cleaning. Ultrasonic cavitation is able to clean right down to the surface of a part and beyond. It is also able to reach internal areas, which are not accessible by using other cleaning means including spray and mechanical agitation. The forceful nature of ultrasonic energy provides the physical "push" required to break the mechanical and ionic bonds that hold very small particles to surfaces.





Ultrasonic Heated Tank of Aircraft ,metal part  Car engine parts, Truck engine parts and Motor bike engine parts

Our Ultrasonic cleaning process, can effectively clean the following components- Aluminum castings, engine blocks, Carburetors, Cylinder Heads, Engines, Engine Components, Gear Boxes, Filters, Tubes and Valves.



Product Description

Welcome to Engine parts cleaning - Engine Parts Cleaning, Car Engine Parts Cleaning, Truck Engine Parts Cleaning, Motor Bike Engine Parts Cleaning.

The Engine Parts division specialises in the Ultrasonic Cleaning of Engine Parts, Car engine parts, Truck engine parts and Motor bike engine parts to both trade customers and individuals .

Our Ultrasonic cleaning process, can effectively clean the following components- Aluminum castings, engine blocks, Carburetors, Cylinder Heads, Engines, Engine Components, Gear Boxes, Filters, Tubes and Valves.



Why Clean Parts with Ultrasonics?

Delivering and using clean parts is not always obvious. Certainly, no one wants to handle a dirty part or install it into a critical machine, but dirt, debris and contaminants can cause problems for manufacturers and end users. From the merely frustrating to catastrophic, dirty parts can cause critical components to exceed tolerances and even fail damaging valuable equipment and property while contamination (everything from grease, oil and chemicals to viruses and bacteria) can seriously harm users.



Ultrasonics: The ONLY Way to Clean with Confidence

Regardless of the source of the dirt or contamination, AG Ultrasonic Cleaning Systems are designed to accommodate a wide variety of uses in diverse industries. Fast, effective and efficient, our machines will allow you to clean virtually any type of part or component. The following is just a short list of the many different types of items that have been cleaned using our systems.

  • Automotive (Car, Truck, Motorcycle) See Video Below
  • Aviation (Helicopters, Aircraft and Ground Support)
  • Personal Boat & Marine
  • Injection Molds
  • Restaurants, Bakeries & Kitchens (Oven Filters, Burners, Pots, Pans, Utensils)
  • Machines of All Types
  • Tools, Nuts, Bolts
  • Extrusion and Deburring
  • Almost anything made out of metal (ferrous and non-ferrous), plastic, vinyl, and wood.
  • And much more



Pls find more specifications below:

Specifications for ultrasonic cleaner T-72S
Model T-72S
Tank capacity 360L
Tank size 1000x600x600mm
Unit size 1140x740x820mm
Tank material 2mm SUS304
Ultrasonic power 3600W
Heating power 9KW
Timer 1-99min adjustable
Heater 0-80c adjustable
Frequency 28/40khz
Control External generator, more stable
Optional Oil filter system, pneumatic lift, rinsing tank, etc.
Voltage 110V, 1phase; 220V, 3phases/220V, 1phase; 380V, 3phases
Warranty 1 year
Packing 1unit/wooden case





Standard Industerial Ultrasonic Cleaner Specification



Model Tank size Unit size Volume Ultrasonic power Frequency Heating power Timer Heating temperature
LxWxH(mm) LxWxH(mm) (L) (W) (kHz) (KW) (MIN) ()
T-12S 500x300x250 640x440x470 38 600 28/40 1.5 1-99




0-80
T-18S 500x350x350 640x490x570 61 900 1.5
T-24S 550x400x400 690x540x620 88 1200 3
T-30S 600x450x400 740x590x620 108 1500 3
T-36S 600x500x450 740x640x670 135 1800 4.5
T-48S 700x500x500 840x640x720 175 2400 6
T-60S 800x600x550 940x740x770 264 3000 7.5
T-72S 1000x600x600 1140x740x820 360 3600 9




AGsonic ultrasonic cleaner machine

The Advantages of AG Engine block ultrasonic cleaning machine

Ultrasonic cleaning machine delivers high performance industrial strength, cleaning action on Engine block, carburetor and Engine parts

01: Cleans carbon deposits from carburetors and all manner of engine parts

02: Removes stubborn oil grease, lubricants, paint, rust, and dirty (with-pre-cleaning in same cases

03: Aluminum sate

04: Penetrates deep into the part and cleans holes, small apertures and crevices

05: Clean sensitive parts like wiring and plastic without damage

06: Does not require line-of-sight for effective cleaning

07: Ensures part longevity due to high degree of cleanliness



AG Engine block ultrasonic cleaning machine are revolutionizing cleaning methods and processes on the automotive and mechanic shop floor, our Engine block ultrasonic cleaning machine can clean all kinds of automotive, aircraft, and marine engine parts, ultrasonic technology for cleaning parts eliminates manual labor while providing you with superior cleaning action, most parts can be cleaned with environmentally friendly water-based solutions



Ultraonic Heated Tank Cleaning Effect :

Aviation Helicopters Aircraft Ultrasonic Heated Tank For Metal Parts 4-Feet Long 1 Meter 0


 Ultrasonic Cleaner tank with transducer Production

Aviation Helicopters Aircraft Ultrasonic Heated Tank For Metal Parts 4-Feet Long 1 Meter 1
