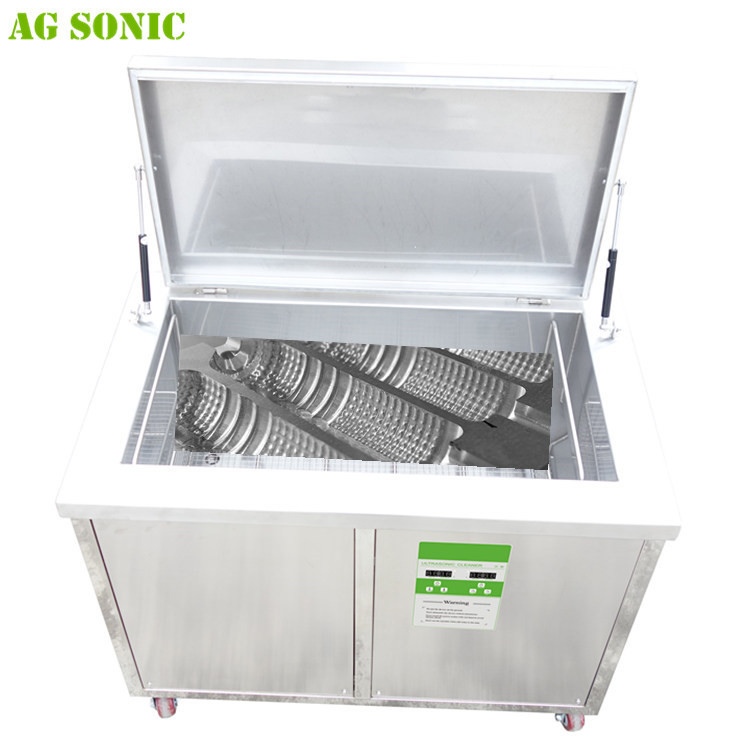

Ultrasonic Cleaner for High Performance Mold and Injection Molds Cleaning 40khz SUS304

Basic Information
Place of Origin: China
Brand Name: AG SONIC
Certification: CE
Model Number: T-18S
Minimum Order Quantity: 1unit
Price: negotiation
Packaging Details: 1unit/wooden case
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 300units/month
Tank Capacity: 61L Tank Size: 500x350x350mm
Parts 1: Basket Parts 2: Lid
Parts 3: Filtration System Warranty: 1 Year
Timer: 1-99min Adjustable Heater: 20-80c Adjustable
High Light:

industrial ultrasonic washing machine

,

industrial ultrasonic cleaning tanks


Ultrasonic Cleaner for High Performance Mold and Injection Molds Cleaning 40khz SUS304

Ultrasonic Cleaners enhance the performance and increase the life of your injection molds.
Ultrasonic Cleaners Increase Life & Performance of Your Molds



Enhance Performance & Extend the Life of Your Molds

The ultrasonic cleaning process is a fully automated cleaning process that requires no manual intervention or presence. Simply remove the excess dirt and debris that maybe stuck to your mold and place it in the ultrasonic cleaning bath. The ultrasonic cleaning action will penetrate deeply into every groove and crevice of your mold. The ultrasonic agitation of the cleaning solution will dislodge even minute soils. No manual, abrasive, scrubbing action is ever used resulting in faithful retention of your mold geometry. As a result your mold life is extended considerably while continuing to minimize production rejects and scrap.
If this is your first time you may have questions. Choosing the right combination of equipment and chemical solution for your specific situation can be challenging. If you are unsure, please do talk to us first. Just call us. We will quickly help you identify the exact ultrasonic cleaner unit and cleaning chemistry combination that you need.


Brief introduction of the 61 Lindustrial ultrasonic cleaner:
To reduce the material cost, AG SONIC has standardized 38L-360L ultrasonic cleaner, so you can get the machine in short time and low price. For more info, welcome to ask.
1. The machine is with digital timer and heater, so it's easy for you to handle the machine;
2. The machine is with separate generator, so it's much more stable than the one with built-in PCB. And it's easy for you to change the PCB if any problem. On the other hand, it will reduce the packing size, so the shipping freight will be much lower.
3. The machine is with casters compared with 30L betchtop ultrasonic cleaner, so it will easy to move in the factory if full with water.
4. The machine is with water recycle system to recycle the solvent and absorb the oil.
5. The machine will be packed in wooden case, and you can get the machine in good condition.

Application
Ultrasonic cleaning can be used for many applications, including plastic parts, bearing, bolts, rubber parts, internal parts, plastic injection molds, transmission parts, and final cleaning of all engine parts prior to assembly, the versatility of ultrasonic cleaning machine make them the perfect choice for automotive, medical, pharmaceutical, aerospace, engineering and many other industries

Characters
Opposing horizontal transducers mounted at two sides
Digital control wave ultrasonic generators
Movable cleaning basket
Can combined with lifting system, drying tank, rinsing tank, recirculation & filtering system
Incredible versatility in dimension, function and auxiliary couples

Why clean parts with ultrasonic?
Delivering and using clean parts is not always obvious, certainly, no one wants to handle a dirty parts or install it into a critical machine, but, dirty, debris and contaminants can cause problems for manufactures and end users, from the merely frustrating to catastrophic, dirty parts can cause critical components to exceed tolerances and even fail damaging valuable equipment and property while contamination (everything from grease, oil and chemicals to viruses and bacteria) can seriously harm users.

Here at AG we know about industrial production.
During production and further processing of material goods or merchandise in factories and plants, a wide range of cleaning tasks apply. Precision is required here (as well). Only clean parts without residue can be coated, varnished, glued or soldered. For this reason, professional parts cleaning before further machining or processing as well as final cleaning before delivery is required for the production of high-quality parts and assemblies. Even during component and assembly overhaul, our cleaning systems are being used before and after maintenance for quality control and conservation of value of the parts. Our ultrasonic cleaners and systems are used in industries like electronics, micromechanics, metalworking industry or aviation.

Specifications:

Specifications for ultrasonic cleaner T-18S
ModelT-18S
Tank capacity61L
Tank size500x350x350mm
Unit size640x490x570mm
Tank material2mm SUS304
Ultrasonic power900W
Heating power1.5KW
Timer1-99min adjustable
Heater0-80c adjustable
Frequency28/40khz
ControlExternal generator, more stable
OptionalOil filter system, pneumatic lift, rinsing tank, etc.
Voltage110V, 1phase; 220V, 3phases/220V, 1phase; 380V, 3phases
Warranty1 year
Packing1unit/wooden case



Cleaning effect:
