Aluminium Plastic Ultrasonic Welding Machine Digital Frequency Tracing 20KHz

Basic Information
Place of Origin: China
Brand Name: Agsonic
Certification: CE
Model Number: T-15KHZ
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10-20days
Supply Ability: 1000pcs/month
Frequency: 15KHZ Max Power(W): 2600W
Size(L*W*H)(mm): 475*430*410 Generator: Digital Frequency Tracing
Voltage:: 220V Used: Plastic Welding Mask Machine
Transducer: 1 Pcs Name: Ultrasonic Welding Machine
Application: Face Mask Machine Welders
High Light:

ultrasonic spot welding machine

,

ultrasonic spot welder



20K 2000W Spot Welder Equipment For Nonwoven Fabrics Production

Product description:

* Product name: N95 Mask Making Machine

* Keywords: Mask edge sealing machine

* 20KHz (2000W) / 15KHz (2600W)



Ultrasonic welding principle:
Hand-held ultrasonic welding machine, several commonly available operating frequency, 20KHz, The principle is the use of sound waves reached the peak position of the gap between the plastic, in the case of pressure, so that the two fusible elements which could be part of the plastic parts in contact with each other to produce the high-speed friction melts, the contact surface of the plastic fusion, achieve the purpose of processing.

Machine Features:
1. Hand-held design, welding convenient, compact machine design, small size does not occupy space.
2. Frequency: 20KHz.
3. Slight noise, work environmental, no pollution.
4. Welding fast, each welding time 0.01-9.99 seconds.
5. High welding quality, fine welding results.

Applications:
1. Suitable for spot welding products Φ1-15mm.
2. Suitable for riveting, welding, dots, folder location.
3. For the SD card, U disk, mobile phone antennas, headsets and other communications products, and microelectronics.

20khz Digital Control Ultrasonic Ear Loop Welding Machine

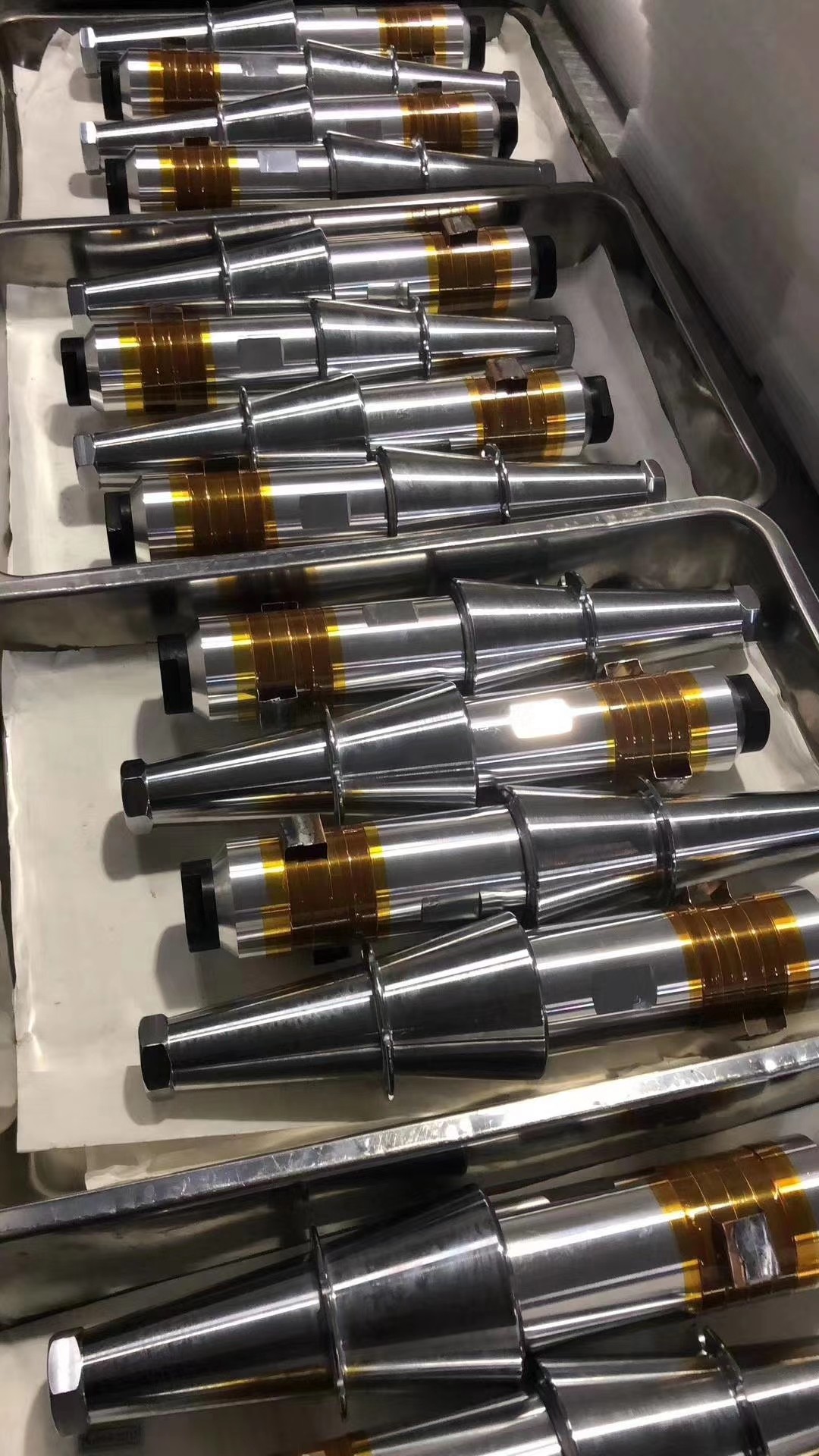

Ultrasonic transducer is the core device that converts electrical energy into mechanical energy (ultrasonic), the piezoelectric ceramic chip is selected from well-known supplier, and can give a strong and stable output. The frequency is mainly 20kHz, 15KHZ ,we can provide ultrasonic transducer, ultrasonic transducer with booster, ultrasonic transducer with booster and sonotrode separately as your request.



20Khz 2000W Plastic Welders Ultrasonic Welding Machine 2000W Power

Specifications:

Model T-20KHZ
Efficient Frequency 20KHz
Ultrasonic Power 2000Watts
Features Fast Welding and Manufacturing, safety weld
Construction Power Generator+Ultrasonic Transducer+Mold(for reference)
Power Supply AC110V 60Hz, 220V 50Hz
Unite Size 475*450*170mm
Support Online Support
Delivery Time About a week

How Ultrasonic Welding work:

high-frequency vibrations are applied to two parts or layers of material by a vibrating tool, commonly called a “horn or sonotrode.” Welding occurs as the result of heat generated at the interface between the parts or surfaces.

Powerful and steady output

Hand booster, flexible to use

Easy maintenance, easy to carry

Ideal for 1-15mm welding point

The machine is made of quality components.



Features:

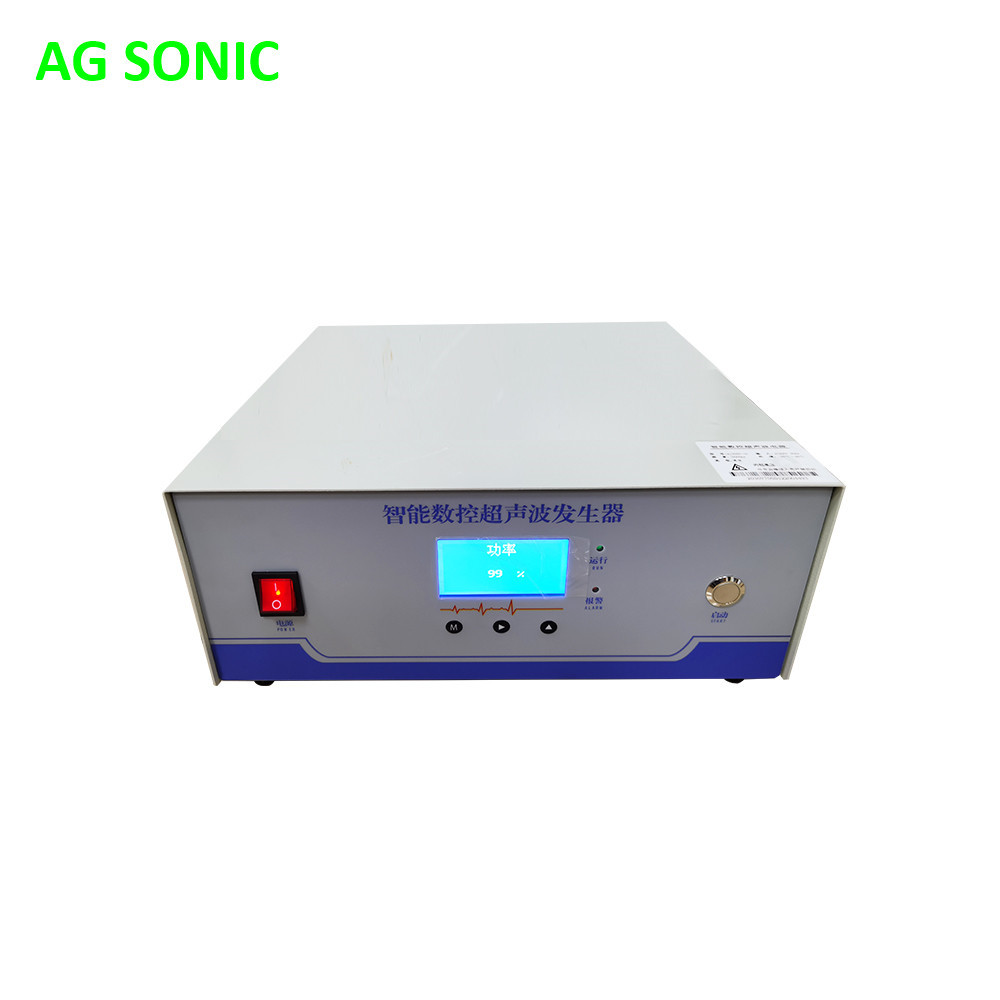

1. Ultrasonic system is divided into three parts, ultrasonic generator, ultrasonic transducer and ultrasonic die, with the three parts is a complete ultrasound system.

2. The ultrasonic generator is also a part of the ultrasonic energy production, our ultrasonic generator adopts imported electronic components, hardcover.

3. With a high-powered ultrasonic transducer with a titanium alloy ultrasonic die head.

4. The machine failure rate is low, consumables, durable, easy installation and debugging, maintenance is simple.



Ultrasonic welding machine Application

1.To weld small size plastic of riveting,face masks,N95 mask, spot welding, embossing, locating and fixing rhinestones on clothes, shoes and accessories. easy to carry, simple operation

2.Ultrasonic spot welding machine widely used in cloths industry, trade mark industry, automobile industry, plastic and electrical industry, household goods industry and so on.

Ultrasonic welding machine Advantages

1.Easy and simple in operation, steady output, high efficiency.

2. Reliable performance, easy operation, mainly for spot welding, bonding, riveting, marking, sealing etc.

3.Suitable for thermoplastics welding

4.We Can Make Custom Sonotrode / welding mold for Customers

5.Precision and fast welding on plastic item
