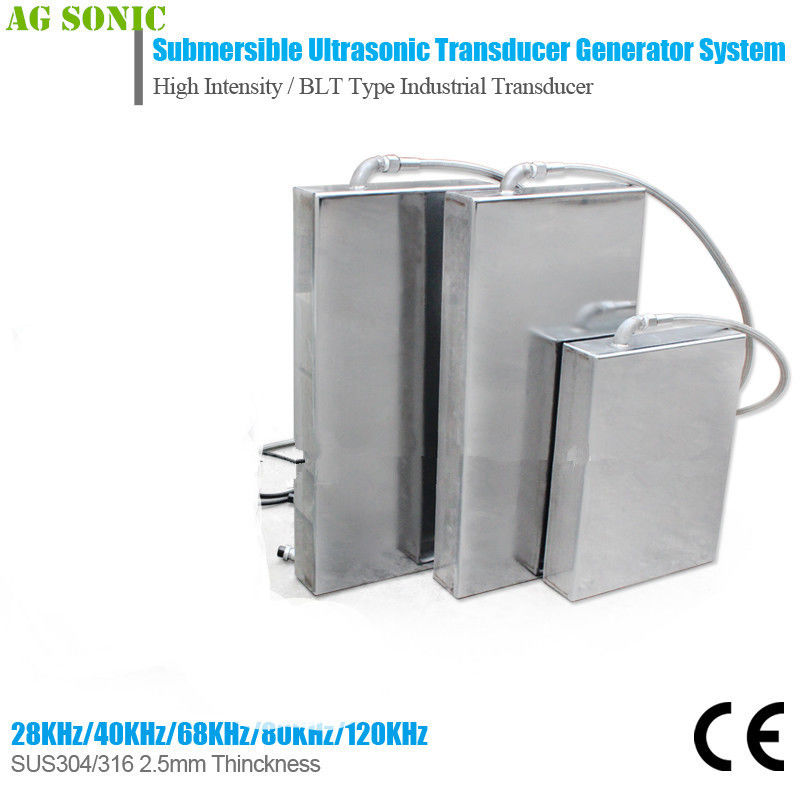

Waterproof Immersible Ultrasonic Transducer , Ultrasonic Vibration Generator

Basic Information
Place of Origin: China
Brand Name: AG SONIC
Certification: CE
Model Number: AG-30
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 1unit/wooden case
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 300units/month
Frequency: 28+40kHz Box Material: SUS304
Ultrasonic Power: 1500W Pack Size: 500x406x100mm
Cables Lead-out: With Rigid Pipe Packing: Wooden Case
High Light:

submersible ultrasonic transducer

,

ultrasonic vibration transducer



Immersible Ultrasonic Transducer, Ultrasonic Vibration Generator With Vibrating Plate



Application:

  1. Car service: Flushing carburetors, injectors, injectors, fuel filter mesh cleaning (petrol), individual parts, assemblies, and entire blocks.
  2. Medicine: Washing and polishing of optics, sterilization and cleaning of surgical instruments, vials, dental and pharmaceutical industries; cleaner reusable, molds.
  3. Engineering: Cleaning of parts, pipes, wires, etc. before finishing, machining parts and components to the preservation, processing of parts after reopening, welding, grinding, polishing, cleaning strainers in the fuel and hydraulic systems, deburring parts.
  4. Instrumentation: Washing and polishing of optics, precision mechanics components, integrated circuits and printed circuit boards.



Introduction:

To create a basic yet high-quality ultrasonic bath, all you need is an AG immersible ultrasonic transducer, ultrasonic cleaning tank , and ultrasonic generator

AG Ultrasonics immersible transducers are constructed of cavitation resistant, bright annealed 304/316L stainless steel with robotically welded seams to ensure a long life.

You can design these customized submersible units into your new ultrasonic systems or retrofit them into existing systems to introduce ultrasonic precision cleaning. The cleaning load of your parts tank will determine the number and placement of the submersible transducers, which are available in custom sizes, wattage, and frequencies — including 25 kHz, 40 kHz, 58 kHz, 132 kHz, 192 kHz, 470 kHz, and 1000 kHz — as well as custom combinations including 20/40 kHz and 58/192 kHz. They can be mounted on either the sides or bottoms of the cleaning tanks, depending upon their geometry.



By using a AG modular submersible ultrasonic transducer, you ensure easy servicing, because each one can be easily replaced in minutes thanks to our flexible mounting schemes. You can also move our immersible transducers from tank to tank, or reposition them on tanks as required for special situations and needs. And you can rack-mount a series of AG immersibles so that they can be installed and/or removed as a group to speed up tank cleanings, inspections, and maintenance.



Call to learn more about our customized flexible, hand pipe, and bulkhead ultrasonic immersible transducers.





Specifications:

Model (AG models) AG-06 AG-12 AG-18 AG-24 AG-30 AG-36
Ultrasonic transducer box size (mm) L 305 355 406 500 550 500
W 250 305 305 355 406 460
H 100 100 100 100 100 100
Housing material SUS304/SUS316L
Surface finishing Hard-Cr plating treatment (20+microns)
Ultrasonic frequency 28KHz / 40KHz
Ultrasonic transducers 6pcs 12pcs 18pcs 24pcs 30pcs 36pcs
Ultrasonic power 300W 600W 900W 1200W 1500W 1800W
Electronic generator KG300 KG600 KG900 KG1200 KG1500 KG1800
Ultrasonic generator work separately control transducers
power suppy AC 110V/220V or 220/240V, 1,13AMP
*Custom made:68KHz/80KHz/120KHz and size are all available



AGsonic immersible ultrasonic transducer box-embedded in your existing tank.

good quality-custom made size-chemicals resistance-moveable-convenient install

AG series immersible ultrasonic transducer system includes transducer box and generator. It can be used when the standard model ultrasonic cleaner is inapplicable in the specific working conditions, besides may have the special specification made to order. The transducer box and generator are separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank. The transducer box is moveable in the tank for more convenience. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load.

Immersible ultrasonic transducer units can be installed in the tank by three ways:side and/or bottom mounted or top mounted depending on the tank geometry.. The specification of transducer boxes are available for custom made.



FAQ:

Q: What frequency is better for my parts?

A: Frequency is suggested based on pollutants in the objects.

28kHz frequency is stronger, better for car/motor/truck/vessel parts clean (remove oils, grease, pastes, etc. )

40kHz is better for pcb boards, electronic parts, etc.

Higher precision goods, higher frequency.



Q: Can ultrasonic cleaning damage parts?

A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.

No damage to your daily objects.



Q: What cleaning solution should I use?

A: A large variety of different formulas designed for specific applications. Proper selection is crucial for

acceptable cleaning activity and to prevent unwanted reactions with the workpiece.



Ultrasonic Cleaning Effect :

Waterproof Immersible Ultrasonic Transducer , Ultrasonic Vibration Generator 0
