Stainless Steel Tank Digital Heater Semiconductor Ultrasonic Cleaner

Basic Information
Place of Origin: China
Brand Name: AG SONIC
Certification: CE
Model Number: TB-500
Minimum Order Quantity: negotiation
Price: negotiation

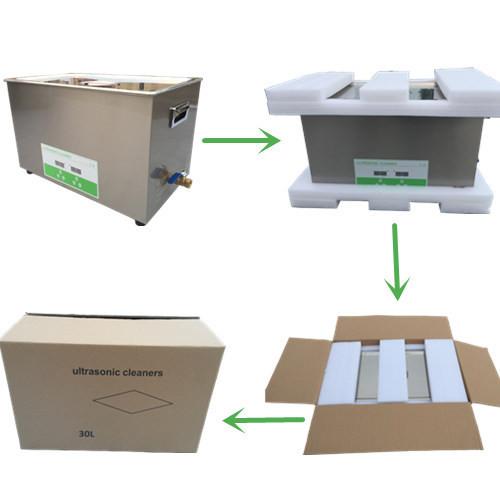

Packaging Details: 1pcs/carton
Delivery Time: 3 working days
Payment Terms: T/T, Paypal
Supply Ability: 3000pcs/month
Tank Capacity: 30L Tank Size: 500*300*200mm
Tank Material: SUS304 Ultrasonic Power: 500W
Name: Semiconductor Ultrasonic Cleaner Timer: 1-30min Adjustable
High Light:

digital ultrasonic cleaner

,

benchtop ultrasonic cleaner



Stainless Steel Tank Digital Heater Semiconductor Ultrasonic Cleaner



Benefits of cleaning Semiconductor with an ultrasonic cleaner

Electronics are Everywhere
And Electronics Cleaning is BIG Business

Electronics and electrical appliances become very dirty with continued use. If not maintained properly electronics will begin to malfunction. As dirt builds up, fans in computers will not cool the unit sufficiently, television channels and stereo receivers will lose their crisp image and sound and the keys on keyboards will stick and not function properly. Only AG SONIC Ultrasonic Cleaning Systems can clean electronics and appliances and restore them to working condition.



An unavoidable fact about our modern world is that electronics surround us. Regardless if it’s in the form of personal computers, cell phones, iPads, electrical appliances, tools, machinery, toys, etc., electronics are everywhere.

Another unavoidable fact is that, with use, electronics get very dirty. Dirt and other contaminants are more than an inconvenience. If not cleaned properly, dirt on electronic components can cause the device to:

In order to protect users, preserve data and keep society running smoothly, it’s very important for electronics of all types to not just be regularly cleaned, but cleaned thoroughly.



But How Do You Thoroughly Clean Electronics?

Most people simply wipe the outside of the device or use a vacuum to suck (or compressed air to blow) away dust. Unfortunately, these methods are simply not enough. With each method, large amounts of dirt are left in the tiny crevices under buttons, around computer chips, between wires and other components. Additionally, these methods only clean what is easily visible which is just a small fraction of what needs to be cleaned, and do little to eliminate oils, viruses and bacteria, etc.



Ultrasonics, the Only Way to Thoroughly Clean Electronics

There is only one way to ensure that electronic devices and components are thoroughly cleaned, decontaminated and ready to be returned to service; and that way is with Ultrasonics.

With Ultrasonics, dirt, grease, bacteria, soot and any other contaminants are completely removed from the item with no loss of performance. In fact, with proper training, most items can be cleaned in less than two minutes and returned to service as soon as drying is complete.

Steps to cleaning Semiconductor with an ultrasonic cleaner

  1. Fill chamber with cleaning solvent
  2. Note that water must be hot. Ideally, you would use an ultrasonic cleaner with a heater.
  3. Run a pre-cleaning cycle
  4. Submerge Semiconductor into cleaning solvent
  5. Run the cleaning cycle
  6. After the cycle is complete, remove the items from the parts basket and rinse the solution from the items
  7. After rinsing brush the pieces with a soft-bristled brush. Paying special attention to brushing around the claws and crowns that hold the gemstones or diamonds in place.
  8. Complete with a final rinse. Place theS emiconductor in water only and dry with a soft cloth once rinse cycle is complete.



Specifications:

Produce Specifications:

Model TB-500
Ultrasonic Frequency 40,000 Hz
Material SUS304
Tank Capacity 30L
Ultrasonic Power 500 W
Heating power 600W strong power, quick heating
Timer 1-30min adjustable
Heater 0-80C adjustable
Unit Size 530 x 325 x 325 mm ( L x W x H )
Tank Size 500 x 300 x 200 mm ( L x W x H )
Package Size 635 x 405 x 390 mm ( L x W x H )
N.W. 14 kg
G.W. 15.6 kg
Power Supply AC 100 ~ 120V, 50 / 60Hz
AC 220 ~ 240V, 50 / 60 Hz





Ultrasonic Cleaners

An ultrasonic cleaner is the ideal method for cleaning and restoring delicate items, which makes jewelry a perfect candidate for this methodology. Day-to-day dirt and grime, oily residues and even jewelers rouge (a compound for cleaning and buffing jewelry) can be removed from the tiny crevices and hidden passageways of these items. This cleaning method is ideal because the equipment can be adjusted to the proper ratio and frequency required to clean but not damage items. This is one of the top benefits of ultrasonic cleaning.



How an ultrasonic cleaner works to clean jewelry

special solvents designed for cleaning jewelry can be utilized however very good results can also be obtained by using water and an environment friendly low pH cleaning agent. Low pH or excessively high pH chemicals should be avoided. These aggressive chemistries in combination with heat and the ultrasonic activity can potentially cause damage to delicate pieces.

In the cleaning process, items are submerged in the cleaning solvent. The intensity of the cleaner as well as the heat of the solution should be adjusted to successfully engage the application. Ultrasonic cleaners work quickly to completely remove dirt and other contamination through a cavitation process.

Jewelry is cleaned in the same way as other items. Items are submerged into a gentle solvent and the cleaning process sends ultrasonic waves through the solution which creates bubbles that clear away all dirt and grime clinging to the jewelry’s surface. In most cases a short two to three minute cleaning is all that is required for optimum results.





We also design and manufacture custom systems for unique applications and can provide components to convert or upgrade an existing tank. Whether you need a system to clean bearings or ceramics, ophthalmic precision lenses or mechanical manufacturing assemblies, we have a system that provides you with results.

laboratory ultrasonic cleaner, including High Frequency Desk-top Lab Ultrasonic Cleaner, Low Frequency Desk-top Lab Ultrasonic Cleaner with Heater and Low Frequency Desk-top Lab Ultrasonic Cleaner.



Product Description

Brief introduction of the tabletop ultrasonic cleaner:

  • Lowest-cost tabletop ultrasonic cleaning and parts washing equipment
  • Used to Remove Virtually Any Contaminant with the Proper Cleaning Agent
  • Oil, Coolant, Metal Chip and Fines Removal
  • For cleaning metal parts and most other precision cleaning
  • Parts cleaning, injection mold cleaning, ultrasonic degreasers, etc
  • Excellent ultrasonic performance
  • Tank capacity comes from 2-30L
  • Digital models > Mechanical models > power adjustable models

How does ultrasonic cleaning work?

Cavitation

Contrary to popular belief, cavitation is the force behind ultrasonic cleaning. It is not the sound waves that scrub the part clean – it is the cavitation process set up by the sound waves that scrub the part clean.

During cavitation, micron-size bubbles form and grow due to the alternating positive and negative pressure waves in a solution. The bubbles subjected to these alternating pressure waves continue to grow until they reach resonant size. Just prior to the bubble implosion, there is a tremendous amount of energy stored inside the bubble.

Temperatures inside a cavitating bubble can reach 9,900F with pressures up to 500 atm. The implosion event, when it occurs near a hard surface, changes the bubble into a jet one-tenth the bubble size, which travels at speeds up to 400 km/hr toward the hard surface. With the combination of pressure, temperature and velocity, the jet frees contaminants from their bonds with the substrate. Because of the inherently small size of the jet and the relatively large energy, ultrasonic cleaning has the ability to reach into small crevices and remove entrapped soils effectively.



Notifications:



 Cleaner Cleaning Equipment 2L 50W 40KHZ Jewelry Glass Digital Ultrasonic BathStainless Steel Tank Digital Heater Semiconductor Ultrasonic Cleaner 1

Stainless Steel Tank Digital Heater Semiconductor Ultrasonic Cleaner 2



Application:

Healthcare Dental and surgical instruments, optical, podiatry, general practice, hospitals, medical components
Manufacturing: Aerospace, pharmaceutical, defence, medical devices and orthopaedic implants, automotive, marine, filtration, moulding, food and beverage, plating & surface finishing, semi-conductors, printing technology and equipment.
Maintenance Automotive servicing, jewellery & watches, tools, weapons, Heat exchangers, oil & gas, commercial coffee boiler
Laboratory Scientific Research, Mixing, Cell Disruption, extraction, pharmaceutical Sonochemistry
Others window blind, golf club, tattoo equipment, anilox roller, music equipment, weapons, electronics, etc.





We know that your reputation depends on cleaning parts effectively and efficiently. Ultrasonics International can help you choose the right kind of ultrasonic cleaner for your motorcycle industry needs.

For more than two decades, Ultrasonics International has helped businesses improve profitability by providing their clients with ultrasonic cleaning equipment that feature the latest advancements in wave sweep technology. Our ultrasonic cleaning equipment has a reputation for reliability and longevity. Utilizing the proper ultrasonic cleaning equipment saves money and improves cleaning processes. Cleaning results will be measurably better and less time will be required to complete the cleaning process. Production numbers go up and labor hours go down dramatically because multiple parts can be addressed simultaneously.

Stainless Steel Tank Digital Heater Semiconductor Ultrasonic Cleaner 3

Stainless Steel Tank Digital Heater Semiconductor Ultrasonic Cleaner 4
