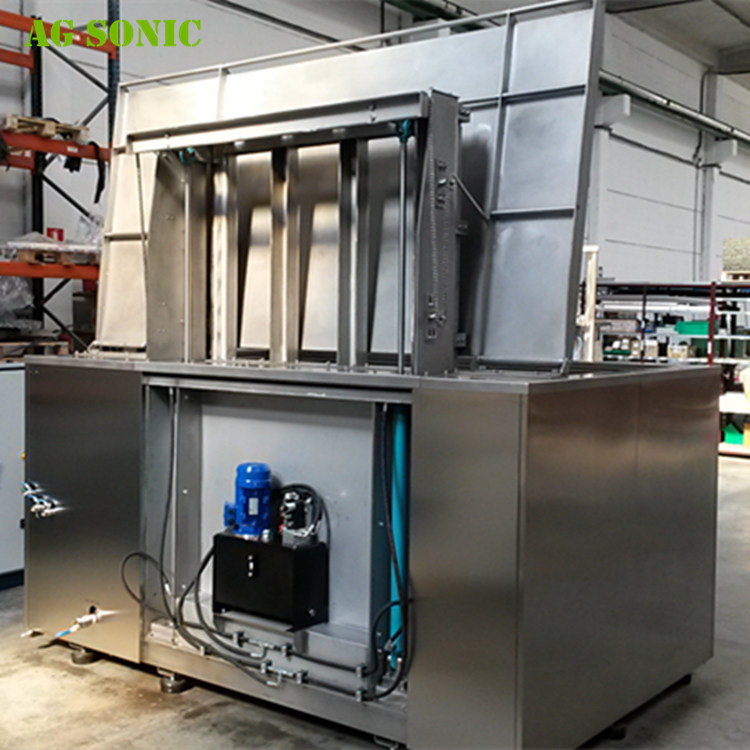

Automatic Ultrasonic Cleaner with Hydraulic Lift PLC Controlled for Wheel Rim Cleaning

Certification
China AG Sonic Technology limited certifications
China AG Sonic Technology limited certifications
Customer Reviews
Packaged well ,Merchandise working is good ,I have purchased these previously they are working great so i purchased more and very nice Experience!

—— Thomas (USA )

I used into clean fuel Inject and tools.about 3-5minutes, very fast and effectively. Great part and price and excellent service ,Thanks !

—— Paul (Holland)

Came on time ,packed good and fit the description Great doing business with you. Thank you

—— Doris(Gemany )

I'm Online Chat Now

Automatic Ultrasonic Cleaner with Hydraulic Lift PLC Controlled for Wheel Rim Cleaning

Automatic Ultrasonic Cleaner with Hydraulic Lift PLC Controlled for Wheel Rim Cleaning
Automatic Ultrasonic Cleaner with Hydraulic Lift PLC Controlled for Wheel Rim Cleaning Automatic Ultrasonic Cleaner with Hydraulic Lift PLC Controlled for Wheel Rim Cleaning

Large Image :  Automatic Ultrasonic Cleaner with Hydraulic Lift PLC Controlled for Wheel Rim Cleaning

Product Details:
Place of Origin: China
Brand Name: AG SONIC
Certification: CE
Model Number: T-108S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 1unit/wooden case
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 300units/month

Automatic Ultrasonic Cleaner with Hydraulic Lift PLC Controlled for Wheel Rim Cleaning

Description
Product: Ultrasonic Cleaner With Hydraulic Lift Control: PLC Controlled
Timer: Digital Heater: Digital
Generator: Separate Tank Material: SUS304/SUS316L



Automatic Ultrasonic Cleaner with Hydraulic Lift PLC Controlled for Wheel Rim Cleaning



With cavitations effect Ultrasonic cleaning technology is widely used in auto part ,metal part , automotive industrial , engine block, engine parts cleaning, semi-conductor silicon chip cleaning, optical glass cleaning, parts of watch and cock cleaning, jewelry cleaning, polyester filtration core cleaning, widow blind cleaning and etc.



Mainly application:
Applied for ultrasonic cleaning of engine parts, block,Semiconductor wafer, optical glass, clocks, beads and any other plastic, metal parts, anyway, the cleaning parts can immerse into the water without damage.



Customized big tank ultrasonic cleaner machine:

Ideal to clean rust,carbon,pait,heavy oil,fruit agricultural chemicals and other things hard to clean, without damage to parts inside tank..



Specifications:

Model T-108S
material SUS304/SUS316L
ultrasonic transducer heads 108pcs
ultrasonic power 5400W
heating power 10.5KW
frequency 28/40khz
timer 1~30min adjustable
heater 20~80C adjustable
capacity 500liter
tank size customer design



Features:

Adjustable ultrasonic power

Original BLT type transducer

Adaptable for continuous operation

Adjustable thermo controller

Adjustable ultrasonic power

With separate control ultrasonic electronic generator

sweep mode control available

digital timer & heating control

boost mode& oil skimmer upon clients requirement

pressure pump and filter system are available



Functions:

Single tank ultrasonic cleaner equipment system includes replaceable transducer box and generator.

The transducer box and generator can be both build-in or separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank, one side or both side or bottom mounted inside the tank.

The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load.

Specification of tank dimension and transducer boxes are custom made available. Either for mould of parts cleaning can receive perfect cleaning efficiency. Stainless steel basket is optional.



Industrial standard models for your reference:

Model Tank size Unit size Volume Ultrasonic power Frequency Heating power Timer Heating temperature
LxWxH(mm) LxWxH(mm) (L) (W) (kHz) (KW) (MIN) ()
AG-120ST 500x300x250 640x440x470 38 600 28/40 1.5 1-99











0-80

AG-180ST 500x350x350 640x490x570 61 900 1.5
AG-240ST 550x400x400 690x540x620 88 1200 3
AG-300ST 600x450x400 740x590x620 108 1500 3
AG-360ST 600x500x450 740x640x670 135 1800 4.5
AG-480ST 700x500x500 840x640x720 175 2400 6
AG-600ST 800x600x550 940x740x770 264 3000 7.5
AG-720ST 1000x600x600 1140x740x820 360 3600 9



Why choose ultrasonic cleaning machine to clean our engine block and engine parts?

Clean intricate and difficult to reach areas easily

A major challenge of any cleaning system is the difficulty faced in tackling tiny spaces, intricate geometries, and difficult to reach surfaces, ultrasonic cleaning penetrates even blind holes and small apertures, that previously had hit-and miss success rates, the uniform agitation of the cleaning solution ensures that the cleaning action penetrates even hard to reach areas that previously required specialized brushes and other complicated cleaning devices with no real guarantee of a successful and consistent cleaning outcome, various factors go into determining which combination of an ultrasonic unit and chemical solution is suited to your particular requirement

For effective cleaning the ultrasonic cleaning machine must use the right of cleaning chemistry, operate at the right temperature and use the correct frequency, the part to be cleaned the contaminant to be removed and the degree of soil, determine this, our years of experience advising manufacturing and maintenance clients on the right process for their cleaning needs help us identify the exact product combo that you need, just send AG SONIC email or call us, and we’ll guide you to the right solution quickly.



Automatic Ultrasonic Cleaner with Hydraulic Lift PLC Controlled for Wheel Rim Cleaning 0
