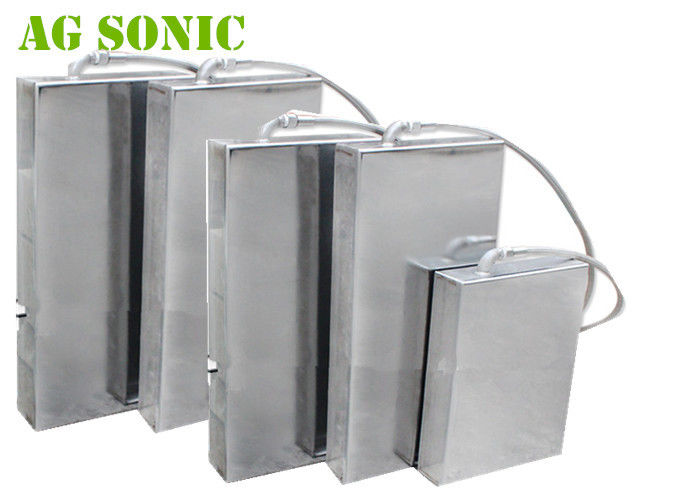

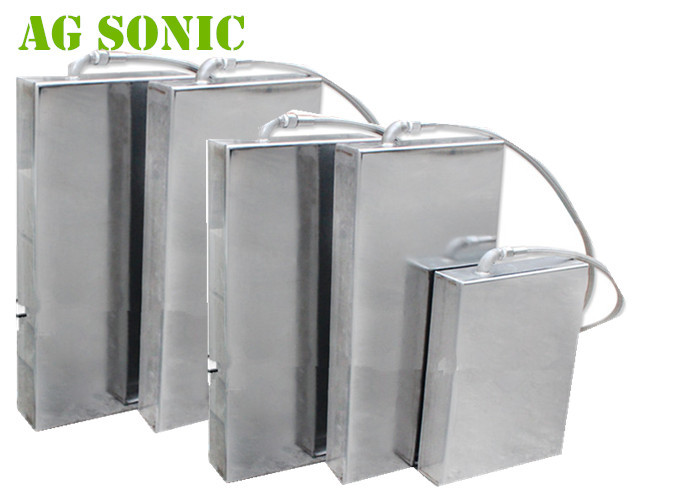

Dual Frequency Immersible Ultrasonic Transducer 40 & 20khz With Wooden Case Packing

40 & 200khz Dual Frequency Underwater Immersible Ultrasonic Transducer Generator

Application:

1. Car service: Flushing carburetors, injectors, injectors, fuel filter mesh cleaning (petrol), individual parts, assemblies, and entire blocks.
2. Medicine: Washing and polishing of optics, sterilization and cleaning of surgical instruments, vials, dental and pharmaceutical industries; cleaner reusable, molds.
3. Engineering: Cleaning of parts, pipes, wires, etc. before finishing, machining parts and components to the preservation, processing of parts after reopening, welding, grinding, polishing, cleaning strainers in the fuel and hydraulic systems, deburring parts.
4. Instrumentation: Washing and polishing of optics, precision mechanics components, integrated circuits and printed circuit boards.

Introduction:

You can design these customized submersible units into your new ultrasonic systems or retrofit them into existing systems to introduce ultrasonic precision cleaning. The cleaning load of your parts tank will determine the number and placement of the submersible transducers, which are available in custom sizes, wattage, and frequencies — including 25 kHz, 40 kHz, 58 kHz, 132 kHz, 192 kHz, 470 kHz, and 1000 kHz — as well as custom combinations including 20/40 kHz and 58/192 kHz. They can be mounted on either the sides or bottoms of the cleaning tanks, depending upon their geometry.

By using a AG modular submersible ultrasonic transducer, you ensure easy servicing, because each one can be easily replaced in minutes thanks to our flexible mounting schemes. You can also move our immersible transducers from tank to tank, or reposition them on tanks as required for special situations and needs. And you can rack-mount a series of AG immersibles so that they can be installed and/or removed as a group to speed up tank cleanings, inspections, and maintenance.

Call to learn more about our customized flexible, hand pipe, and bulkhead ultrasonic immersible transducers.

For effective cleaning the ultrasonic cleaning machine must use the right of cleaning chemistry, operate at the right temperature and use the correct frequency, the part to be cleaned the contaminant to be removed and the degree of soil, determine this, our years of experience advising manufacturing and maintenance clients on the right process for their cleaning needs help us identify the exact product combo that you need, just send AG SONIC email or call us, and we’ll guide you to the right solution quickly

Specifications:

AGsonic immersible ultrasonic transducer box-embedded in your existing tank.

good quality-custom made size-chemicals resistance-moveable-convenient install

AG series immersible ultrasonic transducer system includes transducer box and generator. It can be used when the standard model ultrasonic cleaner is inapplicable in the specific working conditions, besides may have the special specification made to order. The transducer box and generator are separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank. The transducer box is moveable in the tank for more convenience. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load.

Immersible ultrasonic transducer units can be installed in the tank by three ways:side and/or bottom mounted or top mounted depending on the tank geometry.. The specification of transducer boxes are available for custom made.

FAQ:

Q: What frequency is better for my parts?

A: Frequency is suggested based on pollutants in the objects.

28kHz frequency is stronger, better for car/motor/truck/vessel parts clean (remove oils, grease, pastes, etc. )

40kHz is better for pcb boards, electronic parts, etc.

Higher precision goods, higher frequency.

Q: Can ultrasonic cleaning damage parts?

A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.

No damage to your daily objects.

Ultrasonic Cleaning Effect :
