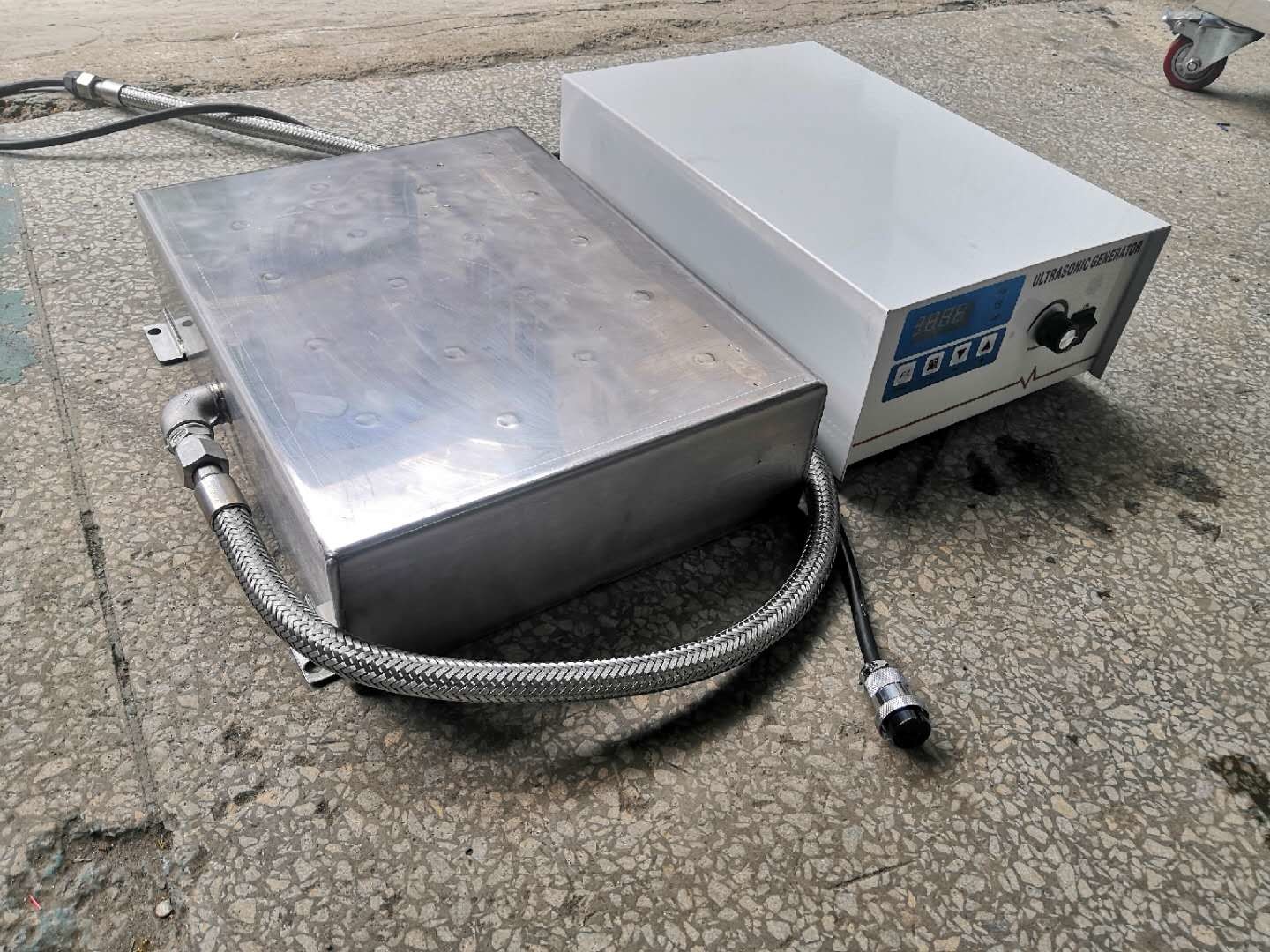

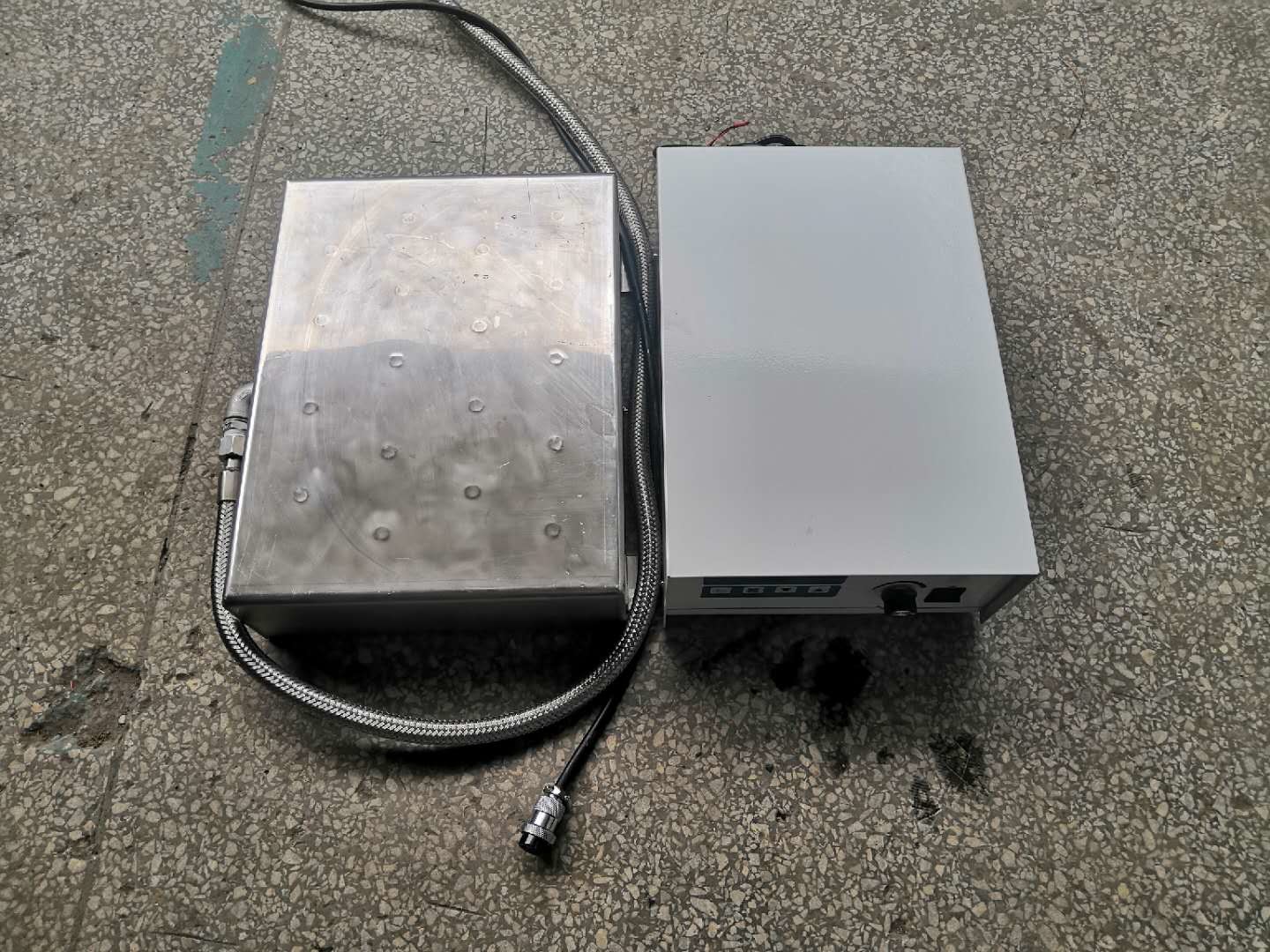

Adjustable Power Immersible Ultrasonic Transducer 1800W For Large Mould Parts

Basic Information
Place of Origin: China
Brand Name: AGSONIC
Certification: CE
Model Number: TZ-36
Minimum Order Quantity: 1UNIT
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs / Month
Material: Stainless Steel 304 / 316 Application: Used Existing Stainless Steel Tanks
Used: Large Mould Parts Name: Immersible Ultrasonic Power Transducer
Ultrasonic Power: 1800W Frequency: 40KHZ / 80KHZ /120khz
Mounted Way: Botton Or Side
High Light:

Adjustable Power Immersible Ultrasonic Transducer

,

Mould Parts Immersible Ultrasonic Transducer

,

Immersible Transducer 1800W



Immersible Ultrasonic Power Transducer Adjustable Power For Large Mould Parts

Ultrasonic cleaners Benefits and features

Powerful Ultrasonic cleaning

Engineered for optimum results, Piezo-ceramic transducer elements produce a powerful ultrasonic effect for most difficult of cleaning tasks.

Durable construction

Manufactured from high quality stainless steel, both internally and externally, the tanks are easy to maintain and keep clean.

Safe and user friendly

Tooling is simply placed into a basket and lowered in to the heated detergent, setting of time and temperature and the operation of other features is made easy by simple front panel controls. Dry run heating protection and automatic switch off bring additional safety features.

Bench top cleaners come in sizes of 40L, 60L ,80L, 100L,120L and 160L and table top cleaners come in sizes illustrated





Testing Your Ultrasonic Cleaner Machine

To determine if your ultrasonic cleaner is working properly, simply put water and properly mixed ultrasonic solution in the tank. Turn on machine and view the surface of the water.

If you see "sonic" waves your machine is working. If the surface of the water

is totally flat, your machine may have a problem with the transducer(s).

The second test is called the foil test. Simply place a small piece of aluminum foil in the bottom of a filled tank and run for 5-8 minutes. Remove foil and it should be pelted with small holes and dents. This verifies that the ultrasonic machine is working properly.



Benefits and features

Powerful Ultrasonic cleaning

Engineered for optimum results, Piezo-ceramic transducer elements produce a powerful ultrasonic effect for

most difficult of cleaning tasks.

Durable construction

Manufactured from high quality stainless steel, both internally and externally, the tanks are easy to maintain and keep clean.

Safe and user friendly

Tooling is simply placed into a basket and lowered in to the heated detergent,

setting of time and temperature and the operation of other features is made easy by simple front panel controls. Dry run heating protection and automatic switch off bring additional safety features



Immersible Transducer Generator How It Works?



Ultrasonic cleaning uses sound waves to create millions of small bubbles in a tank of cleaning solution. The parts to be cleaned are submerged in the solution and as the bubble are formed and “explode” they remove any dirt, grease, carbon etc. This method also works very well. The one disadvantage that I noticed with ultrasonic cleaning is that aluminum parts do not come out of the cleaning tank looking like new. They seem to have some discoloration to them even though they were clean. If you are going to paint the parts then this shouldn't matter.



Ultrasonic technology is powerful because:
a. Sound waves created by transducers are passed through the water creating vibrations that shake organic material loose from instruments
b. Microscopic bubbles succumb to pressure and implode, creating a stream of water, which when next to the surface of an instrument will push gross soils off
c. Hidden bioburden is removed from microscopic bubbles, created by the vibrations that when they encounter debris bump it free from the instrument





The ultrasonic generator

The ultrasonic generator converts a standard electrical frequency of 60 Hz into the high frequencies required in ultrasonic transmission.

The ultrasonic frequency generator plays a key role in the overall performance of the system. Earlier generator designs developed a fixed frequency signal designed to operate at the resonant frequency of the transducer system. For example, if the design frequency of the transducer was 20 kHz, the generator developed exactly a 20 kHz signal. The problem with this design is that it tends to create hot spots and standing waves in the tank bath, providing uneven cleaning in different tank areas.

The development of sweep frequency generators eliminated these problems. In most any ultrasonic cleaning system, there are multiple transducers that make up the transducer system. Due to manufacturing tolerances, it is highly unlikely that each transducer will have exactly the same resonant frequency. With a fixed frequency generator, the transducers that are closest in resonant frequency will operate the most efficiently in their respective areas, creating an uneven cavitation pattern. By sweeping the frequency just slightly above and below the center frequency, all transducers see their resonant frequency at the rate of sweep and maximum efficiency occurs, eliminating hot spots. Sweep frequency also eliminates standing waves from occurring by repeatedly overlapping the wavelength.

Many ultrasonic generators also have “autofollow” circuitry. Autofollow circuitry is designed to maintain the center frequency when the ultrasonic tank is subject to varying load conditions. When parts are placed in the tank or when the water level changes, the load on the generator changes. With autofollow circuitry, the generator matches electrically with the mechanical load, providing optimum output at all times to the ultrasonic tank.



Ultrasonic Tank And Transducer Installation

Ultrasonic tanks are generally rectangular and can be manufactured in just about any size. Transducers are usually placed in the bottom or on the sides, or sometimes both when watt density (watts/gal) is a concern. The transducers can be welded directly into the tank, or watertight immersible units can be placed directly into the aqueous solution. In some instances, the immersibles may be mounted at the top of the tank facing down. For applications such as strip cleaning, one immersible is placed on the top and one on the bottom with minimal distance between them. The strip is then run through the very hard energy field. A tank should be sturdy in construction, ranging from 11-14 gauge in thickness. Larger, heavy-duty industrial tanks should be 11-12 gauge and should contain the proper stiffeners for support due to the weight of the solution.

Specifications:

Model Material Transducers Estimated volume Box size Cable
lead-out
Ultrasonic frequency Ultrasonic power
(mm) (pcs) (L) (mm)   (kHz) (W)
TZ-1003 SUS304/SUS316L 3 15 250x150x100 Rigid tube/
Flexible tube
28/40 150
TZ-1006 6 30 305x250x100 300
TZ-1012 12 60 355x250x100 600
TZ-1018 18 90 406x305x100 900
TZ-1024 24 120 500x355x100 1200
TZ-1030 30 150 550x406x100 1500
TZ-1036 36 180 500x460x100 1800



 Adjustable Power Immersible Ultrasonic Transducer 1800W For Large Mould Parts 0
