| Place of Origin: | China |
|---|---|
| Brand Name: | AG SONIC |
| Certification: | CE |
| Model Number: | TB-200 |
| Minimum Order Quantity: | 1pcs |
| Price: | negotiation |
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 3 working days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 3000pcs/month |
| Tank Capacity: | 4L | Tank Size: | 300x150x100mm |
|---|---|---|---|
| Ultrasonic Power: | 200W | Heating Power: | 300W |
| SUS Basket: | 1pcs | SUS Lid: | 1pcs |
| Packing: | Carton | Warranty: | 1year |
| High Light: | lab ultrasonic cleaner,benchtop ultrasonic cleaner |
||

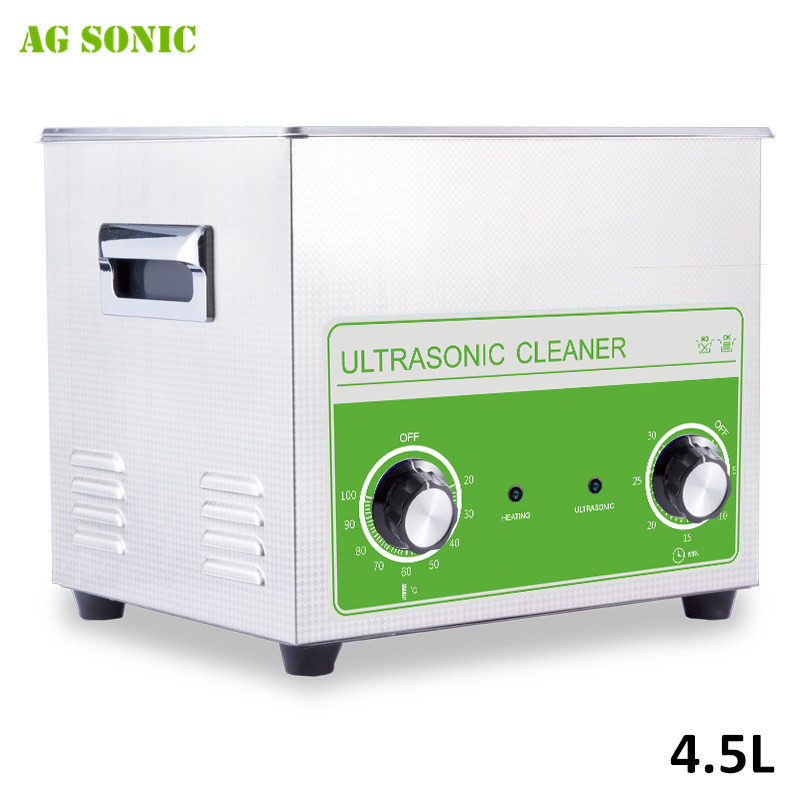

4L 180W Laboratory Ultrasonic Cleaner , Acid - Proof Mini Ultrasonic Cleaner
Brief introduction of the laboratory ultrasonic cleaner:
Ultrasound - the technology that satisfies every cleaning task
Ultrasonic cleaning is one of the most modern processes today that particularly effectively and efficiently removes dirt and other contamination in the shortest time and without damage from many different products to be cleaned.
With the AGsonic series, we have developed powerful ultrasonic cleaners that are available as different models for our customers for different applications.
All AGsonic units have a case made of stainless steel that is robust on the one hand and on the other hand can be cleaned and disinfected easily. Thanks to a wide range of accessories and appropriate machine functions, the individual machine series are ideally designed for the individual sectors.
The technology is future-oriented and is continuously improved. Quality is the top priority at AG.
Application:
| Healthcare | Dental and surgical instruments, optical, podiatry, general practice, hospitals, medical components |
| Manufacturing: | Aerospace, pharmaceutical, defence, medical devices and orthopaedic implants, automotive, marine, filtration, moulding, food and beverage, plating & surface finishing, semi-conductors, printing technology and equipment. |
| Maintenance | Automotive servicing, jewellery & watches, tools, weapons, Heat exchangers, oil & gas, commercial coffee boiler |
| Laboratory | Scientific Research, Mixing, Cell Disruption, extraction, pharmaceutical Sonochemistry |
| Others | window blind, golf club, tattoo equipment, anilox roller, music equipment, weapons, electronics, etc. |
Features:
1. Ultrasonic power: 0-100% adjustable
2. Time setting: 0-30min or 24 hours continuous working
3. Heating: 20-80℃ adjustable
4: Ultrasonic frequency: 28 kHz or 40 kHz
5: Material: 2mm thickness SUS304 tank for acid-proof.
6: Improved PCB design for stable and durable industrial use
7: More strong and uniform ultrasonic wave
8: With free lid and stainless steel SUS304 basket
Other models for your choice:
| Model | Tank size | Unit size | Volume | Ultrasonic power | Ultrasonic frequency | Heating power | Timer | Heating temperature |
| LxWxH(mm) | LxWxH(mm) | (L) | (W) | (kHz) | (W) | (MIN) | (℃) | |
| TB-50 | 150x135x100 | 175x160x210 | 2 | 60 | 40 | 150 | 1-30 | 0-80 |
| TB-100 | 240x135x100 | 265x165x220 | 3.2 | 120 | 150 | |||
| TB-150A | 300x150x100 | 325x180x225 | 4.5 | 180 | 300 | |||
| TB-150B | 300x150x150 | 325x180x280 | 6.5 | 180 | 300 | |||
| TB-200 | 300x240x150 | 325x265x280 | 10.8 | 240 | 450 | |||
| TB-300 | 330x300x150 | 360x325x285 | 15 | 360 | 450 | |||
| TB-400 | 500x300x150 | 530x325x285 | 22 | 480 | 600 | |||
| TB-500 | 500x300x200 | 530x325x325 | 30 | 600 | 600 |
FAQ:

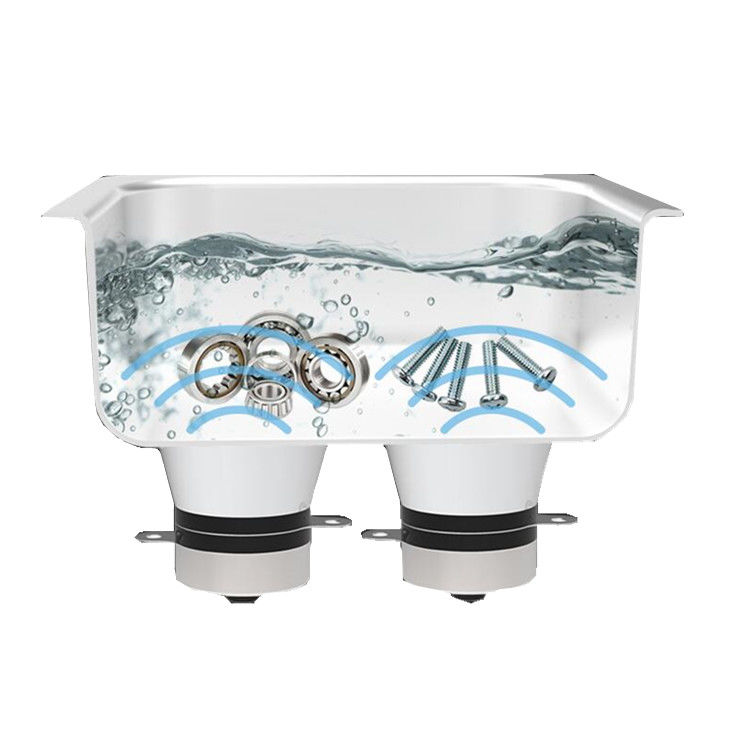

A: When cavitation happens near a dirty object, the vacuum action produced by those million of bubbles constantly imploding creates a tiny pressure wave that reaches deep into every nook and cranny of even the most delicate items. This tiny pressure wave dislodges and breaks up the dirt and other contaminants and gently lifts it away. The result is very fast and effective cleaning.
A: Delivering and using clean parts is not always obvious. Certainly, no one wants to handle a dirty part or install it into a critical machine, but dirt, debris and contaminants can cause problems for manufacturers and end users. From the merely frustrating to catastrophic, dirty parts can cause critical components to exceed tolerances and even fail damaging valuable equipment and property while contamination (everything from grease, oil and chemicals to viruses and bacteria) can seriously harm users.
A: Non-directional cleaning - clean where the sound and solution go
Reduced or eliminated need for disassembly
Consistent results - non-operator dependent
Non-contact cleaning - only the soil is removed, not the substrate
High efficiency - cleaning multiple parts at one time
