Cleaning Metal Kitchen Soak Tanks Automated Lifting System For Basket 230 / 350 Litre

Basic Information
Place of Origin: China
Brand Name: Agsonic
Certification: CE
Model Number: AG-230
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10-20days
Supply Ability: 100pcs/month
Material: Sus304/316 Tank Size: Customized
Heating Power: Adjust Heater: 20-80℃ Adjustable
Basket: Layered Design For Different Cleaning Sovent Recycle: Move Oil
High Light:

heated dip tank

,

stainless steel soak tank

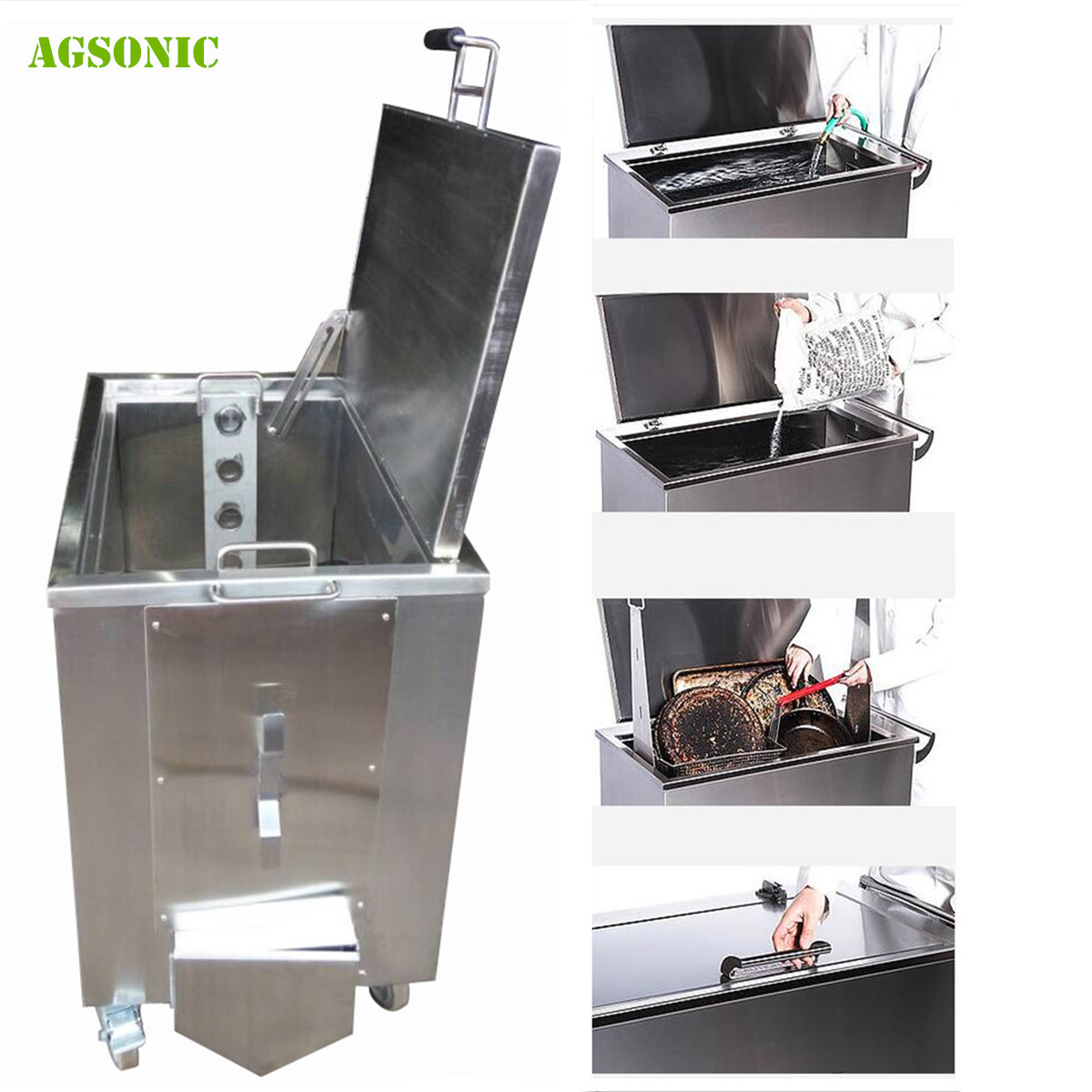

Cleaning Metal Kitchen Utensils Soaking Tank Automated Lifting System For The Basket 230 Litre / 350 Litre



Application:

  1. Clean dish, tray, oven pan, etc. used in kitchen ,hotel ,restaurant
  2. Features:

Tank :1. These are all double walled and insulated. The tank material : sus 304



Lid: 2. will have a lockable lid when open or shut similar to the photos.



Basket:3. Basket can be able to remove from the tank and have a number of lift points in

the inside of the tank, as it can get heavy with kitchen equipment



Wheel:4. For wheels we will design to provide heavy duty lockable castor wheels ,so hold the caster wheel from moving and ease moving during cleaning time



Benefits

One person operation with hand held control

Load bearing of 260 kg

OH&S compliant, making the workpalce safer

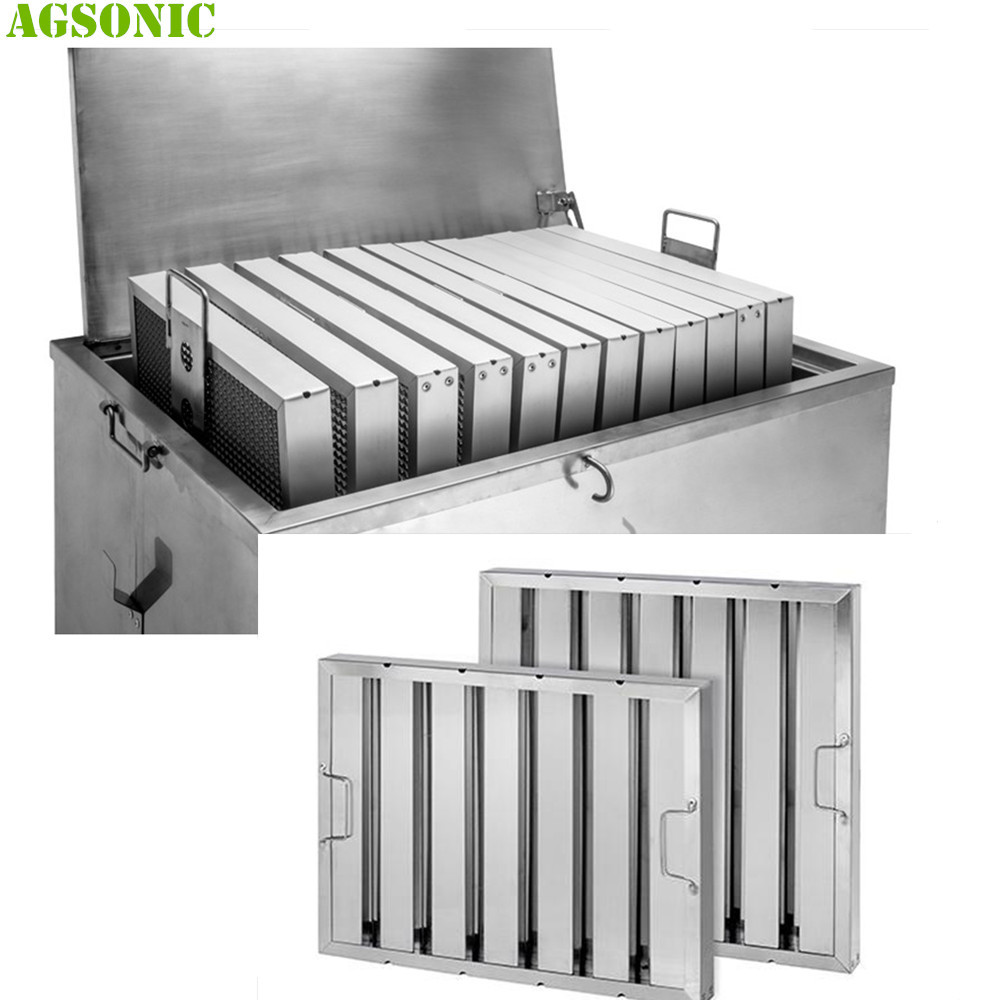

Easily load up to 15 range hood filters

Neoprene seal under the lid keeping the heat in and reducing power costs.

Food grade stainless steel with a double insulated frame allowing for temperature adjustments.



Safety features

Gas strut lid, making opening and closing safer

Heavy duty lockable castors

Automatic overload cut off

Limit switch



Specifications:

Model Volume Tank size (mm) Unit Size (mm) Basket size (mm)
TS-168 168L 655*410*625 755*510*785 605*390*595
TS-211 211L 750*450*625 850*550*785 700*430*595
TS-258 258L 890*480*605 990*580*800 840*460*575
TS-274 274L 840*480*680 940*580*875 790*460*650
TS-388 388L; 1080*460*680 1480*560*875 1060*440*650
TS-483 483L 1365*520*680 1465*620*875 1315*500*650



Small tank: suitable for canopy fitlers, grill tops, pans and small trays.

Medium tank(popular size): suitable for busy medium sized pans and large trays & oven racks.

Large tank: suitable for greasy filters, pots, baking trays, etc,

From 10 gallons to 90 gallons We also offer custom sizes for larger applications.

Different tank size is available,We also offer custom sizes for larger applications.





Operation

Drain Down Regular Floor Drain

Screw the Adaptor into the ball valve.

Connect the hose to the adaptor.Place the end of the hose into the floor drain.

Open the valve slowly.

When the solution has drained, remove the basket and clean in the sink.Collect any sludge that accumulates in the trough at the bottom of the unit.Rinse the inside of the unit with clean water until it is thoroughly clean.

Close the ball valve.

Replace the basket.

Fill the unit with clean fresh water (preferably hot) to the -H2O- fill line.

Add the appropriate number of boxes of CarbonZyme by spreading evenly.

Plug the unit in and switch on!



Our soak tank can effectively clean virtually any items in your kitchen, including, but not limited to:

This system ensures that your kitchen items will always come out clean and shining-bright at the start of every day.

Soak Tank Service Program



Say Goodbye To Difficult Cleaning

Are you tired of wasting labor on hard-to-clean kitchen items such as utensils, racks, grates, pans, pots, and hood filters? Thankfully, our fully certified and experienced technicians have come up with a way to resolve this! Our Soak Tank Service Program offers a solution that’s specifically designed for soaking those hard-to-clean kitchen utensils and dishware. Simply place your dirty kitchen items in the soak tank overnight, remove them in the morning, and rinse.



Soak Tank Detail

Large Tank Commercial Stainless Steel Soaking Tank With Lift Degreaser Cleaning Cookware Oven Racks 388L

A KITCHEN SOAK TANK WILL:



Large Tank Commercial Stainless Steel Soaking Tank With Lift Degreaser Cleaning Cookware Oven Racks 388L

Ellcent Cleaning effect :

Large Tank Commercial Stainless Steel Soaking Tank With Lift Degreaser Cleaning Cookware Oven Racks 388L
