Tank Size: | 600x450x400mmmm | Tank Capacity: | 108L |
---|---|---|---|
Frequency: | 40khz | Accessory: | Lid, Basket, Power Cord |
Control: | External Generator, More Stable | Packing: | Wooden Case |
High Light: | Needles Medical Ultrasonic Cleaner,Medical Ultrasonic Cleaner 108L,2 Rinsing Tank Ultrasonic Washing machine |

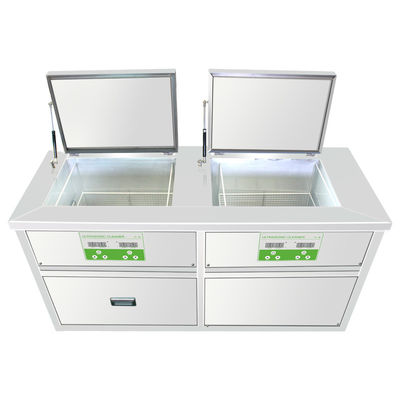

Needles Medical Parts Cleaning Equipment 3 Ultrasonic Washing 40 Khz 2 Rinsing With Filtering With Drying Tank Cleaning
Hospitals and other medical facilities contain a wide variety of tools and equipment that must be maintained in a completely sanitary or sterile condition. This is a critically important factor not only for patient wellness and recovery, but for the safety of both the patients and staff. While maintaining such environments has always been challenging, incomplete or improper cleaning can result in residual contamination leaving patients and staff exposed to viruses, bacteria, and other pathogens (such as MRSA). In recent years this has become a critical healthcare issue.
Specifications:
Model | T-3048G | T-3072G | T-3144G |
Ultrasonic Tank Dimension(mm) | 550X400X350 | 600X500X450 | 1000X600X600 |
Rinsing tank dimension(mm) | 550X400X350 | 600X500X450 | 1000X600X600 |
Drying tank dimension(mm) | 550X400X350 | 600X500X450 | 1000X600X600 |
Max. Capacity | 77L/tank | 135L/tank | 360L/tank |
Construction Case | SUS304 (Mirror shining image available) | ||
Construnction Tank | SUS304 | ||
Transducer Number | 48pcs | 72pcs | 144pcs |
Ultrasonic power(Max.) | 2400W | 3600W | 7200W |
Ultrasonic frequency | 40kHz | 40kHz | 40kHz |
Temperature range | 20~80C adjustable | ||
Heating power | 6KW | 12KW | 24KW |
Timer | 1~99h | 1~99h | 1~99h |
Drain | 3/4" Valve | ||
Lid & Basket | Available, material: SUS304 | ||
Cleaning Tank voltage | AC220V/AC380V 3phase | ||
Generator Voltage | AC110V / 220V 1phase | ||
Features | With triple tanks for cleaning and rinsing. With filtration system Multi-direction castors with brake; 1 year warranty |
Medical Ultrasonic Cleaners are designed for cannulated and non-cannulated instrument cleaning. Prior to sterilization, there is no better method in use to reach small crevices and thoroughly clean vital laboratory parts and appliances The irrigation system uses automatic flow controls that insures the correct pressure is being used in the cannulated instruments without any adjustments needed from the operator. Whether the tray has one robotic instruments, or twelve, this system can provide the correct orifice pressure. This protects the instruments from over or under-pressure damage, while also garunteeing a clean part everytime.
Medical Ultrasonic Cleaner
Effective sterilization requires effective Medical Ultrasonic Cleaner and when it comes to cleaning reusable instruments and equipment, our equipment & detergents meets the most demanding criteria. Our industrial ultrasonic cleaners are used to assist with the cleaning of instruments that cannot be adequately cleaned manually such as spiral wound instruments like biopsy forceps etc. The ultrasonic vibration at the frequency used for cleaning does not kill microorganisms and infective aerosols may be produced.Ultrasonic cleaners work by subjecting instruments to high frequency, high-energy sound waves. This causes the soil to be dislodged from instruments and drop to the bottom of the tank, or be sufficiently loosened that it will be removed during the rinsing process. The detergent used in the ultrasonic tank must be carefully selected in accordance with advice from the tank's manufacturer. Optimally it will be a neutral, low-foaming product and enzymatic cleaners will have enhanced benefits in this process.
Digital Medical Ultrasonic Cleaner
Our digital series of medical ultrasonic cleaner is eqquiped with LED digital readouts of timer as well as temperature controller. The machines comes with micro-processor based ultrasonic generator which is installed within the cleaning machines thereby saving a lot of space and making it a benchtop cleaning applicaion machines.
Our digital medical ultrasonic cleaner holds upto- 25-30 liers of water capcity and can Clean all types of surgical instuments within 3-5 minutes of applications. The machine is very handy and easy to operate and come with a stainless steel mesh basket. We use SS body for all our machines makes.
Digital Medical ultrasonic cleaner is used in CSSD units, clinics, hospitals OTs , laboratories and other places.
Request
Additional Information:
Hospital Ultrasonic Cleaner
We are one of the leading manufacturers,suppliers and exporters of hospital and medical ultrasonic cleaning machines. We have our standard 30 Lites Ultrasonic Cleaner which has 600 Watts of ultrasonic power. it comes with digital temperature controller as well as digital timer.
The digital timer is adjustable for 16 hours of continuous running of the machine whereas the digital temperature controller can be used to set the temperature of the liquid from 0-80 deg cel.
The machine comes with one baset, extra fuses and a separate solid state ultrasonic generator.
