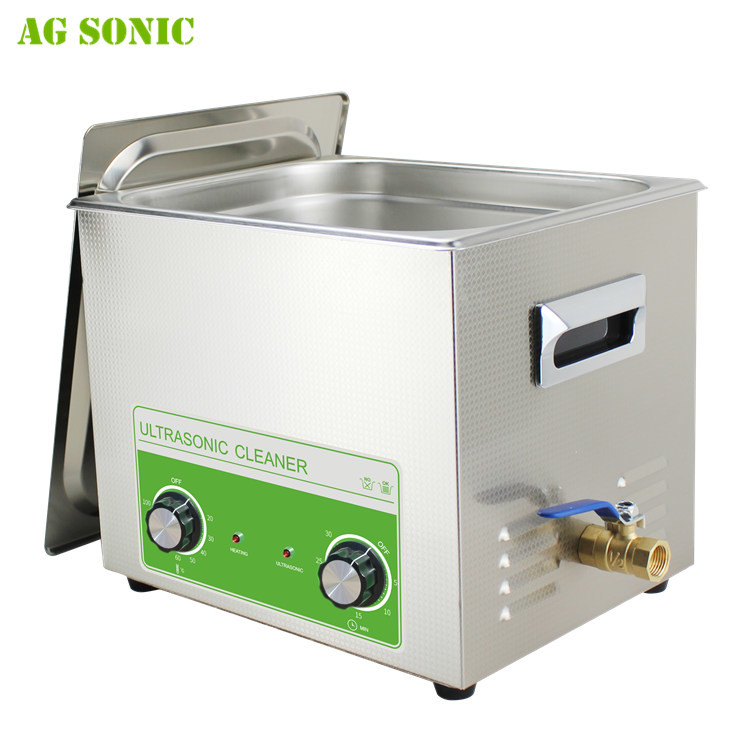

180W 6.5L Ultrasonic Circuit Board Cleaner SUS304 Mechanical Knob

Basic Information
Place of Origin: China
Brand Name: AG SONIC
Certification: CE
Model Number: AG-03A
Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: 1pcs/carton
Delivery Time: 3 working days
Payment Terms: T/T, Paypal
Supply Ability: 3000pcs/month
Application: PCB, Electronic Parts Cleaning Tank Material: SUS304
Tank Size: 240x135x100mm Unit Size: 265x165x220mm
Name: Ultrasonic Circuit Board Cleaner Tank: 6.5L
High Light:

6.5L Ultrasonic Circuit Board Cleaner

,

180W Ultrasonic Circuit Board Cleaner

,

FCC SUS304 Ultrasound Cleaning Machine



Mechanical knob ultrasound cleaning machine with timer & heater 3.2L ultrasonic cleaner jewellery



Tank size of the model AG-03A is 240x135x100mm, pls confirm if the tank size is suitable for your cleaning objects first. If not, we have other models for your choice and you can directly ask our salesman.

The machine is with mechanical timer and heater, and if you don't like it, we have digital models for your choice.

If you have different parts to clean and have special reques, we have power adjustable models and dual frequency models also.


Ultrasonic cleaning is a method based on high-frequency sound waves which when traveling into a solution, create oscillating high and low pressure and consequently, cause the rapid formation and imploding bubbles radiate tremendous amounts of ultrasonic energy and shock waves that penetrate into minute crevices to take off dirts or contaminants in a highly effective way.

Mechanical models:

Model Tank size Unit size Volume Ultrasonic power Ultrasonic frequency Heating power Timer Heating temperature
LxWxH(mm) LxWxH(mm) (L) (W) (kHz) (W) (MIN) ()
AG-02A 150x135x100 175x160x210 2 60 40 150 1-30 0-80

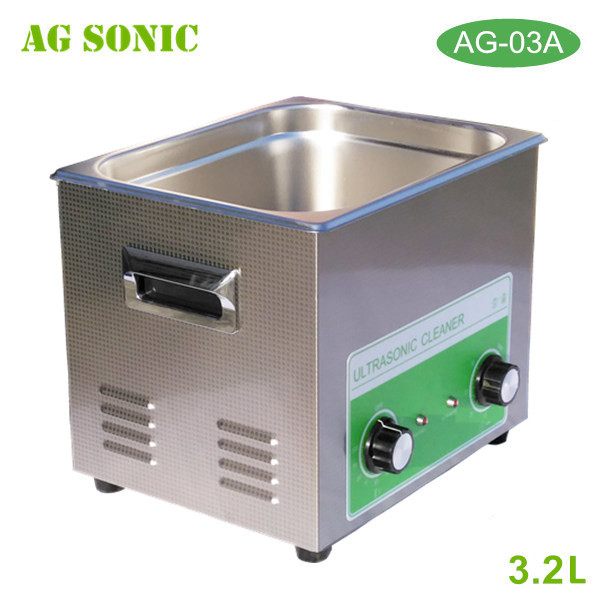

AG-03A 240x135x100 265x165x220 3.2 120 150
AG-04A 300x150x100 325x180x225 4.5 180 300
AG-06A 300x150x150 325x180x280 6.5 180 300
AG-10A 300x240x150 325x265x280 10.8 240 450
AG-15A 330x300x150 360x325x285 15 360 450
AG-22A 500x300x150 530x325x285 22 480 600
AG-30A 500x300x200 530x325x325 30 600 600





Digital models:

Model Tank size Unit size Volume Ultrasonic power Ultrasonic frequency Heating power Timer Heating temperature
LxWxH(mm) LxWxH(mm) (L) (W) (kHz) (W) (MIN) ()
AG-02D 150x135x100 175x160x210 2 60 40 150 1-30 0-80
AG-03D 240x135x100 265x165x220 3.2 120 150
AG-04D 300x150x100 325x180x225 4.5 180 300
AG-06D 300x150x150 325x180x280 6.5 180 300
AG-10D 300x240x150 325x265x280 10.8 240 450
AG-15D 330x300x150 360x325x285 15 360 450
AG-22D 500x300x150 530x325x285 22 480 600
AG-30D 500x300x200 530x325x325 30 600 600



Applications:

Aerospace, Marine, Railway, Automotive, Food and Beverage industry, Mining enterprise, Medical Devices, Molding, Electronic industry (PCB, clock parts etc.), Pharmaceutical Industry, Pneumatic Tools, Grinding and Polishing Shops, Optical and Glass Industry, Transport Technology and Precision Mechanics.



Features:

1. Ultrasonic power: 0-100% adjustable

2. Time setting: 0-30min or 24 hours continuous working

3. Heating: 20-80℃ adjustable

4: Ultrasonic frequency: 28 kHz or 40 kHz

5: Material: 2mm thickness SUS304 tank for acid-proof.

6: Improved PCB design for stable and durable industrial use

7: More strong and uniform ultrasonic wave

8: With free lid and stainless steel SUS304 basket



FAQ:

Q: What cleaning solution should I use?

A: Advanced cleaning solutions are made up of a variety of detergents, wetting agents and other reactive components. A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.



Q: Can ultrasonic cleaning damage parts?

A: Ultrasonic can't damage parts.

Ultrasonic cleaning is considered safe for most parts, although in some cases it is necessary to observe caution. Although the effects of thousands of implosions per second is very powerful, the cleaning process is safe.



Q.: What are the advantages of ultrasound over traditional cleaning methods?

A.: Compared with traditional methods of ultrasonic cleaning allows you to:

· minimize the use of manual labor

· make cleaning and degreasing without the use of organic solvents

· clean hard to reach areas of products and remove all types of dirt

· shorten the processes such as extraction, dispersion, purification, chemical reactions

· eliminates costly mechanical and chemical cleaning of heat exchangers

Q: What is the duration of time cleaning?
A.: Cleaning time will vary, depending on factors such as soil, solution, the degree of cleanliness



Q.: What is the purpose of the unit heater?
A.: The primary purpose of the unit heater is to maintain the solution temperature between cleaning cycles. The tremendous energy released by cavitation generates heat for cleaning.



mechanical knob ultrasound cleaning machine

180W 6.5L Ultrasonic Circuit Board Cleaner SUS304 Mechanical Knob 0

 180W 6.5L Ultrasonic Circuit Board Cleaner SUS304 Mechanical Knob 1
