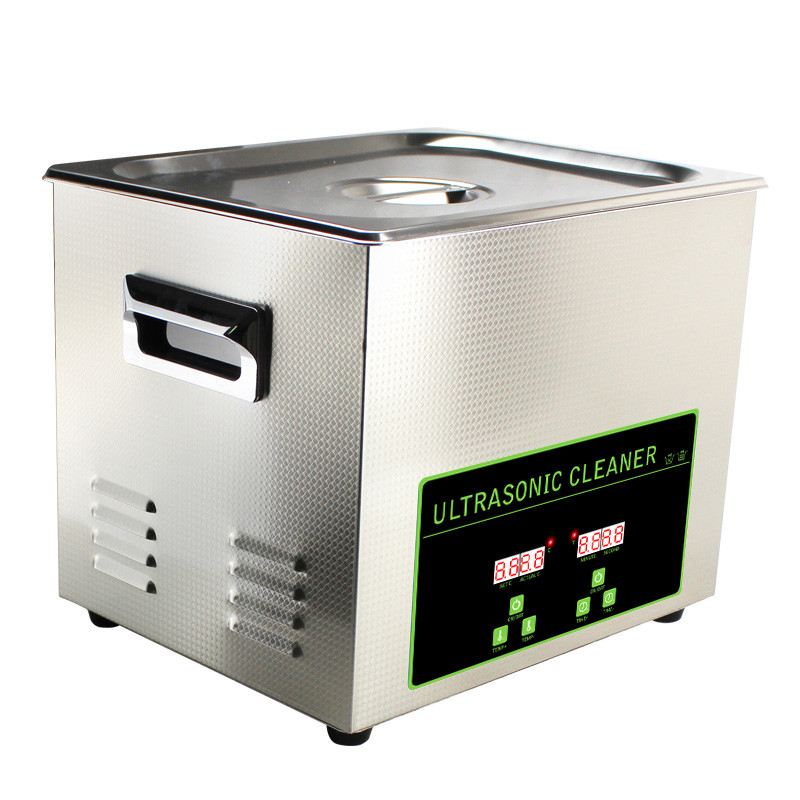

Surgical Instrument Sterilizer Medical Ultrasonic Cleaner , Industrial Ultrasonic Washer

Basic Information
Place of Origin: China
Brand Name: AGSONIC
Certification: CE
Model Number: TB-200
Minimum Order Quantity: 1UNIT
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs / Month
Material: Stainless Steel 304 Application: Surgical Instrument Sterilizer
Option: Medical Ultrasonic Cleaner Frequency:: 40KHz
Timer:: 1-30Minutes Voltage:: 110/220V
Tank Capacity:: 10L Cleaning Type: Degreaser
High Light:

Surgical Instrument Medical Ultrasonic Cleaner

,

10L Industrial Ultrasonic Washer

,

surgical sterilizer medical ultrasonic cleaner

Surgical Instrument Sterilizer Medical Ultrasonic Cleaner , Industrial Ultrasonic Washer





Medical Ultrasonic Cleaner



Effective sterilization requires effective Medical Ultrasonic Cleaner and when it comes to cleaning reusable instruments and equipment, our equipment & detergents meets the most demanding criteria. Our industrial ultrasonic cleaners are used to assist with the cleaning of instruments that cannot be adequately cleaned manually such as spiral wound instruments like biopsy forceps etc. The ultrasonic vibration at the frequency used for cleaning does not kill microorganisms and infective aerosols may be produced.

Ultrasonic cleaners work by subjecting instruments to high frequency, high-energy sound waves. This causes the soil to be dislodged from instruments and drop to the bottom of the tank, or be sufficiently loosened that it will be removed during the rinsing process. The detergent used in the ultrasonic tank must be carefully selected in accordance with advice from the tank's manufacturer. Optimally it will be a neutral, low-foaming product and enzymatic cleaners will have enhanced benefits in this process.



Why is Ultrasonic Cleaning so Efficient and Effective?

When cavitation happens near a dirty object, the vacuum action produced by those million of bubbles constantly imploding creates a tiny pressure wave that reaches deep into every nook and cranny of even the most delicate items. This tiny pressure wave dislodges and breaks up the dirt and other contaminants and gently lifts it away. The result is very fast and effective cleaning.

How AGSONIC Ultrasonic Machines Create Cavitation

To create cavitation, AGSONIC Ultrasonic Cleaning Systems use our state-of-the-art Prowave™ Digital Generators to power electro-mechanical transducers that are submerged in a tank of hot water. These generators activate the transducers which then vibrate very quickly. This vibration sends sound waves through the water at frequencies ranging from 25 to 40kHz which produces cavitation.



Ultrasonic Pipette Cleaners .

Ultrasonic Pipette Cleaners are designed to clean pipettes and other tubular glass-ware. Lipid, blood, and proteins are easily removed from the capillary bore of the pipette through the caviation process. The stainless steel tank has no corner welds or other dirt catching surfaces and is provided with a bottom mounted drain. High efficiency industrial piezoelectric transducers are attached to the tank bottom. They are available with or without a heater as well as in 115V or 230V.



Applications: Medical and scientific labs, Cleaning metal and plastic machine parts, Electronic components



Ultrasonic Sonifier Cell Disruptors .



Ultrasonic Sonifier Cell Disruptors are designed to bring the industry’s most advanced sample-processing capabilities to your laboratory. They are geared toward low-volume samples ranging from 0.2 to 500 mL. These Sonifier Cell Disruptors deliver up to 550 watts of power. They are quiet enough to operate on a lab bench without a sound enclosure. They are available with either a conventional or a handheld converter and can be used in a stack configuration to process longer-duration samples, or process samples quickly by hand using the comfortable, ergonomically-designed handheld converter. Some of the features are:



Handheld Converter - Offers an ergonomic grip for comfort and control, and a recessed push button and LED indicator for assured operation



Energy Mode - Manages the processing cycle to deliver a precise, user-determined input of ultrasonic energy (measured in joules), either continuously or in individual pulses. They automatically compensates for any variability, extending or shortening the cycle as needed to deliver the precise energy output

Process Monitoring - Monitors ongoing processes on a scrollable, digital screen, providing continuous updates of key variables including power level, energy usage, sample temperature, and experiment progress

Sample-Processing Programs - Enables users to create and store up to 20 sample processing programs. Program parameters include continuous or pulsed ultrasonics; time, energy, or temperature control modes; pulse on-time/energy, off-time and total on-time/energy; or amplitude as a percentage



Why Use Ultrasonic Cleaning?

Professionals in the dental, lab and medical fields use ultrasonic systems to clean instruments, apparatus, labware, crowns, dentures and other devices prior to sterilization. Ultrasonic cleaning greatly reduces the risk of cross-contamination and infection that can occur with manual cleaning. This procedure is critical in protecting instruments against hand contact and is at the center of infection risk control

Medical Industry

Pharmaceutical

The Pharmaceutical Industry has a requirement for a precise clean when it comes to dyes that are used in the manufacture of tablets. As these dyes are extremely expensive and sensitive items the less manual handling which happens to the item increases the lifespan of it. Historically the process has been a manual one which is very time consuming and labour intensive. There are three major drawbacks and these are:

1. A lack of consistency of clean

2. Manual process subject to damage

3. Costly



Ultrasonics WILL; reduce the manual process which increases the lifespan of the items; it improves the consistency of the cleanliness and is one of the lease time consuming methods for cleaning.

Industrial Ultrasonics have a selection of ideal standard ultrasonic cleaners such as the Mobile ultrasonic cleaner, with weirs, which would best suit this application.



If these do not fit your requirements Industrial Ultrasonics will create a custom unit to fit your requirements



Dental

Ultrasonics is ideal for cleaning complex components. With its unique ability ultrasonics will remove contamination and sterilise any dental equipment quickly and effectively.



Optical

Ultrasonics is ideal for cleaning complex components. With its unique ability ultrasonics will remove all the contamination of lenses without damage. We at Industrial Ultrasonics regularly clean our glasses and sunglasses in the ultrasonics.



It only takes seconds to completely remove oil and dirt which has built up. Ultrasonics can be used for all forms of optical devices and optical device manufacturing.





Instrument Cleaning

Ultrasonics is ideal for cleaning complex components. With its unique ability ultrasonics will remove all the contamination from instruments used in the Medical industry. Ultrasonics cleans and sterilises far above all medical cleaning standards allowing for fast and effective cleaning every time



Device Manufacturing

The Ideal Ultrasonic Cleaners for this industry are the agsonic Powersonic Units.

Ultrasonics is ideal for cleaning complex components. With its unique ability ultrasonics will remove all the contamination from medical device components during the manufacturing process. Ultrasonics is fast and effective cleaning far above all medical cleaning standards.

Day Surgeries

Ultrasonics is ideal for cleaning complex components. With its unique ability ultrasonics will remove all the contamination from medical components during the manufacturing process. Ultrasonics is fast and effective cleaning far above all medical cleaning standards.



Ultrasonic cleaning equipment for use in the Pharmaceutical industry

Ultrawave’s ultrasonic cleaning systems are used in the Pharmaceutical manufacturing process to deliver the highest cleaning standards.



our high precision ultrasonic cleaning systems are installed and used in numerous pharmaceutical manufacturing and processing companies across the UK and Ireland.





Produce Specifications:



Features:

1. Ultrasonic power: 0-100% adjustable

2. Time setting: 0-30min or 24 hours continuous working

3. Heating: 20-80℃ adjustable

4: Ultrasonic frequency: 28 kHz or 40 kHz

5: Material: 2mm thickness SUS304 tank for acid-proof.

6: Improved PCB design for stable and durable industrial use

7: More strong and uniform ultrasonic wave

8: With free lid and stainless steel SUS304 basket



Other models for your choice:

Model Tank size Unit size Volume Actual ultrasonic power Rated ultrasonic power Ultrasonic frequency Heating power Time Heater
LxWxH(mm) LxWxH(mm) (L) (W) (W) (kHz) (W) (MIN) (℃)
TB-50 150x135x100 175x160x210 2 50 60 40 150 1-30 0-80
TB-100 240x135x100 265x165x220 3.2 100 120 150
TB-150A 300x150x100 325x180x225 4.5 150 180 300
TB-150B 300x150x150 325x180x280 6.5 150 180 300
TB-200 300x240x150 325x265x280 10.8 200 240 450
TB-300 330x300x150 360x325x285 15 300 360 450
TB-400 500x300x150 530x325x285 22 400 480 600
TB-500 500x300x200 530x325x325 30 500 600 600





Packaging & Shipping



Packing:

1 x ultrasonic cleaner

1 x SUS basket

1 x SUS lid

1 x power cord

1 x English instruction manual



Shipping:

we have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Post
You also can choose your own shipping forwarder





Ultrasonics: The ONLY Way to Clean with Confidence

Regardless of the source of the dirt or contamination, AG Ultrasonic Cleaning Systems are designed to accommodate a wide variety of uses in diverse industries. Fast, effective and efficient, our machines will allow you to clean virtually any type of part or component. The following is just a short list of the many different types of items that have been cleaned using our systems.

Almost anything made out of metal (ferrous and non-ferrous), plastic, vinyl, and wood.Surgical Instrument Sterilizer Medical Ultrasonic Cleaner , Industrial Ultrasonic Washer 0
