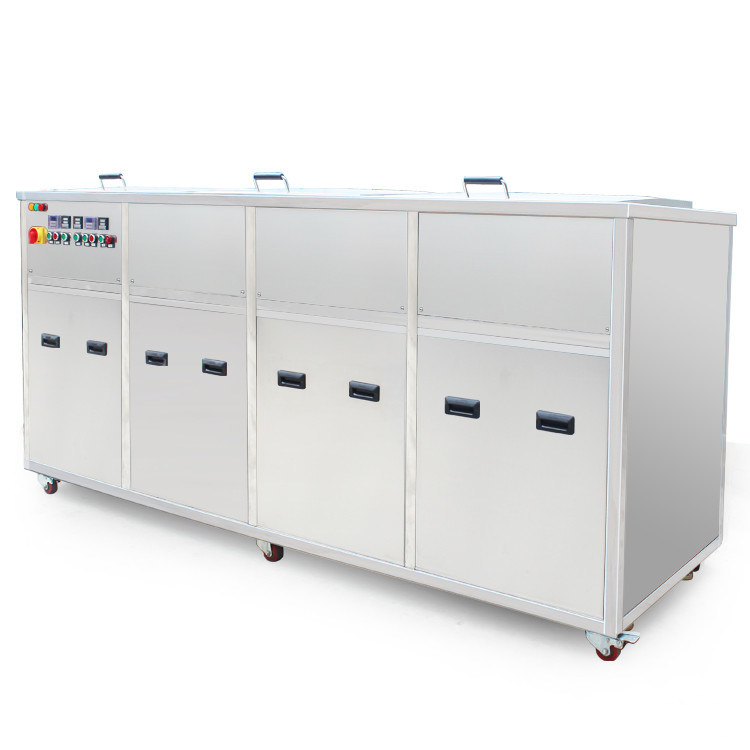

HEPA Filter Medical Ultrasonic Cleaner Rinsing Tanks Without Ultrasound Generator

Basic Information
Place of Origin: China
Brand Name: AGSONIC
Certification: CE
Model Number: T-3048G
Minimum Order Quantity: 1UNIT
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs / Month
Material: Stainless Steel 304 Application: Medical Ultrasonic Cleaning
Option: Rinsing Tank Part Clean: Laparoscopic
Timer:: 1-30Minutes Voltage:: 220V
Tank Capacity:: 77L Ultrasonic Power: 1200w
High Light:

HEPA Filter Medical Ultrasonic Cleaner


Medical Ultrasonic Cleaner 77L


Rinsing Tanks Medical Ultrasonic Cleaning Machine


Ultrasonic Rinsing Tanks Without Ultrasound Generator Hot Air Dryer Hepa Filter Medical Ultrasonic Cleaning Machine

Cleaning of Laparoscopic Instruments is difficult with mere water flodding and rinsing. It is of prime importance to make sure that the Laparoscopic instruments and Bariatric length instruments are throughly cleaned from the inside to make sure that there is no organic debree and pathogen on the instruments. Washing it with disinfectant would also require a certain contact time which is time consuming. Ultrasonic cleaning machine is a simple one step solution which would clean the instruments witin 5-10 minutes of cleaning cycle thereby ensuring the cleanliness and hygiene of the instruments. It only cleans more effectively than manual washing, but also enhances the life of the instruments and helps avoiding cross contaminations.

How effective is ultrasonic cleaning?

Through the years many studies that demonstrate the reliability and effectiveness of ultrasonic cleaning have been published. Some of these studies demonstrate the effectiveness of ultrasonic cleaning in standardizing the cleaning process and removing dried serum, whole blood, and viruses from contaminated instruments.9,11,12 Other studies have found that ultrasonic cleaners are significantly more effective and efficient than manual scrubbing,11,13 which is difficult to standardize and can vary in effectiveness from person-to-person.12 In contrast to manual scrubbing, ultrasonic cleaners are automated and standardized and designed to clean surfaces that might otherwise be inaccessible.



Healthcare Dental and surgical instruments, optical, podiatry, general practice, hospitals, medical components
Manufacturing: Aerospace, pharmaceutical, defence, medical devices and orthopaedic implants, automotive, marine, filtration, moulding, food and beverage, plating & surface finishing, semi-conductors, printing technology and equipment.
Maintenance Automotive servicing, jewellery & watches, tools, weapons, Heat exchangers, oil & gas, commercial coffee boiler
Laboratory Scientific Research, Mixing, Cell Disruption, extraction, pharmaceutical Sonochemistry
Others window blind, golf club, tattoo equipment, anilox roller, music equipment, weapons, electronics, etc.


Why is Ultrasonic Cleaning so Efficient and Effective?

When cavitation happens near a dirty object, the vacuum action produced by those million of bubbles constantly imploding creates a tiny pressure wave that reaches deep into every nook and cranny of even the most delicate items. This tiny pressure wave dislodges and breaks up the dirt and other contaminants and gently lifts it away. The result is very fast and effective cleaning.

How AGSONIC Ultrasonic Machines Create Cavitation

To create cavitation, AGSONIC Ultrasonic Cleaning Systems use our state-of-the-art Prowave™ Digital Generators to power electro-mechanical transducers that are submerged in a tank of hot water. These generators activate the transducers which then vibrate very quickly. This vibration sends sound waves through the water at frequencies ranging from 25 to 40kHz which produces cavitation.


Medical Ultrasonic Cleaner


Effective sterilization requires effective Medical Ultrasonic Cleaner and when it comes to cleaning reusable instruments and equipment, our equipment & detergents meets the most demanding criteria. Our industrial ultrasonic cleaners are used to assist with the cleaning of instruments that cannot be adequately cleaned manually such as spiral wound instruments like biopsy forceps etc. The ultrasonic vibration at the frequency used for cleaning does not kill microorganisms and infective aerosols may be produced.

Ultrasonic cleaners work by subjecting instruments to high frequency, high-energy sound waves. This causes the soil to be dislodged from instruments and drop to the bottom of the tank, or be sufficiently loosened that it will be removed during the rinsing process. The detergent used in the ultrasonic tank must be carefully selected in accordance with advice from the tank's manufacturer. Optimally it will be a neutral, low-foaming product and enzymatic cleaners will have enhanced benefits in this process..

Why Use Medical Ultrasonic Cleaning?
Professionals in the dental, lab and medical fields use ultrasonic systems to clean instruments, apparatus, labware, crowns, dentures and other devices prior to sterilization. Ultrasonic cleaning greatly reduces the risk of cross-contamination and infection that can occur with manual cleaning. This procedure is critical in protecting instruments against hand contact and is at the center of infection risk control
Medical Industry
The Pharmaceutical Industry has a requirement for a precise clean when it comes to dyes that are used in the manufacture of tablets. As these dyes are extremely expensive and sensitive items the less manual handling which happens to the item increases the lifespan of it. Historically the process has been a manual one which is very time consuming and labour intensive. There are three major drawbacks and these are:
1.A lack of consistency of clean
2.Manual process subject to damage


Brief introduction of the ultrasonic cleaning equipment:
Ultrasonic cleaner now can be widely used in many industries: car industry, diesel industry, medical industry, electric industry, etc. Any waterproof parts can be used to clean in the tank. Need more info, welcome to inquiry.

Oil skimmer can be used to not only absorb the oil but also catch the impurities.

General introduction of the industrial ultrasonic cleaner:
1st ultrasonic cleaning tank
2nd rinsing tank after rinsing(or add a second rinsing tank for thorough rinsing)
3rd hot air drying tank
If any special requirements, pls just free to contact. And experienced engineer will design the machine for you.


Every manual console includes:

  • Manually adjustable digital temperature and timing controls — Allows operator to set each independently, per wash, rinse, and dry station.
  • Smallest possible footprint — Saves space by maximizing compact design, with easy replacement of vapor degreasers.
  • 316L stainless steel tanks — For maximum wear resistance and lifespan.
  • Standard wire baskets — Available to fit inside each of our standard-size tanks.
  • Clison generators — With sweep frequency. Available in 28, 40, 80, 120, and 192 kHz frequencies, each designed for specific cleaning applications. Dual frequency 28+40khz and 40+80khz are also no problem.
  • Heated ultrasonic wash station(s) — Provides high-intensity heated ultrasonic cleaning with filtered recirculation with overflow weir to remove oil and particulate contaminants, which automatically maintains a cleaner solution.
  • Heated ultrasonic rinse station(s) — Provides two-stage, reverse flow cascade rinse with spray-over immersion, which conserves space and water usage, while maximizing rinses for spot-free drying.
  • High-efficiency recirculating hot air dryer(s) — With unique updraft air flow design to dry parts quickly with compressed air blow-off to allow speed and efficiency. (Much better drying solution than traditional ultrasonic cross-flow or convection drying.)
  • Sliding/hinged dryer cover — Promotes fast drying and protects against injury from flying particles.
  • HEPA-type filters — Removes microscopic particles during drying cycle.
  • Electrical control box — Conveniently located for easy access.




Model T-3048G T-3072G T-3144G
Ultrasonic Tank Dimension(mm) 550X400X350 600X500X450 1000X600X600
Rinsing tank dimension(mm) 550X400X350 600X500X450 1000X600X600
Drying tank dimension(mm) 550X400X350 600X500X450 1000X600X600
Max. Capacity 77L/tank 135L/tank 360L/tank
Construction Case SUS304 (Mirror shining image available)
Construnction Tank SUS304
Transducer Number 48pcs 72pcs 144pcs
Ultrasonic power(Max.) 2400W 3600W 7200W
Ultrasonic frequency 40kHz 40kHz 40kHz
Temperature range 20~80C adjustable
Heating power 6KW 12KW 24KW
Timer 1~99h 1~99h 1~99h
Drain 3/4" Valve
Lid & Basket Available, material: SUS304
Cleaning Tank voltage AC220V/AC380V 3phase
Generator Voltage AC110V / 220V 1phase
Features With triple tanks for cleaning and rinsing.
With filtration system
Multi-direction castors with brake;
1 year warranty


1. Ultrasonic power: 0-100% adjustable

2. Time setting: 0-30min or 24 hours continuous working

3. Heating: 20-80℃ adjustable

4: Ultrasonic frequency: 28 kHz or 40 kHz

5: Material: 2mm thickness SUS304 tank for acid-proof.

6: Improved PCB design for stable and durable industrial use

7: More strong and uniform ultrasonic wave

8: With free lid and stainless steel SUS304 basket



Packaging & Shipping

For 1pcs or small quantity, shipping by express/air is suggested.

For laege quantity, shipping by sea is cost-effective.

We have cooperated forwarder, welcome to ask freight.

Company Information

1. AG SONIC technology limited, which engaged in ultrasonic cleaner field for more than 10 years. And the main products are ultrasonic cleaner with different capacity.

AGSONIC are leading designers and manufacturers of ultrasonic cleaners and cleaning equipment. We have over 10 years of experience and supply industry throughout WorldWide. Our products have applications in dozens of sectors including industrial, medical and commercial.

The engineer’s choice for outstanding performance .Our patented technologies use ultrasound to remove problem contamination from all types of hard surfaces such as metals, plastics and ceramics. The power of our equipment can be harnessed to clean items of all shapes, sizes and technical complexity, penetrating holes and cavities that are impossible to reach using ordinary cleaning methods.

Our ultrasonic cleaning process is based in piezo electric transducers, which are attached to the cleaning tank. These generate ultrasound waves that vibrate the cleaning fluid – either water or a specially formulated chemical – at a very high velocity, creating a process called cavitation. Millions of tiny bubbled implode within the solution and penetrate every orifice of the item being cleaned, removing dirt and grime within seconds.
