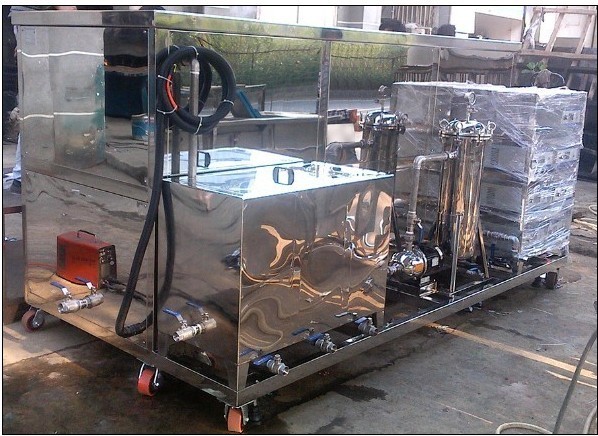

Engine Industrial Ultrasonic Washing Machine For Car Parts Truck Parts

Basic Information
Place of Origin: China
Brand Name: AGSONIC
Certification: CE
Model Number: T-72S
Minimum Order Quantity: 1UNIT
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs / Month
Material: Stainless Steel 304 Application: Car Parts Truck Parts
Option: Oil Filteration Industry: Engine Ultrasonic Cleaning
Tank Capacity: 360L Frequency: 28khz
High Light:

industrial ultrasonic parts cleaner

,

ultrasonic auto parts cleaner

Engine Industrial Ultrasonic Washing Machine For Car Parts Truck Parts





Car Engine Industrial Cleaning Machine For Car Parts Truck Parts



Auto Parts Cleaning machine

We are manufacturing and supplying of Automotive Ultrasonic Cleaners. We offer a wide range of ultrasonic cleaners. These are Single or Multistage Ultrasonic Cleaners, which are both manually operated & fully automated systems. Further, the machine is widely used and appreciated by our clients due to its professional dependability and user friendliness.

Ultrasonic Cleaning system Design:

Considerations in the design of any cleaning system include the contaminants on the part(s), the required cleanliness level, the geometry and material of the part(s), the quantity to be processed, and the previous system design and layout (if applicable). The part geometry, production rate, and cleaning time required will determine the size of the cleaning system, once the overall process has been decided



Cleanliness considerations :

In a typical aqueous ultrasonic cleaning system, it is the cleaning stage(s) that will remove or loosen the contaminants. The following rinse stage(s) remove any remaining loosened soils and residual detergent, and a dryer removes any remaining rinse water. The overall process of the system is usually determined experimentally. We have an applications lab where, through a process of experience, trial, and error, a properly designed cleaning process can be determined to meet the cleanliness levels specified. There are a variety of ways to check for cleanliness. Some are as simple as a water break test on the part to see if most oil has been removed. Others are as elaborate as surface quality monitoring that uses optically stimulated electron emission technology to measure thin films of contaminants down to the Angstrom level.

Part handling :



The geometry of the parts is carefully analyzed to determine how it will be placed in the cleaning tank. Large parts, such as engine blocks, can be suspended directly from a hoist, whereas smaller parts will usually be placed in a basket. The most important factor in parts placement is to be sure that air is not trapped anywhere inside the part. If an air pocket is allowed to form, such as in a blind hole that would be facing downward toward the bottom of the tank, the cleaning solution and effects of cavitations will not be able to reach this particular area. The part will have to be rotated somehow in the tank during the cleaning process to allow the cleaning solution to reach the area where air was previously trapped. This can be accomplished either manually, by the attending operator, or by a rotating arm on an automated lift mechanism.



The Advantages of AG Engine block ultrasonic cleaning machine

Ultrasonic cleaning machine delivers high performance industrial strength, cleaning action on Engine block, carburetor and Engine parts

01: Cleans carbon deposits from carburetors and all manner of engine parts

02: Removes stubborn oil grease, lubricants, paint, rust, and dirty (with-pre-cleaning in same cases

03: Aluminum sate

04: Penetrates deep into the part and cleans holes, small apertures and crevices

05: Clean sensitive parts like wiring and plastic without damage

06: Does not require line-of-sight for effective cleaning

07: Ensures part longevity due to high degree of cleanliness

AG Engine block ultrasonic cleaning machine are revolutionizing cleaning methods and processes on the automotive and mechanic shop floor, our Engine block ultrasonic cleaning machine can clean all kinds of automotive, aircraft, and marine engine parts, ultrasonic technology for cleaning parts eliminates manual labor while providing you with superior cleaning action, most parts can be cleaned with environmentally friendly water-based solutions

Ultrasonic cleaning machines work on the principle of agitating cleaning solvents using high frequency sound waves, the ultrasonic agitation creates millions of microscopic bubbles that implode releasing vast quantities of energy, this action, know as cavitations, dislodges any contaminant stuck to the surface of a part, ultrasonic cavitations thoroughly cleans every surface in contact with the cleaning fluid

While ultrasonic cleaning is the perfect deep cleaning solution for engine parts, choosing the right combination of cleaning machine and its cleaning chemistry can get a bit tricky, need help in selecting, these are several basics you need to know, this is where we come in, call AG and our engineer will help you select the right cleaning machine and machine chemistry



AGSONIC ultra sonic cleaning of all parts old and new prior to assembly of the engine. This Ultrasonic Cleaning Method is long known as the "benchmark" in cleaning. Ultrasonic cavitation is able to clean right down to the surface of a part and beyond. It is also able to reach internal areas, which are not accessible by using other cleaning means including spray and mechanical agitation. The forceful nature of ultrasonic energy provides the physical "push" required to break the mechanical and ionic bonds that hold very small particles to surfaces.





Ultrasonic Cleaning of Engine Parts, Car engine parts, Truck engine parts and Motor bike engine parts

Our Ultrasonic cleaning process, can effectively clean the following components- Aluminum castings, engine blocks, Carburetors, Cylinder Heads, Engines, Engine Components, Gear Boxes, Filters, Tubes and Valves.





The cleaning scope of AG Engine block ultrasonic cleaning machine

Suitable for all types of engine parts

AG engine block ultrasonic cleaning machine effectively and thoroughly clean all types of engine parts

01: Automotive: thoroughly removes carbon deposits, grease, and other types of dirty and contaminants from carburetor, exhaust manifolds, cylinder blocks, 2-stroke and 4 stroke motorcycle engines, snow machines, ATV cylinders and heads, and more.

02: Marine: Suitable for inboard and outboard motors, the cleaning chemistry is both thorough and gentle on the aluminum parts reducing the risk of future corrosion

03: Aircraft: The high performance demands of aircraft engines establish the need for an intensive cleaning process that will restore the engine part to near original condition, our engine block ultrasonic cleaning machine easily, thoroughly, and safely clean both large and small parts, turbine blades, fuel nozzles, generator components, brakes and other parts that require periodic cleaning are all effectively and thoroughly cleaned using the ultrasonic cleaning process

Choosing the right combination for your specific situation can be challenging if this is your first time, just send email to AG SONIC, we will quickly help you identify the optimum product and cleaning chemistry combo

Why choose ultrasonic cleaning machine to clean our engine block and engine parts?

Clean intricate and difficult to reach areas easily

A major challenge of any cleaning system is the difficulty faced in tackling tiny spaces, intricate geometries, and difficult to reach surfaces, ultrasonic cleaning penetrates even blind holes and small apertures, that previously had hit-and miss success rates, the uniform agitation of the cleaning solution ensures that the cleaning action penetrates even hard to reach areas that previously required specialized brushes and other complicated cleaning devices with no real guarantee of a successful and consistent cleaning outcome, various factors go into determining which combination of an ultrasonic unit and chemical solution is suited to your particular requirement

For effective cleaning the ultrasonic cleaning machine must use the right of cleaning chemistry, operate at the right temperature and use the correct frequency, the part to be cleaned the contaminant to be removed and the degree of soil, determine this, our years of experience advising manufacturing and maintenance clients on the right process for their cleaning needs help us identify the exact product combo that you need, just send AG SONIC email or call us, and we’ll guide you to the right solution quickly





Cylinder Heads And Engine Blocks Ultrasonic Cleaners



Automotive Ultrasonic Cleaners is primarily an aqueous tank systemthat uses ultrasonic energy to remove dirt, grease, oiland baked-on carbon from parts. Contaminants such aspaint, rust, glued-on gaskets, and heavy layers of bake don carbon can also be removed by ultrasonic cleaning but require more aggressive chemistries. Unlike someother cleaning processes, ultrasonic cleaning will notdamage intricate, lightweight, or easily damaged parts.



All ultrasonic baths are supplied complete with lid and basket



Product Description

Welcome to Cylinder Heads And Engine Blocks Cleaning, Truck Engine Parts Cleaning,



Our Ultrasonic cleaning process, can effectively clean the following components- Cylinder Heads And Engine Blocks And Aircraft Parts ,Aluminum castings, engine blocks, Carburetors, Cylinder Heads, Engines, Engine Components, Gear Boxes, Filters, Tubes and Valves.


AG Cylinder Heads And Engine Blocks ultrasonic cleaning machine are revolutionizing cleaning methods and processes on the Valve Plates  , our Valve Plates And Aircraft Parts ultrasonic cleaning machine can clean all kinds of automotive, aircraft, and marine engine parts, ultrasonic technology for cleaning parts eliminates manual labor while providing you with superior cleaning action, most parts can be cleaned with environmentally friendly water-based solutions

Ultrasonic cleaning machines work on the principle of agitating cleaning solvents using high frequency sound waves, the ultrasonic agitation creates millions of microscopic bubbles that implode releasing vast quantities of energy, this action, know as cavitations, dislodges any contaminant stuck to the surface of a part, ultrasonic cavitations thoroughly cleans every surface in contact with the cleaning fluid



Model:

ultrasonic tank models for your choice:

Model Tank size Unit size Volume Ultrasonic power Frequency Heating power Timer Heating temperature
LxWxH(mm) LxWxH(mm) (L) (W) (kHz) (KW) (MIN) (℃)
T-12S 500x300x250 640x440x470 38 600 28/40 1.5 1-99











0-80

T-18S 500x350x350 640x490x570 61 900 1.5
T-24S 550x400x400 690x540x620 88 1200 3
T-30S 600x450x400 740x590x620 108 1500 3
T-36S 600x500x450 740x640x670 135 1800 4.5
T-48S 700x500x500 840x640x720 175 2400 6
T-60S 800x600x550 940x740x770 264 3000 7.5
T-72S 1000x600x600 1140x740x820 360 3600 9



High Capacity Ultrasonic Cleaning Systems are designed for medium and heavy duty industrial applications. They are fully integrated, with an ultrasonic generator and cleaning tank in a single enclosure. A 10-gallon tank capacity is enough to handle large bulky parts or for batch cleaning of small components. High Capacity Ultrasonic Cleaning Systems' deep-drawn tank of 304L stainless steel has no corner welds or other dirt-catching surfaces.



Features of the machine:

• Low maintainence machine

• Heavy duty cleaning systems

• Chemical friendly- SS Rust proof body

• Industrial guage farication, build to last

•One year warrenty on any manufacturing defect

•Completely customized to suit the cleaning requirement

•Less human interfearance and less scope of error

•Accurate and uniform cleaning everytime



How the System Operates:

The system operates in the following manner:

The cover is opened and the batch of parts is placed onto the basket rest. Dripping liquids are directed back to the ultrasonic cleaning tank Engine Industrial Ultrasonic Washing Machine For Car Parts Truck Parts 0Engine Industrial Ultrasonic Washing Machine For Car Parts Truck Parts 1
