38L-360L Engine Parts Cleaning Machine 40khz/28khz For Remove Oil / Rust / Dirt

Basic Information
Place of Origin: China
Brand Name: AGSONIC
Certification: CE
Model Number: T-72S
Minimum Order Quantity: 1UNIT
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs / Month
Material: Stainless Steel 304 Application: Car Parts Truck Parts
Option: Oil Filteration Industry: Engine Ultrasonic Cleaning
Tank Capacity: 360L Frequency: 28khz
High Light:

industrial ultrasonic parts cleaner

,

automotive parts cleaning equipment



40khz/28khz Standard Series 38L To 360L Industrial Ultrasonic Cleaner For Remove Oil, Rust And Dirt


Introduction
Ultrasonic cleaning is a technology that uses high frequency sound waves (ultrasonic: above the range of human hearing) to agitate an aqueous or organic medium (cleaning chemistry) that in turn acts on contaminations adhering to substrates like metals, plastics, glass, rubber and ceramics. Contaminants can be dust, dirty, oil, pigments, grease, polishing compounds, flux agents, fingerprints, soot wax and mold release agents, biological soil like blood, and so on



Ultrasonic technology is powerful because:
1.Sound waves created by transducers are passed through the water creating vibrations that shake organic material loose from instruments
2.Microscopic bubbles succumb to pressure and  implode, creating a stream of water, which when next to the surface of an instrument will push gross soils off
3.. Hidden bioburden is removed from microscopic bubbles, created by the vibrations that when they encounter debris bump it free from the  instrument


Ultrasonics efficiently removes:
carbons
varnishes and paints
petrochemicals
oil and grease
metal shavings
lubricants
rusts
carcinogens
polymers
Ultrasonics can clean a wide range of filters including:
extruders and pumps
filter elements
filter vessel assemblies
polymer pumps
spin and screen packs
valves
spinnerets
die plates
porous metal
pleated metal
woven screens
fiber metal felt
slotted wire
filters with alloys
Benefits of ultrasonics for filters:
Cleans delicate parts without damage
Cleans cracks and crevices that would be difficult to reach with the hand
Does not require line-of-sight for effective cleaning
Doesn’t use harsh chemical solvents that are dangerous for workers and the environment
Safe for aluminum, magnesium and zinc
Biodegradable cleaner
Clean multiple pieces at once without having to brush by hand – saves time and money

AG ultrasonic cleaning machine effectively and thoroughly clean all types of Filter Cleaning

ultrasonic tank models for your choice:

Model Tank size Unit size Volume Ultrasonic power Frequency Heating power Timer Heater
LxWxH(mm) LxWxH(mm) (L) (W) (kHz) (KW) (MIN) (℃)
T-12S 500x300x250 640x440x470 38 600 28/40 1.5 1-99











0-80

T-18S 500x350x350 640x490x570 61 900 1.5
T-24S 550x400x400 690x540x620 88 1200 3
T-30S 600x450x400 740x590x620 108 1500 3
T-36S 600x500x450 740x640x670 135 1800 4.5
T-48S 700x500x500 840x640x720 175 2400 6
T-60S 800x600x550 940x740x770 264 3000 7.5
T-72S 1000x600x600 1140x740x820 360 3600 9



How does ultrasonic Marine Parts cleaning work?

Don’t replace filters when they become clogged with dirt, grease or other contaminants; ultrasonic cleaners can restore many types of filters to look and function like new. Ultrasonic parts washers are particularly effective for filters made of metal or plastic mesh; the gentle yet powerful process is much less damaging than traditional cleaning methods that use a brush and high-velocity chemical cleaning solutions. Ultrasonic cleaners use water based solutions that won’t damage filters yet reach every crack and crevice for the best possible clean. Ultrasonic cleaning uses a process called cavitation where microscopic bubbles form from ultrasonic waves, then implode on the part’s components; thereby vigorously yet gently scrubbing and cleaning surfaces and crevices. No matter how stubborn the build-up, your filters will be restored to full working capacity.



Marine Parts Cleaning Machine Ultrasound Clean Without Damage The Filter

We know that your reputation depends on cleaning filters effectively and efficiently. Ultrasonics International can help you choose the right kind of ultrasonic cleaner, training and support that you need for your business needs.

For more than two decades, Ultrasonics International has helped businesses improve profitability by providing their clients with ultrasonic cleaning equipment that feature the latest advancements in wave sweep technology. Our ultrasonic cleaning equipment has a reputation for reliability and longevity. Utilizing the proper ultrasonic cleaning equipment saves money and improves cleaning processes. Cleaning results will be measurably better and less time will be required to complete the cleaning process. Production numbers go up and labor hours go down dramatically because multiple parts can be addressed simultaneously.



Introduction

Ultrasonic cleaning is a technology that uses high frequency sound waves (ultrasonic: above the range of human hearing) to agitate an aqueous or organic medium (cleaning chemistry) that in turn acts on contaminations adhering to substrates like metals, plastics, glass, rubber and ceramics. Contaminants can be dust, dirty, oil, pigments, grease, polishing compounds, flux agents, fingerprints, soot wax and mold release agents, biological soil like blood, and so on



Application

Ultrasonic cleaning can be used for many applications, including plastic parts, bearing, bolts, rubber parts, internal parts, plastic injection molds, transmission parts, and final cleaning of all engine parts prior to assembly, the versatility of ultrasonic cleaning machine make them the perfect choice for automotive, medical, pharmaceutical, aerospace, engineering and many other industries





QFR

How do I get the best ultrasonic cleaning?

There are many considerations important to ultrasonic cleaning. Optimising these variables will produce the best cleaning. The most important decisions to be made are choosing the proper cleaning solution, cleaning at the right temperature for the correct amount of time, and choosing the right size and type of ultrasonic cleaner.



Is a special solution required for cleaning?

Soils adhere to the parts... if they didn't, the soil would just fall off the parts! The purpose of the solution is to break the bonds between parts and their soils. Water alone has no cleaning properties. The primary purpose of the ultrasonic activity (cavitation) is to assist the solution in doing its job. An ultrasonic cleaning solution contains various ingredients designed to optimise the ultrasonic cleaning process. For example, increased cavitation levels result from reduced fluid surface tension. An ultrasonic solution will contain a good wetting agent or surfactant.



What cleaning solution should I use?

Modern ultrasonic cleaning solutions are compounded from a variety of detergents, wetting agents and other reactive components. A large variety of excellent formulations are available, designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to preclude undesirable reactivity with the part being cleaned.



What cleaning solution shouldn't I use ?

Flammables or solutions with low flash points should only be used on a suitable rated system. The energy released by cavitation is converted to heat and kinetic energy, generating high temperature gradients in the solution, and can create hazardous conditions with flammable liquids. Acids, bleach and bleach by-products should generally be avoided, but may be used with indirect cleaning in a proper indirect cleaning container, such as a glass beaker, and appropriate care. Acid and bleach will damage stainless steel tanks, and/or create hazardous conditions.



Can ultrasonic cleaning damage my parts?

With certain cautions, ultrasonic cleaning is considered safe for most parts. While the effects of thousands of implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level. The most important cautionary consideration is the choice of cleaning solution. Potentially adverse effects of the detergent on the material being cleaned will be enhanced by the ultrasonics.





Features of the machine:

• Low maintainence machine

• Heavy duty cleaning systems

• Chemical friendly- SS Rust proof body

• Industrial guage farication, build to last

•One year warrenty on any manufacturing defect

•Completely customized to suit the cleaning requirement

•Less human interfearance and less scope of error

•Accurate and uniform cleaning everytime



How the System Operates:

The system operates in the following manner:

The cover is opened and the batch of parts is placed onto the basket rest. Dripping liquids are directed back to the ultrasonic cleaning tank

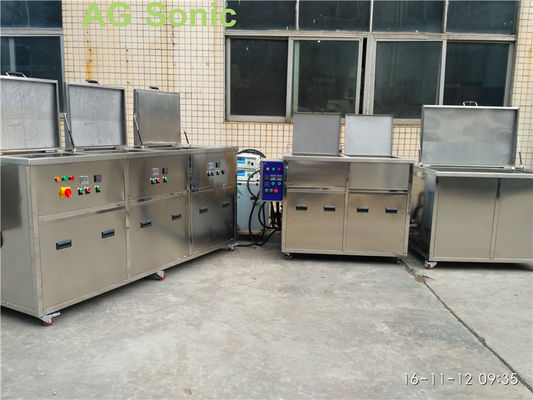

38L-360L Engine Parts Cleaning Machine 40khz/28khz For Remove Oil / Rust / Dirt 0

38L-360L Engine Parts Cleaning Machine 40khz/28khz For Remove Oil / Rust / Dirt 1
