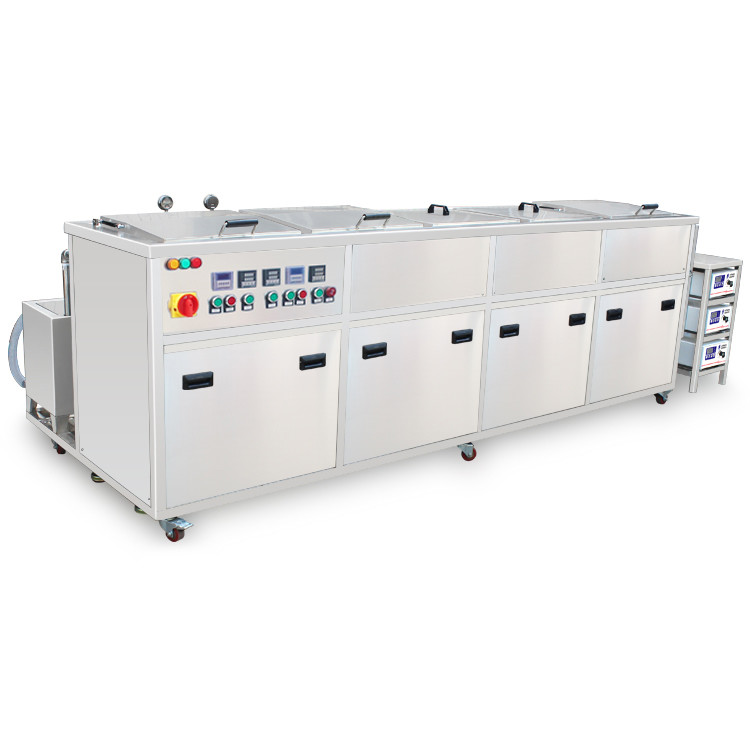

Filtration System Industrial Ultrasonic Parts Cleaner 3 Tanks In 1 Machine

Basic Information
Place of Origin: China
Brand Name: AGSONIC
Certification: CE
Model Number: T-72S
Minimum Order Quantity: 1UNIT
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs / Month
Material: Stainless Steel 304 Application: Automatic Industrial Ultrasonic Cleaner
Option: Filtration System Industry: Engine Ultrasonic Cleaning
Tank: 3 Tanks Ultrasonic Frequency: 28khz
High Light:

Filtration System Ultrasonic Parts Cleaner

,

Industrial Ultrasonic Parts Cleaner



Ultrasonic Cleaning Machine For 3 Tanks In 1 Machine With Ultrasonic Washing Ringsing Drying

We expertise in Multistage Cleaning Systems with Multiple tanks having Ultrasonic, Jet Spray, Rotating Basket, Dunking, Automatic Material Transfer, Handling system, Filtration, Oil Skimming & Drying as various options. Such machine are used for cleaning of Mold Inserts, Auto-Ancillary Parts, Medical Surgical tools and various other types of components.



Multistage Ultrasonic Cleaning Machine with the ultrasonic power. The product comes with digital timer and controlled thermostat. We offer a unique range of ultrasonic cleaning machines that are highly demanded for their excellent performance and low maintenance. Ultrasonic cleaner is majorly used in cleaning surgical instruments, automobile industry, ancillary industrial products, stationary manufacturers and many more.

Product Description

Ultrasonics: The ONLY Way to Clean with Confidence

Regardless of the source of the dirt or contamination, AG Ultrasonic Cleaning Systems are designed to accommodate a wide variety of uses in diverse industries. Fast, effective and efficient, our machines will allow you to clean virtually any type of part or component. The following is just a short list of the many different types of items that have been cleaned using our systems.

  • Automotive (Car, Truck, Motorcycle) See Video Below
  • Aviation (Helicopters, Aircraft and Ground Support)
  • Personal Boat & Marine
  • Injection Molds
  • Restaurants, Bakeries & Kitchens (Oven Filters, Burners, Pots, Pans, Utensils)
  • Machines of All Types
  • Tools, Nuts, Bolts
  • Extrusion and Deburring
  • Almost anything made out of metal (ferrous and non-ferrous), plastic, vinyl, and wood.

Saved more than 20 labor hours and minimized employee chemical exposure.



AGSONIC wasn’t the cheapest or the most expensive. They had an excellent product for the money and a commitment to customer service. AGSONIC is very easy to work with, even from 2,000 miles away. The retrofit and all other support needs have been handled in a very responsive manner. AGSONIC ’ dependability and service are part of our operational success. As far as our employees and management are concerned, our AGSONIC units are here to stay. For any future needs, AGSONIC is our 1 choice.

– Customer feedbaack Aerospace.



Why an Ultrasonic Cleaner is Ideal for Aircraft Parts

In three words: thorough, safe and fast. Contaminants missed by manual cleaning are usually those deep in crevices and on other surfaces impossible to reach. Moreover, highly finished mold surfaces can be scratched or otherwise damaged by manual processes. Large molds can be difficult to maneuver, further risking damage during manual cleaning. And the longer it takes to clean the molds the greater the risk of damage.



Ultrasonic cleaning action solves all three issues.

It is thorough because it reaches all mold surfaces immersed in a biodegradable water-based ultrasonic cleaning solution. It is safe because while the cleaning action can be termed “violent” it occurs so fast that highly polished injection mold surfaces are not damaged during the cleaning process. By fast we mean 10 to 15 minutes although large complex molds may require a longer cleaning cycle.



Aircraft Parts Cleaning by Cavitation Action

1. Fill the ultrasonic cleaner with water but allow room for cleaning solution displacement due to the size of the molds being cleaned. Add the proper amount of biodegradable cleaning solution concentrate. Ask the scientists at Tovatech to recommend the correct formulation based on the type of contaminants you are removing and what the mold itself is made of.



2. When you are ready to clean place the injection molds in the cleaner basket. Take care that they do not contact each other. If you are cleaning large parts you may suspend them in the cleaning solution so they do not contact the tank bottom. Some industrial cleaners are equipped with bottom racks to support products being cleaned.



3. Set the heater to 65 C and timer from 10 to 60 minutes depending on the degree of contamination. Activate the sweep mode to assure uniform distribution of cavitation and promote uniform cleaning then lower the molds into the solution. With experience you will establish optimum cleaning conditions.



4. At the end of the cycle remove the molds and inspect. When satisfied, rinse them with fresh hot water and allow them to dry or blow them dry with compressed air. Note that intricate configurations and cavities may trap water that should be removed by adding an electric drying oven to your setup.

Rinsing tip: You’ll want to thoroughly remove cleaning solution residues. Complex shapes may call for a spray rinse or, in certain cases, rinsing by cavitation in an ultrasonic rinse tank.



How to Clean Large Aircraft Parts

Complex Aircraft Parts require careful cleaning.

Complex Aircraft Parts represent substantial investments by plastic injection molding companies which, in order to protect their investments, must establish cleaning procedures to remove a variety of stubborn contaminants. These include burned on residues, oils, flashing and grease that if allowed to remain will result in product rejection by the quality control department. Hand scrubbing with solvents simply does not do the job. In addition to being time consuming, manual cleaning introduces potential health hazards for personnel and solvent disposal challenges. The solution is using an ultrasonic cleaner instead of scrubbing in a solvent-based parts washer

3 Tank Ultrasonic Cleaner Specification :

Specification



3 Tank ultrasonic Tank , Rinsing tank , Drying Tank

Specification

Model T-3072G
1st Tank Volume 135L Ultrasonic Cleaning tank with filtration cycle system
2nd Tank Volume 135L Ultrasonic Rinsng tank
3rd Tank Volume 135L Drying tank
1st tank size 600X500X450mm
2nd tank size 600X500X450mm
3rd Tank size 600X500X450mm
Transducers 36pcs in 1st tank; 36pcs in 2nd tank
Ultrasonic Power 1800W*2
Heating Power of Ultrasonic tank 4500W*2
Heating Power of Drying tank 750W
Frenquency 28KHz/40KHz
Drying System 1 set
Unit size 2460*1310*1050mm
Packing size 2520*1370*1170mm
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304 default, can be SUS 316
Power Supply AC 220V 3 phase ; AC 380V 3 phase
N.W. 370G
G.W. 400KG Wrapped by film in wooden case
Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS, FCC, SGS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water
