Name: | Engine Parts Ultrasonic Cleaning Machine | Application: | 28khz Frequency Ultrasonic Cleaning Machine |
---|---|---|---|
Frequency: | 40 Khz | Industry: | Engine Parts |
Ultrasonic Power: | Customized | Option: | With Durable Heating Tube |
High Light: | Biodegradable Ultrasonic Engine Cleaner,Large Tank Ultrasonic Engine Cleaner |
Oil Diesel Engine Block Ultrasonic Cleaning Machine With Oil Filter 28Khz Transducer
Auto Parts Cleaning machine
We are manufacturing and supplying of Automotive Ultrasonic Cleaners. We offer a wide range of ultrasonic cleaners. These are Single or Multistage Ultrasonic Cleaners, which are both manually operated & fully automated systems. Further, the machine is widely used and appreciated by our clients due to its professional dependability and user friendliness.
Ultrasonic Cleaner Auto Industry
Ultrasonic cleaning is a water based cleaning solution where ultrasonic transducers are used to provide cavitation agigation insude the tank which has waer and suitable chemical to clean oil,dirt,debree,grease and other contaminants from various types of auto components.
We expertise in all types of ancilary parts washing like brakepads, steering coloumns, crank shats, pistons, valves, gaskets, clutch pads, mirrors and many more.
What ultraosnic can do ?
Ultrasonic cleaners remove dirt, oils, lubricants, carbon, rust,and other types of grime that build up on engines and mechanical parts. Grooves, internal passageways, seals, and other hard to reach areas are cleaned easily, eliminating hours of disassembling and reassembling complex parts. Carburetors, pistons, cylinder heads, aluminum parts, and brake calipers are a few examples of components that are cleaned thoroughly with no manual scrubbing in an ultrasonic cleaner
It’s efficient, clean, green and cost-effective.
Most importantly, it works.
A powerful cleaning solution is now as simple as soap, water and some mighty little bubbles.
Ultrasonic cleaning technology is fast, gentle and extremely powerful. It uses microscopic cavitation bubbles and specially
formulated eco-friendly solutions to search every crease and crevice and eliminate even stubborn or difficult-to-reach contaminants, including grease, dirt, hydrocarbons, metal
shavings, buffing/polishing compounds, carbon deposits, mold release and more.
Benefits of ultrasonics for Engine Block :
Cleans delicate parts without damage
Cleans cracks and crevices that would be difficult to reach with the hand
Does not require line-of-sight for effective cleaning
Doesn’t use harsh chemical solvents that are dangerous for workers and the environment
Safe for aluminum, magnesium and zinc
Biodegradable cleaner
Clean multiple pieces at once without having to brush by hand – saves time and money
ultrasonic tank models
Model: T-72S details:
Model | T-72S | Heater | 0~95℃ adjustable |
Ultrasonic power | 3600W ( 60pcs transducers) | Voltage | AC 100~120V, 60Hz AC 220~240V, 50Hz |
Frequency | 40KHz | Tank size | 1000*600*600MM |
Housing material | SUS304 | Unit size | 1170*770*715MM |
Tank material | SUS304 | Packing size | 1390*860*1050mm |
Heating power | 9000W | N.W. | 216 Kg |
Tank capacity | 360 L | G.W. | 287 Kg |
Timer | Digital 1-99min adjustable | Certificate | ROHS |
Features:
1. Tank materail is SUS304 with 2mm thickness, Human hand argon welded, Sturdy and durable resistance to high tempearture
2. 50W industrial transducers, outstanding cleaning effects
3. Built-in generator
4. Power adjustable, choose different power according to different cleaning objects
5. Digital timer: 1~99mins timer adjustable. continious working for long time.
6. With memory function, no need to reset time and temperature every time.
7. 20~80C adjustable, powerful heating panel, faster cleaning
8. Industry use power cord, more safer.
9. Can bear 100~200KG cleaning objects

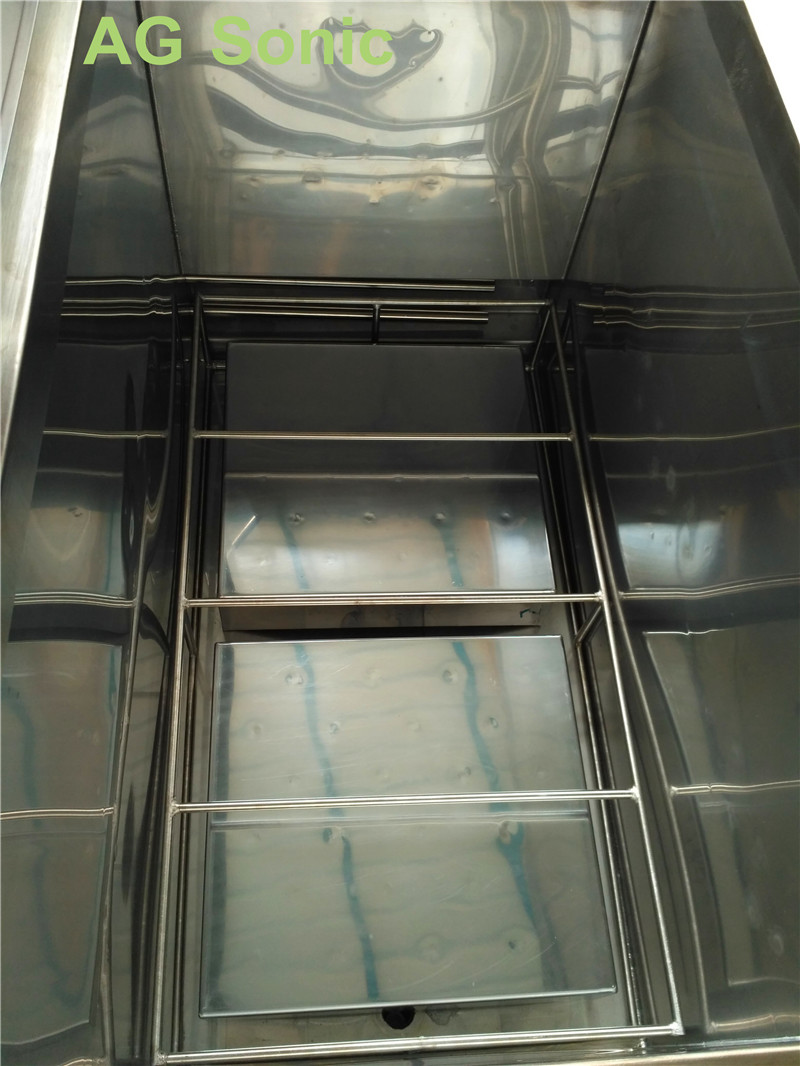

10. Accessories: Machine with stainless steel basket, drainage, lid, movable castors.
Important parameters which can influence the cavitation
• External pressure
• Temperature - Heated cleaning liquids reduce cleaning time and dirt is removed faster
• Ultrasound frequency
• Ultrasound power
• Nature of chemicals used to clean, its concentration, its density...
Positioning the parts in working chamber
The efficiency of water-based cleaning processes is related to the intimate contact of the cleaning chemistry and the impurities on the surface. The importance of positioning is always underestimated mainly with parts with complex geometry.
The performances with the right positioning of the parts in an ultrasonic cleaner are;
• Efficiency of the ultrasonic by dipping or pressure jet by spraying
• Physical protection from mechanical damage of the surface
• Efficiency of the contact between substrate and chemical specialties
• Efficiency of the rinsing operation
• Efficiency of the drying step
Why Use Cylinder Head Engine Block Cleaning ?
Agsonics is renowned for their professional cleaning service to the motor industry.
How does ultrasonic cleaner technology clean?
Cavitation bubbles are vacuum cavities as tiny as red blood cells, or about 8 thousandths of a millimeter across. They are so small that it would take 1,250 of them lined up in a row to reach 1 cm long.
Under pressure of continuous vibration, these bubbles stretch and compress at a fast rate. Once they reach a certain size, as determined by the frequency and strength of the sound waves produced, the bubbles lose structural integrity and collapse violently. When these implosions happen near a surface, the bubbles emit high-powered streams of plasma that travel at more than 500 miles per hour and collide with, agitate and remove even very tiny particles and substances from that surface.
ultrasonic tank models
Model: T-72S details:
Model | T-72S | Heater | 0~95℃ adjustable |
Ultrasonic power | 3600W ( 60pcs transducers) | Voltage | AC 100~120V, 60Hz AC 220~240V, 50Hz |
Frequency | 40KHz | Tank size | 1000*600*600MM |
Housing material | SUS304 | Unit size | 1170*770*715MM |
Tank material | SUS304 | Packing size | 1390*860*1050mm |
Heating power | 9000W | N.W. | 216 Kg |
Tank capacity | 360 L | G.W. | 287 Kg |
Timer | Digital 1-99min adjustable | Certificate | ROHS |
Features:
1. Tank materail is SUS304 with 2mm thickness, Human hand argon welded, Sturdy and durable resistance to high tempearture
2. 50W industrial transducers, outstanding cleaning effects
3. Built-in generator
4. Power adjustable, choose different power according to different cleaning objects
5. Digital timer: 1~99mins timer adjustable. continious working for long time.
6. With memory function, no need to reset time and temperature every time.
7. 20~80C adjustable, powerful heating panel, faster cleaning
8. Industry use power cord, more safer.
9. Can bear 100~200KG cleaning objects
10. Accessories: Machine with stainless steel basket, drainage, lid, movable castors.
Important parameters which can influence the cavitation
• External pressure
• Temperature - Heated cleaning liquids reduce cleaning time and dirt is removed faster
• Ultrasound frequency
• Ultrasound power
• Nature of chemicals used to clean, its concentration, its density...
Positioning the parts in working chamber
The efficiency of water-based cleaning processes is related to the intimate contact of the cleaning chemistry and the impurities on the surface. The importance of positioning is always underestimated mainly with parts with complex geometry.
The performances with the right positioning of the parts in an ultrasonic cleaner are;
• Efficiency of the ultrasonic by dipping or pressure jet by spraying
• Physical protection from mechanical damage of the surface
• Efficiency of the contact between substrate and chemical specialties
• Efficiency of the rinsing operation
• Efficiency of the drying step
Why Use Cylinder Head Engine Block Cleaning ?
Agsonics is renowned for their professional cleaning service to the motor industry.
How does ultrasonic cleaner technology clean?
Cavitation bubbles are vacuum cavities as tiny as red blood cells, or about 8 thousandths of a millimeter across. They are so small that it would take 1,250 of them lined up in a row to reach 1 cm long.
Under pressure of continuous vibration, these bubbles stretch and compress at a fast rate. Once they reach a certain size, as determined by the frequency and strength of the sound waves produced, the bubbles lose structural integrity and collapse violently. When these implosions happen near a surface, the bubbles emit high-powered streams of plasma that travel at more than 500 miles per hour and collide with, agitate and remove even very tiny particles and substances from that surface .
