Heavy Duty Stainless Steel Heated Soak Tank With Ultrasonic Transducers

Basic Information
Place of Origin: China
Brand Name: AGSONIC
Certification: CE
Model Number: 230L
Minimum Order Quantity: 1UNIT
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs / Month
Material: Stainless Steel 304 1.2MM Application: Heated Soak Tank
Technical: Double Walled Insulated Industry: Commercial Kitchen Cleaning
Tank Capacity: 230L Heater: 2KW
High Light:

Heavy Duty Heated Soak Tank

,

Ultrasonic Transducers Heated Soak Tank

,

1.2MM Stainless Steel Soak Tank

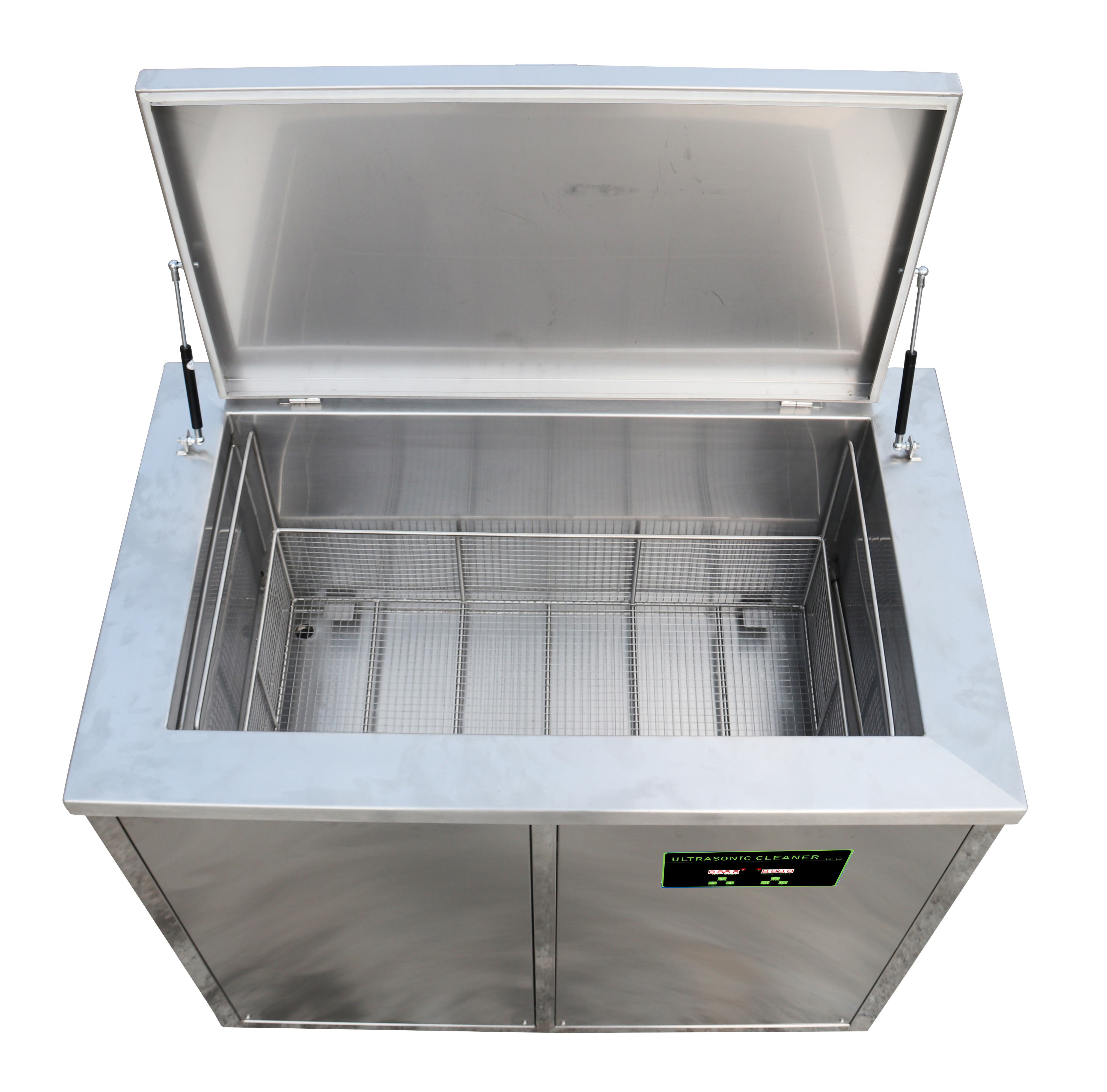

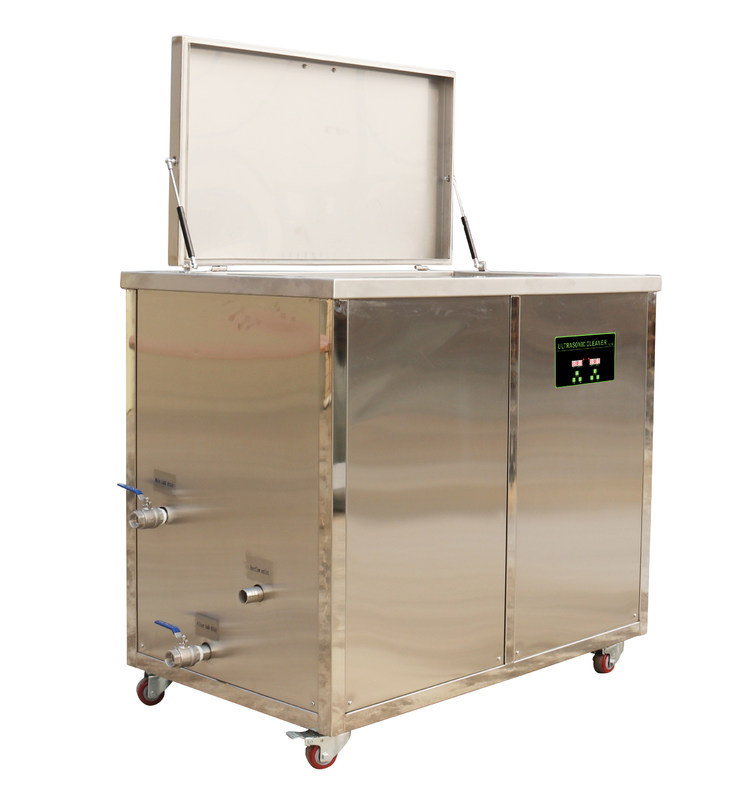

Heavy Duty Stainless Steel Heated Soak Tank With Ultrasonic Transducers



Why Choose Soak Tank

Soak Tank We pride ourselves on meeting the needs of the foodservice industry with a quality range of soak tanks and sanitisation solutions. In fact, we have a range of products to meet the needs of any commercial kitchen.



Our exceptional customer service combined with a winning range of products, has meant that we have earned the trust of hundreds of companies right across the country.



THIS TANK IS PERFECT FOR SMALL COMMERCIAL KITCHENS.

This tank is perfect for small commercial kitchens such as fast food chains, hotels and restaurants. The Small Soak Tank’s compact design and extra depth allow larger items to be soaked. Featuring the smallest foot print in the range, easy to load basket

A combination of our state of the art insulation system and lower running temperature means our tanks are up to 40% more energy efficient than anything else on the market.

Our tanks have been designed with the help from all parts of the food industry. Our clients demand perfection, which is why our soak tanks provide you with a simple and safe method to clean all areas of your kitchen. Our tanks are suitable for hotels, restaurants, hospitals, cafes, fast food chains and bakeries right up to your industrial and commercial kitchens.



We pride our self on safety. Some of our features include:

· Stainless steel gas struts on the lid

· Heavy duty casters with an easy to operate brake system

· Easy to lift baskets with lock in pins



Don't Scrub-Just Soak

F.O.G. is an acronym for Fats, Oils and Grease and it forms a Carbon crust on metal equipment which is extremely difficult to remove.

Scrubbing Pots and Pans is described as "The worst job in the kitchen"

CARBONZYME is non hazardous, non toxic and environmentally friendly

Cleans your equipment safely and effectively.



RESTORE your equipment to the original by merely soaking in the D-CARBONATOR.

Initial soak times may require an overnight soak to remove heavy Carbon build up.

CARBONZYME strips away at the layers similar to the way that paint stripper works.

Once the heavy carbon is removed, soak times will be dramatica





SANITIZE all equipment by soaking in the D-CARBONATOR. Items removed are cleaned and bacteria free.



SPEED up cooking time by removing the insulating effect of the Carbon.



FOOD quality improves when flakes of Carbon are eliminated from the food but are rather captured and thrown in the trash





The D-CARBONATOR is...
• Safe on equipment
• Safe on Aluminum
• Easy to use
• Energy Efficient
• Conserves water



Tank :1.These are all double walled and insulated. The tank material : sus 304

Lid: 2.will have a lockable lid when open or shut similar to the photos.

Basket:3.Basket can be able to remove from the tank and have a number of lift points in

the inside of the tank, as it can get heavy with kitchen equipment;

Wheel:4.For wheels we will design to provide heavy duty lockable castor wheels ,so hold the caster wheel from moving and ease moving during cleaning time

Small Soak Tank



HOW DOES IT WORK?

No scrubbing, no staff down time.

As the tank only needs to be emptied and refilled every 3 to 4 weeks, the cost savings on water, labour, harsh chemicals and electricity and be felt almost immediately.



How to use ?

A KITCHEN SOAK TANK WILL:

Regular use of Kitchen Soak Tanks will result in your kitchen equipment lasting longer, performing better, be far cleaner and always ready for use when needed. Ideally suited for:

Kitchen Soak Tanks Reduce Staffing Costs US $2000 – US $6,000 Per Year!

Soak Tanks reduce operating overheads by eliminating all scrubbing to remove carbon and grease build ups on everyday cook ware. If you can eliminate just one hour per day of staff time spent on cleaning cooking utensils, you could save in excess of $3,000 over the course of a single year. In reality most kitchens will presently waste 2 to 3 man hours per day in attempts to clean their cook wares. Your annual labour savings alone will more than pay for our soak tank.



Benefits

One person operation with hand held control

Load bearing of 260 kg

OH&S compliant, making the workpalce safer

Easily load up to 15 range hood filters

Neoprene seal under the lid keeping the heat in and reducing power costs.

Food grade stainless steel with a double insulated frame allowing for temperature adjustments.



Safety features

Gas strut lid, making opening and closing safer

Heavy duty lockable castors

Automatic overload cut off

Limit switch



Specifications:

Model Volume Tank size (mm) Unit Size (mm) Basket size (mm)
TS-168 168L 655*410*625 755*510*785 605*390*595
TS-211 211L 750*450*625 850*550*785 700*430*595
TS-258 258L 890*480*605 990*580*800 840*460*575
TS-274 274L 840*480*680 940*580*875 790*460*650
TS-388 388L; 1080*460*680 1480*560*875 1060*440*650
TS-483 483L 1365*520*680 1465*620*875 1315*500*650



Small tank: suitable for canopy fitlers, grill tops, pans and small trays.

Medium tank(popular size): suitable for busy medium sized pans and large trays & oven racks.

Large tank: suitable for greasy filters, pots, baking trays, etc,

From 10 gallons to 90 gallons We also offer custom sizes for larger applications.

Different tank size is available,We also offer custom sizes for larger applications.



Soak Tank cleaning Effect :



FAQ

Cuotomer Feedback AGSONIC Soak Tank :

We have utilized the Soak Tank Cleaning System now for several months in our Food and Beverage operations. Over the years our Kitchen small wares, pots and pans have become heavily encrusted with black carbon build-up. We have searched high and low for a solution that is not only safe but also cost effective. The Soak Tank Cleaning System has proven without a doubt to eliminate our problem, by cleaning the carbon build up from our small wares and has done so in a timely and cost effective manner. Our Stewarding staff is very pleased with the ease of operations of this unit.
I have no hesitations in recommending the use of this Soak Tank System



What is Ultrasonic Cleaning

In a process termed "cavitation", micron-size bubbles form and grow due to alternating positive and negative pressure waves in a solution. The bubbles subjected to these alternating pressure waves continue to grow until they reach resonant size. Just prior to the bubble implosion, there is a tremendous amount of energy stored inside the bubble itself. Temperature inside a cavitating bubble can be extremely high, with pressures up to 500 atm. The implosion event, when it occurs near a hard surface, changes the bubble into a suction jet about one-tenth the bubble size, which travels at speeds up to 400 km/hr away from the hard surface. With the combination of pressure, temperature, and velocity, the jet frees contaminants from their bonds with the substrate. Because of the inherently small size of the jet and the relatively large energy, ultrasonic cleaning has the ability to reach into small crevices and remove entrapped soils very effectively.



What is cavitation?

"Cavitation" is the rapid formation and collapse of millions of tiny bubbles (or cavities) in a liquid. Cavitation is produced by the alternating high and low pressure waves generated by high frequency (ultrasonic) sound. During the low pressure phase, these bubbles grow from microscopic size until, during the high pressure phase where they are compressed and implode.
