| Place of Origin: | China |
|---|---|
| Brand Name: | Agsonic |
| Certification: | CE |
| Model Number: | AG-1036 |
| Minimum Order Quantity: | negotiation |
| Price: | negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 10-20days |
| Supply Ability: | 100pcs/month |
| Material: | Sus304/316 | Application: | Immesible Transdcuer |
|---|---|---|---|
| Frequency: | 28KHZ/40KHZ/80khz | Use: | Degreasing |
| Control: | Generator Control | Cleaning Typer: | Filter Cleane |
| Transducer: | Strong Power | Packing: | Export Carton Box |
| High Light: | submersible ultrasonic transducer,ultrasonic transducer generator |
||
Flexible Immersible Ultrasonic Transducer Box Generator 1500W 40khz
AGsonic immersible ultrasonic transducer box-embedded in your existing tank.
good quality-custom made size-chemicals resistance-moveable-convenient install
Immersible transducer generator specification :
| Model (AG models) | AG-06 | AG-12 | AG- 18 | AG-24 | AG- 30 | AG- 36 | |||
| Ultrasonic transducer box size (mm) | L | 305 | 355 | 406 | 500 | 550 | 500 | ||
| W | 250 | 305 | 305 | 355 | 406 | 460 | |||
| H | 100 | 100 | 100 | 100 | 100 | 100 | |||
| Housing material | SUS304/SUS316L | ||||||||
| Surface finishing | Hard-Cr plating treatment (20+microns) | ||||||||
| Ultrasonic frequency | 28KHz / 40KHz | ||||||||
| Ultrasonic transducers | 6pcs | 12pcs | 18pcs | 24pcs | 30pcs | 36pcs | |||
| Ultrasonic power | 300W | 600W | 900W | 1200W | 1500W | 1800W | |||
| Electronic generator | KG300 | KG600 | KG900 | KG1200 | KG1500 | KG1800 | |||
| Ultrasonic generator work separately control transducers | |||||||||
| power suppy | AC 110V/220V or 220/240V, 1,13AMP | ||||||||
|
*Custom made:68KHz/80KHz/120KHz and size are all available |
|||||||||

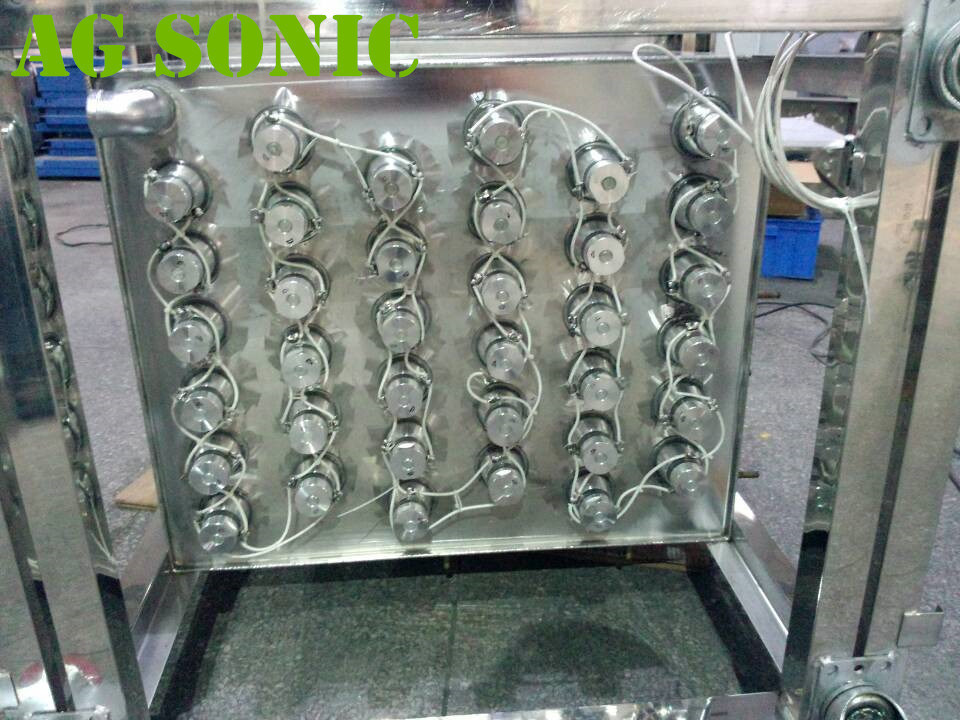

AG series immersible ultrasonic transducer system includes transducer box and generator. It can be used when the standard model ultrasonic cleaner is inapplicable in the specific working conditions, besides may have the special specification made to order. The transducer box and generator are separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank. The transducer box is moveable in the tank for more convenience. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load.

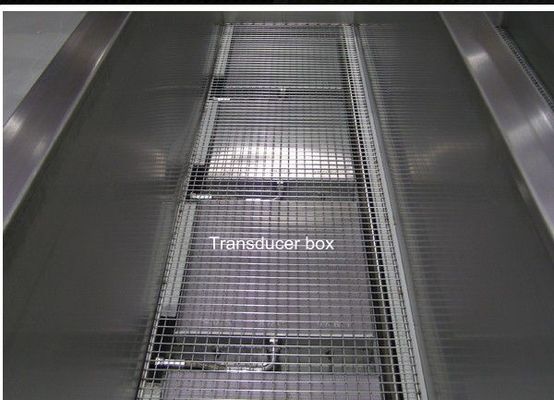

Immersible ultrasonic transducer units can be installed in the tank by three ways:side and/or bottom mounted or top mounted depending on the tank geometry.. The specification of transducer boxes are available for custom made.
Industrial Medical Sonicator Cleaner
Ultrasonic immersible transducer cleaner applied ranges:
Machinery industry: Removing rust and grease for Machinery Parts, Engine, carburetor and automobile parts cleaning, Filter. Clear filter, especially in the railway industry, for degreasing decontamination conditioned train cars, each member of the front of the train rust, oil, and rust, very suitable
Surface treatment industry: Degreasing derusting before plating, cleaning before Ion plating, Metal workpiece surface activation treatment, phosphating, remove carbon deposition, oxidation and polishing paste
Instrument industry: precision parts cleaning
Electronic industry: remove Rosin and welding spot for p.c.b. boards, machinery parts cleaning
