Convenient Immersible Ultrasonic Transducer With High Intensity And Efficiency

Basic Information
Place of Origin: China
Brand Name: AG SONIC
Certification: CE
Model Number: TZ-1036
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 1unit/wooden case
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 300units/month
Feature: Suitable For Any Tank Customized Ultrasonic Transducers: Based On Tank Capacity
Frequency: 28/40khz Box Material: SUS304/SUS316L
Control: Separate Generator Advantage: Save Cost
High Light:

submersible ultrasonic transducer

,

ultrasonic vibration transducer

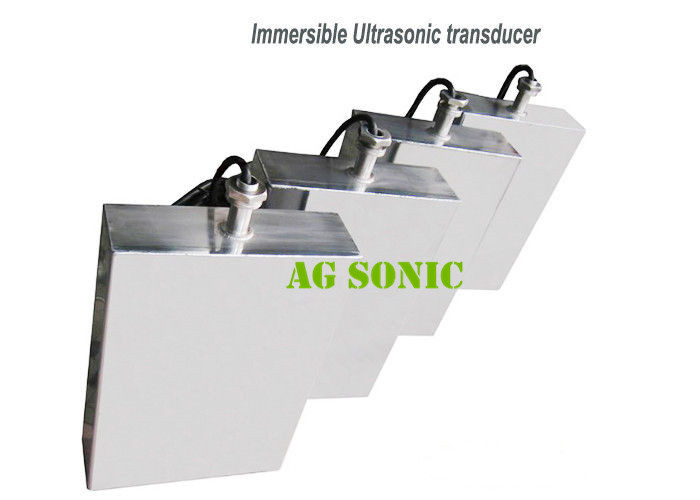

1800W Immersible Ultrasonic Transducer Box Installed for Own Made Tank



Brief introduction:

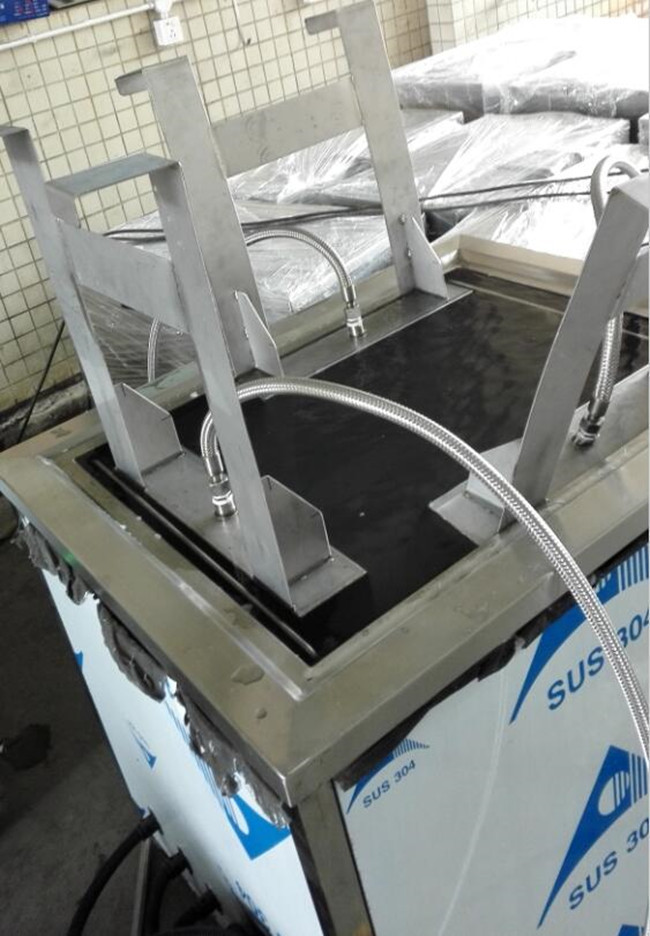

Compared with ultrasonic cleaner bath, immersible ultrasonic transducer system is much more convenient for shipment and it can help you save cost. You can install the transducer box in your own tank(sus tank, plastic tank, cement tank, etc.) as you like. Pls just inform us the size of your tank and requirements if any.



Specification details:
Ultrasonic transducer box size (mm): 500x460x100mm(LXWXH)
Housing material: SUS304/SUS316L
Surface finishing: Hard-Cr plating treatment (20+microns)
Ultrasonic frequency: 28KHz / 40KHz
Ultrasonic transducers: 36pcs
Ultrasonic power: 1800W
Electronic generator: Ultrasonic generator work separately control transducers
power supply: AC 110V/220V or 220/240V, 1,13AMP



Specifications:

Model Material Transducers Estimated volume Box size Cable
lead-out
Ultrasonic frequency Ultrasonic power
(mm) (pcs) (L) (mm)   (kHz) (W)
TZ-1003 SUS304/SUS316L 3 15 250x150x100 Rigid tube/
Flexible tube
28/40 150
TZ-1006 6 30 305x250x100 300
TZ-1012 12 60 355x250x100 600
TZ-1018 18 90 406x305x100 900
TZ-1024 24 120 500x355x100 1200
TZ-1030 30 150 550x406x100 1500
TZ-1036 36 180 500x460x100 1800





Advantages:





  1. Material: SUS304/316L with 2.5mm thickness
  2. Durability and resistance: coated with Hard Chrome plating
  3. High intensity and efficiency BLT type transducers
  4. Easy and convenient to put in different tanks
  5. Various install methods:

    Place on wall (flexible/rigid tube or flange hole)

    Place on corner (suitable in the absence of lateral space)

    Place on bottom (flexible/rigid tube or flange hole)

Applications:



Industry   Cleaning objects
machinery   Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools
electronics   PCB board, electronic parts, TV parts, computer parts
Auto industry   engine parts, gear box, shock absorber, auto nozzle, cylinder, valve
Plating& painting   polishing parts, SUS cutter, tableware, plating
Food industry   Oven tray, boiler, bottles, bottle cap, filters
Optical& watch maker

optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band,

watch cover, watch hand

others   seal, flapper, coins, pottery, bank card, IGBT
