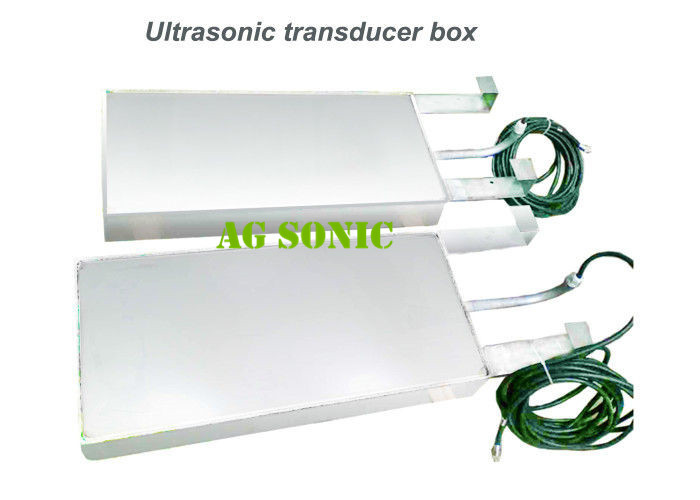

1500W Bulkhead Immersible Ultrasonic Transducer Easy Install With Rigid Pipe

Basic Information
Place of Origin: China
Brand Name: AG SONIC
Certification: CE
Model Number: TZ-1030
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 1unit/wooden case
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 300units/month
Frequency: 28+40kHz Box Material: SUS304
Ultrasonic Power: 1500W Pack Size: 500x406x100mm
Cables Lead-out: With Rigid Pipe Packing: Wooden Case
High Light:

ultrasonic vibration transducer

,

ultrasonic transducer generator



28kHz + 40kHz Dual Ultrasonic Transducer Generator with Rigid Pipe 1500W



Introduction:

AG Ultrasonics immersible transducers are constructed of cavitation resistant, bright annealed 304/316L stainless steel with robotically welded seams to ensure a long life.

You can design these customized submersible units into your new ultrasonic systems or retrofit them into existing systems to introduce ultrasonic precision cleaning. The cleaning load of your parts tank will determine the number and placement of the submersible transducers, which are available in custom sizes, wattage, and frequencies — including 25 kHz, 40 kHz, 58 kHz, 132 kHz, 192 kHz, 470 kHz, and 1000 kHz — as well as custom combinations including 20/40 kHz and 58/192 kHz. They can be mounted on either the sides or bottoms of the cleaning tanks, depending upon their geometry.

By using a AG modular submersible ultrasonic transducer, you ensure easy servicing, because each one can be easily replaced in minutes thanks to our flexible mounting schemes. You can also move our immersible transducers from tank to tank, or reposition them on tanks as required for special situations and needs. And you can rack-mount a series of AG immersibles so that they can be installed and/or removed as a group to speed up tank cleanings, inspections, and maintenance.



Application:

  1. Car service: Flushing carburetors, injectors, injectors, fuel filter mesh cleaning (petrol), individual parts, assemblies, and entire blocks.
  2. Medicine: Washing and polishing of optics, sterilization and cleaning of surgical instruments, vials, dental and pharmaceutical industries; cleaner reusable, molds.
  3. Engineering: Cleaning of parts, pipes, wires, etc. before finishing, machining parts and components to the preservation, processing of parts after reopening, welding, grinding, polishing, cleaning strainers in the fuel and hydraulic systems, deburring parts.
  4. Instrumentation: Washing and polishing of optics, precision mechanics components, integrated circuits and printed circuit boards.



Call to learn more about our customized flexible, hand pipe, and bulkhead ultrasonic immersible transducers.



Benefits:

1. Gently moves parts to assist with cleaning

2. Remove all components for next operation

3. Reduces/replaces hazardous cleaning solvents

4. Micro-clean parts reduces part failures

5. Lower labor costs - Increased profits

6. Remove all contaminants without damage the parts/instruments.

7. Hang on the wall or fix on the bottom/wall by screw

8. 1 year warranty

9. CE certification for generators



Specifications:

Model Material Transducers Estimated volume Box size Cable
lead-out
Ultrasonic frequency Ultrasonic power
(mm) (pcs) (L) (mm)   (kHz) (W)
TZ-1003 SUS304/SUS316L 3 15 250x150x100 Rigid tube/
Flexible tube
28/40 150
TZ-1006 6 30 305x250x100 300
TZ-1012 12 60 355x250x100 600
TZ-1018 18 90 406x305x100 900
TZ-1024 24 120 500x355x100 1200
TZ-1030 30 150 550x406x100 1500
TZ-1036 36 180 500x460x100 1800



FAQ:

Q: What frequency is better for my parts?

A: Frequency is suggested based on pollutants in the objects.

28kHz frequency is stronger, better for car/motor/truck/vessel parts clean (remove oils, grease, pastes, etc. )

40kHz is better for pcb boards, electronic parts, etc.

Higher precision goods, higher frequency.



Q: Can ultrasonic cleaning damage parts?

A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.

No damage to your daily objects.



Q: What cleaning solution should I use?

A: A large variety of different formulas designed for specific applications. Proper selection is crucial for

acceptable cleaning activity and to prevent unwanted reactions with the workpiece.
