| Place of Origin: | China |
|---|---|
| Brand Name: | AG SONIC |
| Certification: | CE |
| Model Number: | TZ-1012 |
| Minimum Order Quantity: | negotiation |
| Price: | negotiation |
| Packaging Details: | 1unit/wooden case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 300units/month |
| Frequency: | 28/40khz | Ultrasonic Power: | 600W |
|---|---|---|---|
| Pack Size: | 355x305x100mm | Power: | Adjustable |
| Control: | Separate Generator | Cable Lead-out Way: | Flexible Tube |
| High Light: | submersible ultrasonic transducer,ultrasonic vibration transducer |
||

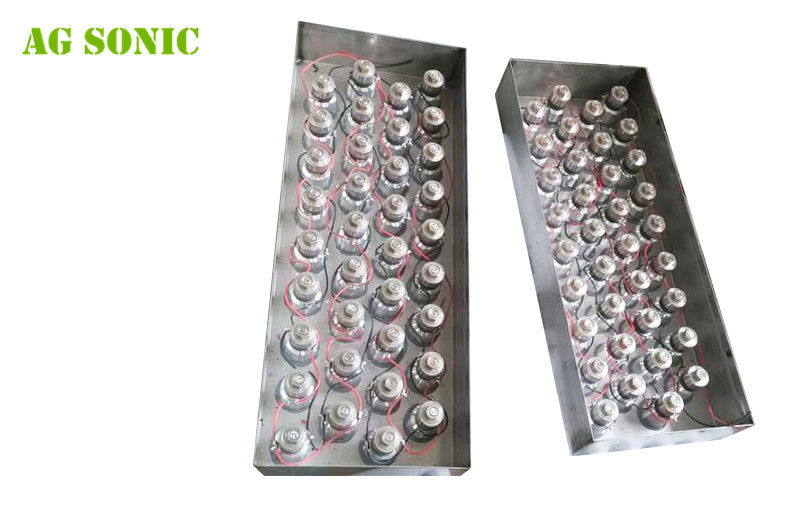

Customized Waterproof Ultrasonic Transducer Pack for Diesel Parts AG-12
Application:
| Healthcare | Dental and surgical instruments, optical, podiatry, general practice, hospitals, medical components |
| Manufacturing: | Aerospace, pharmaceutical, defence, medical devices and orthopaedic implants, automotive, marine, filtration, moulding, food and beverage, plating & surface finishing, semi-conductors, printing technology and equipment. |
| Maintenance | Automotive servicing, jewellery & watches, tools, weapons, Heat exchangers, oil & gas, commercial coffee boiler |
| Laboratory | Scientific Research, Mixing, Cell Disruption, extraction, pharmaceutical Sonochemistry |
| Others | window blind, golf club, tattoo equipment, anilox roller, music equipment, weapons, electronics, etc. |
Feature:

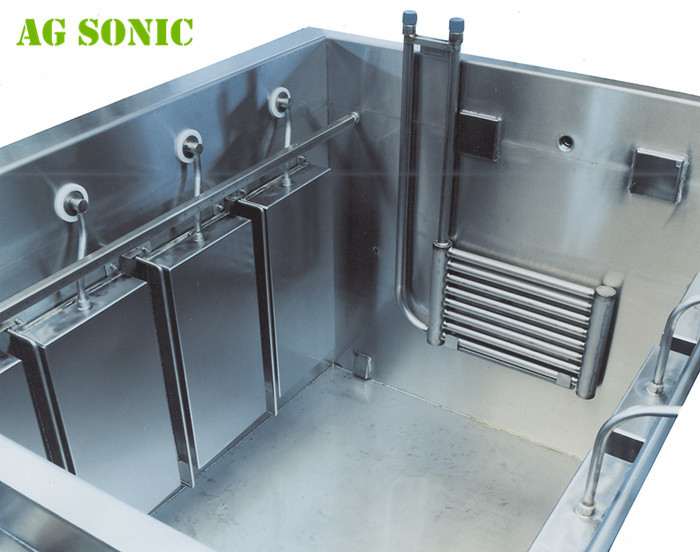

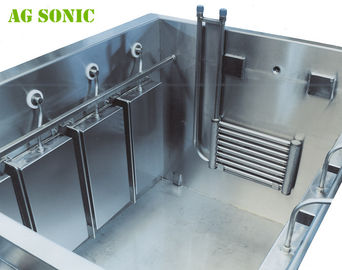

1) Immersible ultrasonic transducer unit can be installed in the tank by three ways: side, top and bottom.
The ultrasonic cleaning device is composed of the immersible ultrasonic transducer and generator. If ultrasonic cleaning machine of the standard model cannot be applied to a specific working environment, you can also make immersible ultrasonic transducer pack according to customizing special specifications. The working positions can be installed to fluid tank top side, bottom side or both side to achieve different cleaning effects..
2) It is of an all stainless steel structure, acid- and alkali-resistant, beautiful and durable. Strong acid- and strong alkali-resistant titanium plate material is used to reinforce and tighten welding..
3) It is welded with thick 316L stainless steel, which has good sealing performance..
4) It uses Japanese Fuji chip oscillator, which has high ultrasonic power..
5) The ultrasonic generator and immersible transducer are connected with separated high frequency wires, which is convenient for repair and maintenance..
6) It can work continuously for 24 hours, which is suitable for mass production.
Specifications:
| Model | Material | Transducers | Estimated volume | Box size | Cable lead-out |
Ultrasonic frequency | Ultrasonic power |
| (mm) | (pcs) | (L) | (mm) | (kHz) | (W) | ||
| TZ-1003 | SUS304/SUS316L | 3 | 15 | 250x150x100 | Rigid tube/ Flexible tube |
28/40 | 150 |
| TZ-1006 | 6 | 30 | 305x250x100 | 300 | |||
| TZ-1012 | 12 | 60 | 355x250x100 | 600 | |||
| TZ-1018 | 18 | 90 | 406x305x100 | 900 | |||
| TZ-1024 | 24 | 120 | 500x355x100 | 1200 | |||
| TZ-1030 | 30 | 150 | 550x406x100 | 1500 | |||
| TZ-1036 | 36 | 180 | 500x460x100 | 1800 |
Our service:
1. Warranty:
12 months warranty for AG SONIC ultrasonic cleaner.
2. Lifetime technical support
If any technical problem during warranty time, replacement parts will be sent free of charge.
3. Advantage:
1, Reply your enquiry in 24 working hours.
2, Experienced staffs answer all your questions in fluent English.
3, OEM is available if the quantity is large.
4, We offer very competitive for all our products.
5, The most important thing is that our product of quality, our design is innovative, we choose industrial grade quality circuit board, we have advanced production line and have very strict quality control procedures, the failure rate is less than 2%, which is the lowest in this line.
4. Raw Material Inspection:
Most of our raw material suppliers are best ,our QC and engineers would make strict inspection of the raw material step by step to ensure quality product. Any unqualified material will be rejected to guarantee best quality.
it is the energy released by this collapse that will assist a detergent in breaking the bonds between parts and their soils.
5. 100% product inspection:
We QC team would check the production process to ensure machine 100% qualified. Each unit would be under testing at least 4hours before packed, and sales person will send inspection pictures for your checking.
