|Control:||Generator Control||Cleaning Typer:||Filter Cleane|
|Transducer:||Strong Power||Packing:||Export Carton Box|
submersible ultrasonic transducer,
ultrasonic transducer generator
1800W Submersible Water immersible Ultrasonic Transducer Generator For Cleaning Tank
AGSONIC specifically designed to clean the internals and externals of a ultrasonic cleaning machines are used by many manufacturers to clean injection moulds, dies and tools. ,fast and effectively. With the unique cleaning techniques this machine incorporates one large higvehicle radiators, industrial compressor radiator and hydraulic coolersh powered cleaning tank . Generators control , and pump and filtration system. Best cleaning the ultimate ultrasonic cleaner for vehicle radiators,

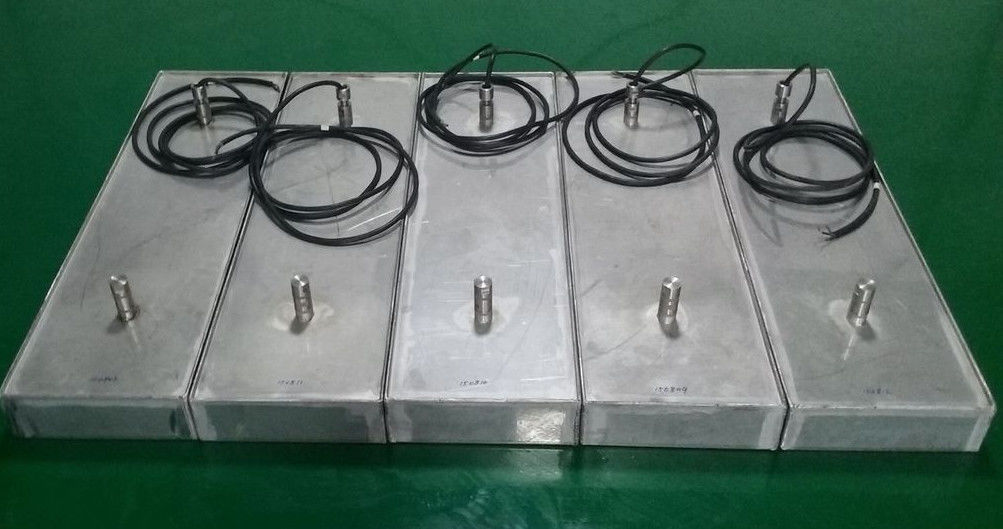

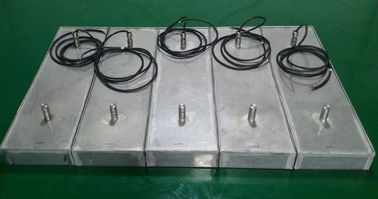

AGsonic immersible ultrasonic transducer box-embedded in your existing tank.
good quality-custom made size-chemicals resistance-moveable-convenient install
Immersible transducer generator specification :
|Model (AG models)||AG-06||AG-12||AG-18||AG-24||AG-30||AG-36|
|Ultrasonic transducer box size (mm)||L||305||355||406||500||550||500|
|Surface finishing||Hard-Cr plating treatment (20+microns)|
|Ultrasonic frequency||28KHz / 40KHz|
|Ultrasonic generator work separately control transducers|
|power suppy||AC 110V/220V or 220/240V, 1,13AMP|
*Custom made:68KHz/80KHz/120KHz and size are all available
AG series immersible ultrasonic transducer system includes transducer box and generator. It can be used when the standard model ultrasonic cleaner is inapplicable in the specific working conditions, besides may have the special specification made to order. The transducer box and generator are separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank. The transducer box is moveable in the tank for more convenience. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load.

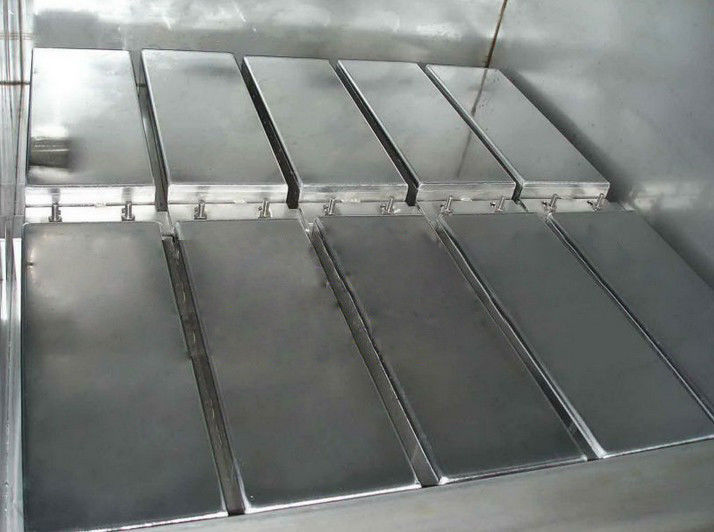

Immersible ultrasonic transducer units can be installed in the tank by three ways:side and/or bottom mounted or top mounted depending on the tank geometry.. The specification of transducer boxes are available for custom made.
Industrial Medical Sonicator Cleaner
Ultrasonic immersible transducer cleaner applied ranges:
Machinery industry: Removing rust and grease for Machinery Parts, Engine, carburetor and automobile parts cleaning, Filter. Clear filter, especially in the railway industry, for degreasing decontamination conditioned train cars, each member of the front of the train rust, oil, and rust, very suitable
Surface treatment industry: Degreasing derusting before plating, cleaning before Ion plating, Metal workpiece surface activation treatment, phosphating, remove carbon deposition, oxidation and polishing paste
Q: What are the advantages of AGsonic ultrasonic cleaner over traditional cleaning methods?
A:1. minimize the use of manual labor
· 2. make cleaning and degreasing without the use of organic solvents
· 3. clean hard to reach areas of products and remove all types of dirt
·4. shorten the processes such as extraction, dispersion, purification, chemical reactions
·5. eliminates costly mechanical and chemical cleaning of heat exchangers
Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects.
28kHz frequency is stronger, better for car/motor/truc parts clean (remove oils, grease, pastes, etc. )
40kHz is better for pcb boards, electronic parts, etc.
Higher precision goods, higher frequency.
Q: Can ultrasonic cleaning damage parts?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe. No damage to your daily objects.
