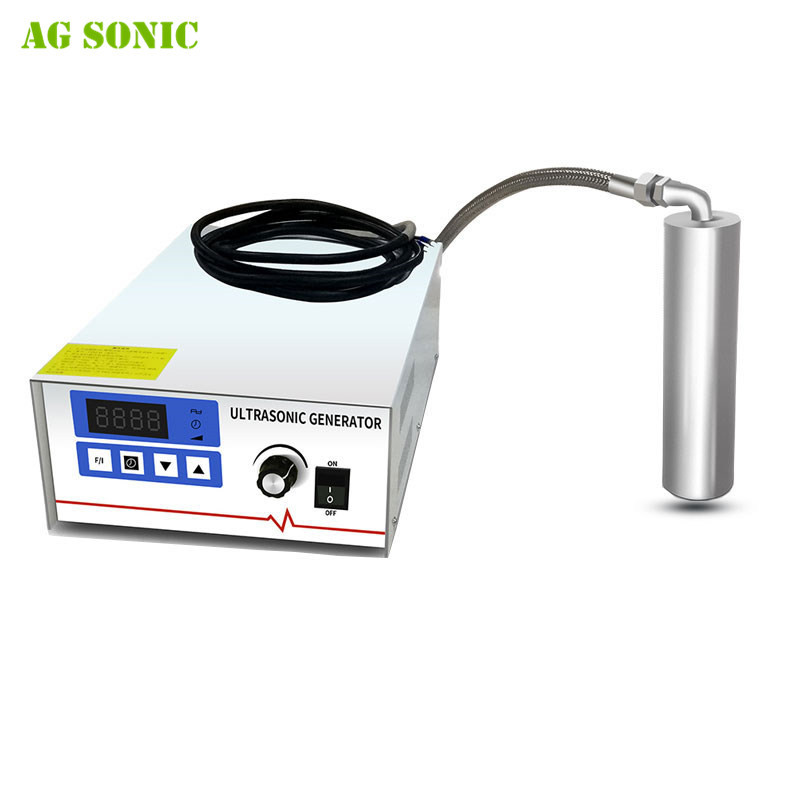

150W Ultrasonic Transducer Tube for Laboratory Use 28K 40K 80K

Basic Information
Place of Origin: China
Brand Name: AG SONIC
Certification: CE
Model Number: TZB-1003
Minimum Order Quantity: 1unit
Price: negotiation
Packaging Details: 1unit/wooden case
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 300units/month
Category: Ultrasonic Transducer Tube Frequency: 28/40/80khz
Box Material: SUS304/SUS316L Control: Separate Generator
Usage: For Laboratory Use Warranty: 1 Year
High Light:

submersible ultrasonic transducer


ultrasonic transducer generator


150W Ultrasonic Transducer Tube for Laboratory Use 28K 40K 80K


Apart from the immersible ultrasonic transducer plate for car parts cleaning, we also can customize the ultrasonic transducer tube for laboratory use. Welcome to inquiry.



1. Biological industry: extraction of essential oil, Chinese medicine, etc.

2. Laboratory: Cell discruption, product discruption, etc.

3. Chemical industry: ultrasonic emulsification

4. Water treatment industry: pollution degradation

5. Food and cometics: make wine taste better



1.minimize the use of manual labor
2.make cleaning and degreasing without the use of organic solvents
3.clean hard to reach areas of products and remove all types of dirt
4.shorten the processes such as extraction, dispersion, purification, chemical reactions
5. eliminates costly mechanical and chemical cleaning of heat exchangers

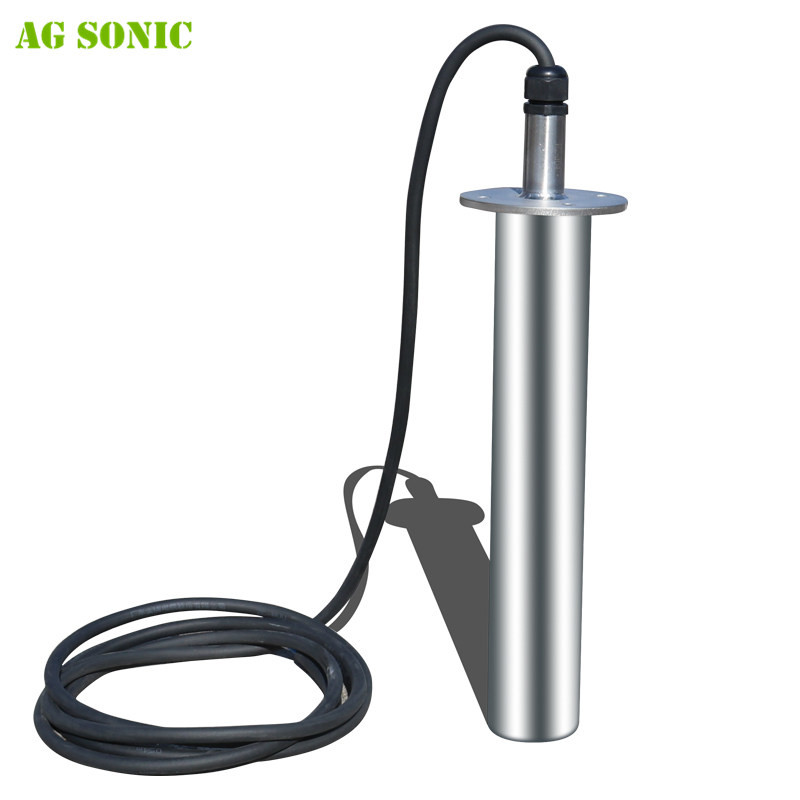

Immersible transducers can be place wherever you need in you existing tanks. This units gives you complete freedom to design specialized cleaning setup. (Upgrade pre soak tank with Ultrasonic Immersible transducers). Each immersible transducers is fabricated from 304 / 316 stainless steel. With welded seams & stainless steel fitting these hermetically sealed modular component are available in standard sizes. Other size can be custom built for special application for more space saving. Flat transducers plates can be built into the tank bottom or side walls.




Model Material Transducers Estimated volume Length Diameter Ultrasonic frequency Ultrasonic power
(mm) (pcs) (L) (mm) (mm) (kHz) (W)
TZB-1003 SUS304/SUS316L 3 15 180 51 28/40 150
TZB-1006 6 30 300 51 300
TZB-1012 12 60 550 51 600
TZB-1018 18 90 750 51 900
TZB-1024 24 120 1000 51 1200
TZB-1036 36 180 1532 51 1800





Industry   Cleaning objects
machinery   Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools
electronics   PCB board, electronic parts, TV parts, computer parts
Auto industry   engine parts, gear box, shock absorber, auto nozzle, cylinder, valve
Plating& painting   polishing parts, SUS cutter, tableware, plating
Food industry   Oven tray, boiler, bottles, bottle cap, filters
Optical& watch maker

optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band,

watch cover, watch hand

others   seal, flapper, coins, pottery, bank card, IGBT



Emulsification and Dispersion
