| Place of Origin: | China |
|---|---|
| Brand Name: | AG SONIC |
| Certification: | CE |
| Model Number: | TZ-1036 |
| Minimum Order Quantity: | 1set |
| Price: | negotiation |
| Packaging Details: | 1unit/wooden case |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 300units/month |
| Ultrasonic Transducers: | 36pcs | Frequency: | 28KHz |
|---|---|---|---|
| Box Material: | SUS304/SUS316L | Ultrasonic Power: | 1800W |
| Cable Lead-out: | Rigid Tube And Flexible Tube | Pack Size: | 500x460x100mm |
| High Light: | submersible ultrasonic transducer,ultrasonic transducer generator |
||
Immersible Ultrasonic Transducers / Submersible Ultrasonics Cleaners
Brief Introduction of the immersible ultrasonic transducers:
Immersible ultrasonic transducers are sealed stainless steel enclosures which allow for adding ultrasonics to parts cleaning new tanks or adding onto existing tanks, equipment and systems.
The number and placement of the submersible ultrasonic cleaning transducers is primarily determined by the volume of liquid in the tank, geometric layout of the existing tank, and load size of the parts. Depending on the size of the tank and parts cleaning application, the Watts of ultrasonic power per gallon or Watts/gal can vary from 30 to 100+ W/gal.
How to install the ultrasonic transducers:

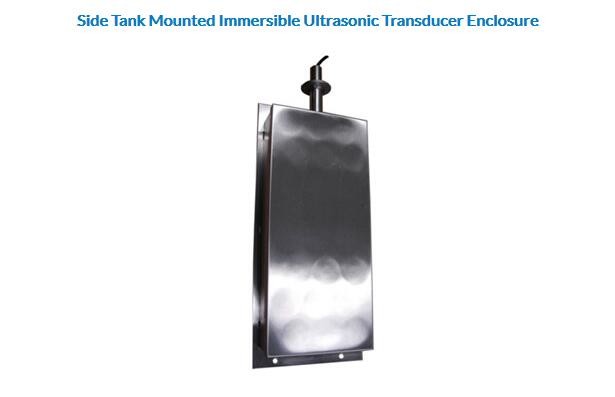

The immersible ultrasonic transducers can be mounted on the sides or bottoms of the parts washing/cleaning tanks, depending upon their geometry. In general, side mounting is recommended for tanks where the depth is more than two times the smallest of the length / width and side mounting the ultrasonics reduces the debris and foreign material from settling on the top of the transducer box which will reduce the ultrasonic effectiveness.
Specification details:

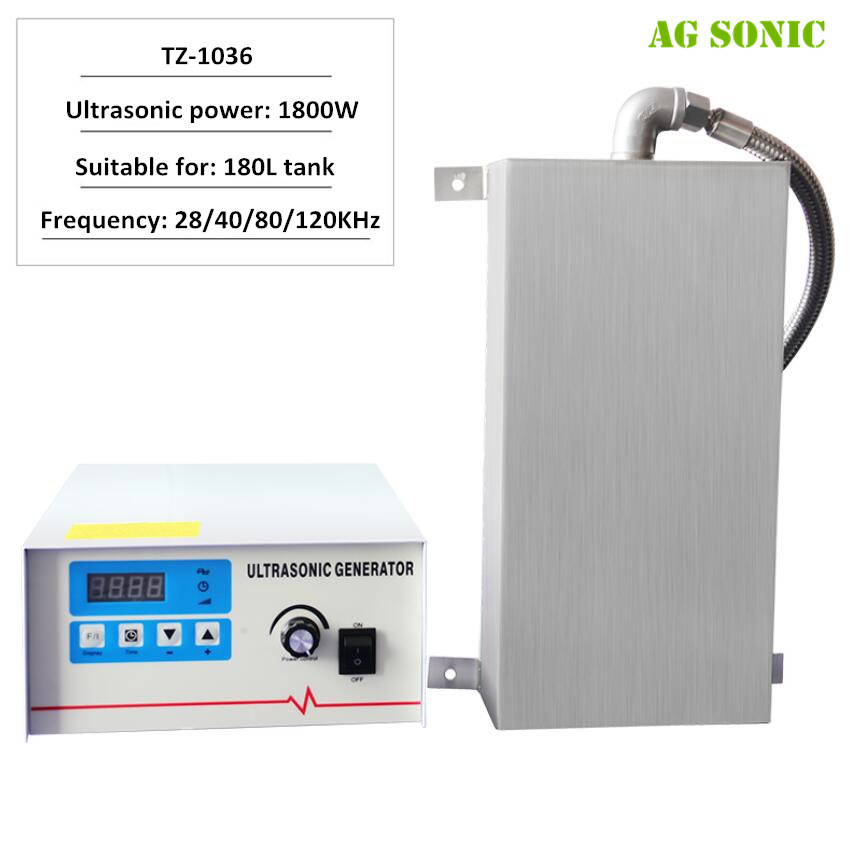

Ultrasonic transducer box size (mm):550x450x100(LXWXH)
Housing material: SUS304/SUS316L
Surface finishing: Hard-Cr plating treatment (20+microns)
Ultrasonic frequency: 28KHz / 40KHz
Ultrasonic transducers: 36pcs
Ultrasonic power: 1800W
Electronic generator: JM-1800, Ultrasonic generator work separately control transducers
power supply: AC 110V/220V or 220/240V, 1,13AMP
Specifications:
| Model | Material | Transducers | Estimated volume | Box size | Cable lead-out |
Ultrasonic frequency | Ultrasonic power |
| (mm) | (pcs) | (L) | (mm) | (kHz) | (W) | ||
| TZ-1003 | SUS304/SUS316L | 3 | 15 | 250x150x100 | Rigid tube/ Flexible tube |
28/40 | 150 |
| TZ-1006 | 6 | 30 | 305x250x100 | 300 | |||
| TZ-1012 | 12 | 60 | 355x250x100 | 600 | |||
| TZ-1018 | 18 | 90 | 406x305x100 | 900 | |||
| TZ-1024 | 24 | 120 | 500x355x100 | 1200 | |||
| TZ-1030 | 30 | 150 | 550x406x100 | 1500 | |||
| TZ-1036 | 36 | 180 | 500x460x100 | 1800 |
Features:
Advantages:
Place on wall (flexible/rigid tube or flange hole)
Place on corner (suitable in the absence of lateral space)
Place on bottom (flexible/rigid tube or flange hole)
Applications:
| Industry | Cleaning objects | |
| machinery | Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools | |
| electronics | PCB board, electronic parts, TV parts, computer parts | |
| Auto industry | engine parts, gear box, shock absorber, auto nozzle, cylinder, valve | |
| Plating& painting | polishing parts, SUS cutter, tableware, plating | |
| Food industry | Oven tray, boiler, bottles, bottle cap, filters | |
| Optical& watch maker |
optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band, |
|
| others | seal, flapper, coins, pottery, bank card, IGBT |
Ways to install the immersible ultrasonic transducers:
