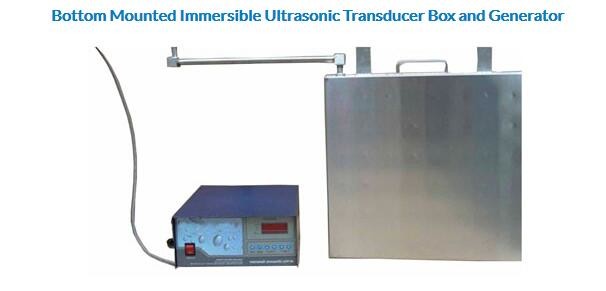

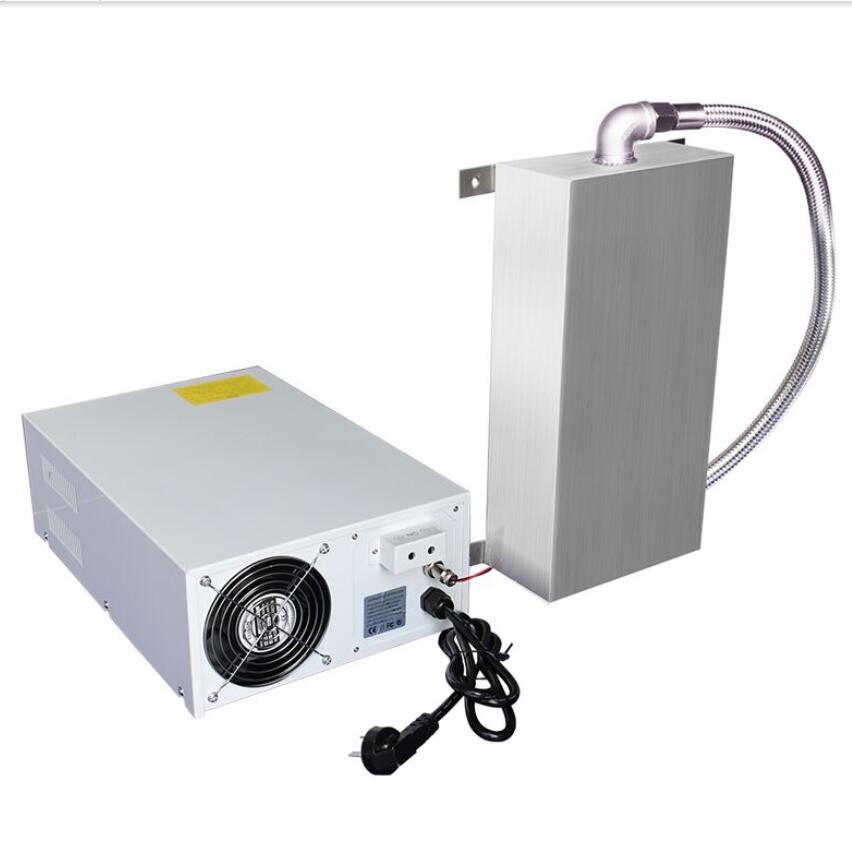

Bottom Mounted Immersible Ultrasonic Transducer Box and Generator 28K 1800W

Basic Information
Place of Origin: China
Brand Name: AG SONIC
Certification: CE
Model Number: TZ-1036
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: 1unit/wooden case
Delivery Time: 10 working days
Payment Terms: T/T
Supply Ability: 300units/month
Ultrasonic Transducers: 36pcs Frequency: 28KHz
Box Material: SUS304/SUS316L Ultrasonic Power: 1800W
Cable Lead-out: Rigid Tube And Flexible Tube Pack Size: 500x460x100mm
High Light:

submersible ultrasonic transducer


ultrasonic transducer generator

Bottom Mounted Immersible Ultrasonic Transducer Box and Generator 28K 1800W

Brief Introduction of the immersible ultrasonic transducers:
Immersible ultrasonic transducers are sealed stainless steel enclosures which allow for adding ultrasonics to parts cleaning new tanks or adding onto existing tanks, equipment and systems.
The number and placement of the submersible ultrasonic cleaning transducers is primarily determined by the volume of liquid in the tank, geometric layout of the existing tank, and load size of the parts. Depending on the size of the tank and parts cleaning application, the Watts of ultrasonic power per gallon or Watts/gal can vary from 30 to 100+ W/gal.
How to install the ultrasonic transducers:
The immersible ultrasonic transducers can be mounted on the sides or bottoms of the parts washing/cleaning tanks, depending upon their geometry. In general, side mounting is recommended for tanks where the depth is more than two times the smallest of the length / width and side mounting the ultrasonics reduces the debris and foreign material from settling on the top of the transducer box which will reduce the ultrasonic effectiveness.
What to clean?
These submersible ultrasonics can be made in 25/28 kHz frequency, for tough to clean parts like engine blocks and mold cleaning burnt on carbon, and 40 kHz frequency for general parts cleaning including precision machined components, in an agitated immersion parts washer or stationary metal sided tanks. Immersibles are not typically added to polypropylene, PVC, PVDF or other plastic based tanks as the plastic absorbs the ultrasonic energy thereby reducing the cavitation energy delivered to the part surface.

ModelMaterialTransducersEstimated volumeBox sizeCable
Ultrasonic frequencyUltrasonic power
(mm)(pcs)(L)(mm) (kHz)(W)
TZ-1003SUS304/SUS316L315250x150x100Rigid tube/
Flexible tube


  1. Submersed in liquid, by bottom-mounting or wall-mounting
  2. Replaceable, expandable, renewable by submersible transducer module
  3. Customized to solve different problems with different frequency, power, shape, size etc accordingly
  4. Multi-frequencies are available by identical transducer or different models of transducer
  5. Full SUS304 to extand the lifespan
  6. For PCB,Electronic parts cleaning


  1. Material: SUS304/316L with 2.5mm thickness
  2. Durability and resistance: coated with Hard Chrome plating
  3. High intensity and efficiency BLT type transducers
  4. Easy and convenient to put in different tanks
  5. Various install methods:

    Place on wall (flexible/rigid tube or flange hole)
    Place on corner (suitable in the absence of lateral space)
    Place on bottom (flexible/rigid tube or flange hole)


Industry Cleaning objects
machinery Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools
electronics PCB board, electronic parts, TV parts, computer parts
Auto industry engine parts, gear box, shock absorber, auto nozzle, cylinder, valve
Plating& painting polishing parts, SUS cutter, tableware, plating
Food industry Oven tray, boiler, bottles, bottle cap, filters
Optical& watch maker

optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band,
watch cover, watch hand

others seal, flapper, coins, pottery, bank card, IGBT

    Ways to install the immersible ultrasonic transducers:
    Bottom Mounted Immersible Ultrasonic Transducer Box and Generator 28K 1800W 0
