40K 1800W Submersible Ultrasonic Transducer for the Exsisting Tank

Basic Information
Place of Origin: China
Brand Name: AG SONIC
Certification: CE
Model Number: TZ-1036
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: 1unit/wooden case
Delivery Time: 10 working days
Payment Terms: T/T
Supply Ability: 300units/month
Ultrasonic Transducers: 36pcs Frequency: 28KHz
Box Material: SUS304 Ultrasonic Power: 1800W
Advantage: Save Cost Pack Size: 500x460x100mm
High Light:

submersible ultrasonic transducer

,

ultrasonic transducer generator


40K 1800W submersible ultrasonic cleaning transducers for the exsisting tank



Submersible Ultrasonic cleaning transducers:



Common configurations:

Since submersible ultrasonic boxes are most commonly added to existing stainless steel and other metallic based tanks, the boxes and ultrasonic power are made to fit such tanks. We can easily make our immersible ultrasonics into any tank configuration sizing required for your application with little to no additional custom size pricing.



Specifications:

TZ-1003 SUS304/SUS316L 3 15 250x150x100 Rigid tube/
Flexible tube
28/40 150
TZ-1006 6 30 305x250x100 300
TZ-1012 12 60 355x250x100 600
TZ-1018 18 90 406x305x100 900
TZ-1024 24 120 500x355x100 1200
TZ-1030 30 150 550x406x100 1500
TZ-1036 36 180 500x460x100 1800



Features:

  1. Submersed in liquid, by bottom-mounting or wall-mounting
  2. Replaceable, expandable, renewable by submersible transducer module
  3. Customized to solve different problems with different frequency, power, shape, size etc accordingly
  4. Multi-frequencies are available by identical transducer or different models of transducer
  5. Full SUS304 to extand the lifespan
  6. For PCB,Electronic parts cleaning



Brief introduction of the submersible ultrasonic cleaning systems:

For customers who would like to improve the cleaning power of their existing tank by installing an ultrasonic cleaning device, AG SONIC's submersible system may be the most economical and efficient choice on the market.

However, before buying a submersible system, please consider the tank you already have and its material of construction.

Ideally, your existing tank should be manufactured of stainless steel or metal of some kind.



Plastic tanks are unsuitable for ultrasonic applications because they dampen the ultrasonic waves and so reduce the available ultrasonic cleaning power from anything between 60-90 per cent.

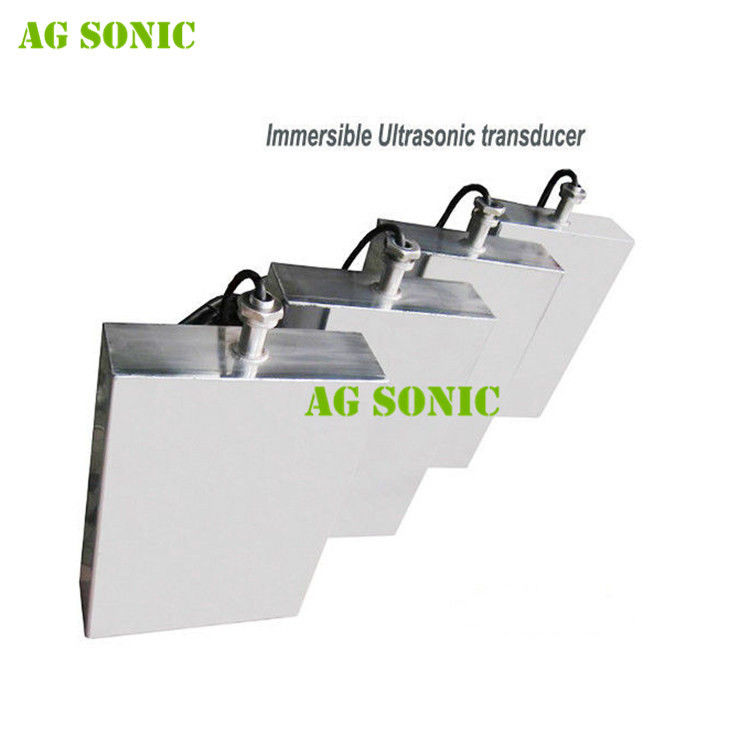

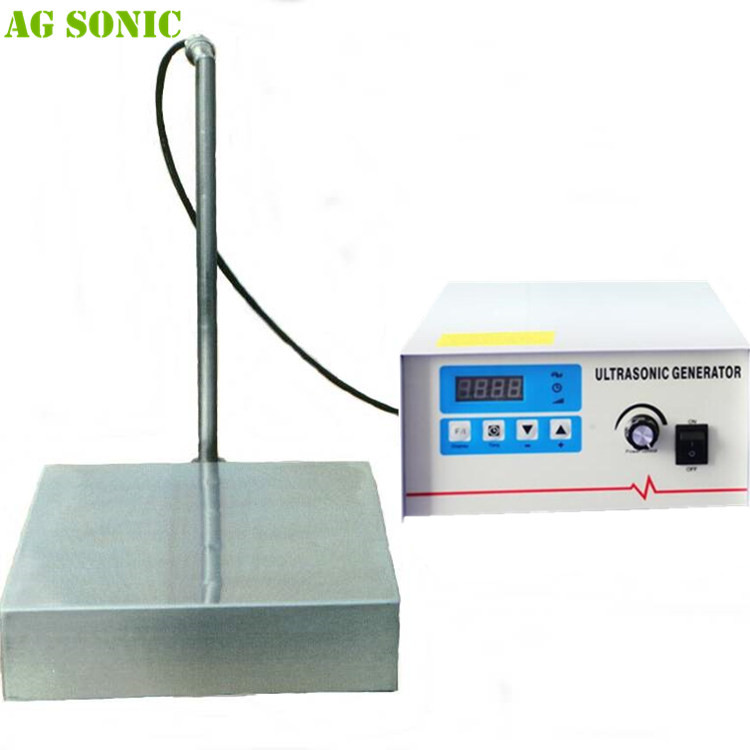

Submersible (or immersible) cleaning systems are powered by ultrasonic generators that are housed in transducer packs made from either 304 or 316 stainless steel. These packs contain a double stack of individual high-efficiency ultrasonic transducers. They are usually mounted to the bottom or the side walls of an existing tank so as to promote evenly-distributed ultrasonic cleaning in the tank in which they are submerged. The transducer packs come with special mounting tabs with holes and are designed to be attached permanently to the tank.

Submersible systems come with 28kHz, 40kHz, 80kHz, or CROSSFIRE Multiple Frequency Ultrasonic Systems.

The frequency you select will determine the size of the transducer pack you install. Most measure 3-4" tall and this corresponds to the amount of space that you will lose within your existing tank once the submersible cleaning system is installed.



Common Applications – Advantages of Immersible Ultrasonic Cleaning Transducers


Applications:

Industry   Cleaning objects
machinery   Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools
electronics   PCB board, electronic parts, TV parts, computer parts
Auto industry   engine parts, gear box, shock absorber, auto nozzle, cylinder, valve
Plating& painting   polishing parts, SUS cutter, tableware, plating
Food industry   Oven tray, boiler, bottles, bottle cap, filters
Optical& watch maker

optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band,
watch cover, watch hand

others   seal, flapper, coins, pottery, bank card, IGBT



FAQ:

How to install the ultrasonic transducers:
The immersible ultrasonic transducers can be mounted on the sides or bottoms of the parts washing/cleaning tanks, depending upon their geometry. In general, side mounting is recommended for tanks where the depth is more than two times the smallest of the length / width and side mounting the ultrasonics reduces the debris and foreign material from settling on the top of the transducer box which will reduce the ultrasonic effectiveness.

What to clean?
These submersible ultrasonics can be made in 25/28 kHz frequency, for tough to clean parts like engine blocks and mold cleaning burnt on carbon, and 40 kHz frequency for general parts cleaning including precision machined components, in an agitated immersion parts washer or stationary metal sided tanks. Immersibles are not typically added to polypropylene, PVC, PVDF or other plastic based tanks as the plastic absorbs the ultrasonic energy thereby reducing the cavitation energy delivered to the part surface.
