|Material:||Sus304||Application:||Submersible Ultra Sonic|
|Mobility:||Cleaing Tank||Cleaning Typer:||Wastewater Treatment Facility|
|Customize Serivce:||Provide All Customize Serivce||Transducer:||Immersible Transducer|
ultrasonic vibration transducer,
ultrasonic transducer generator

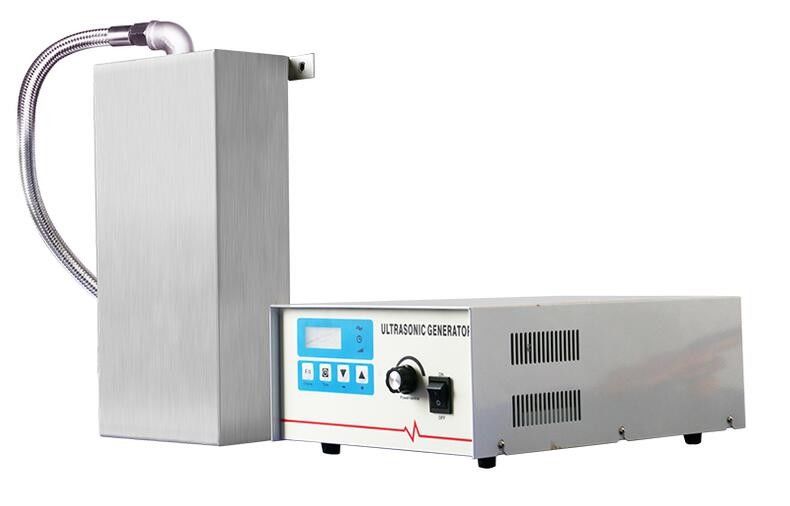

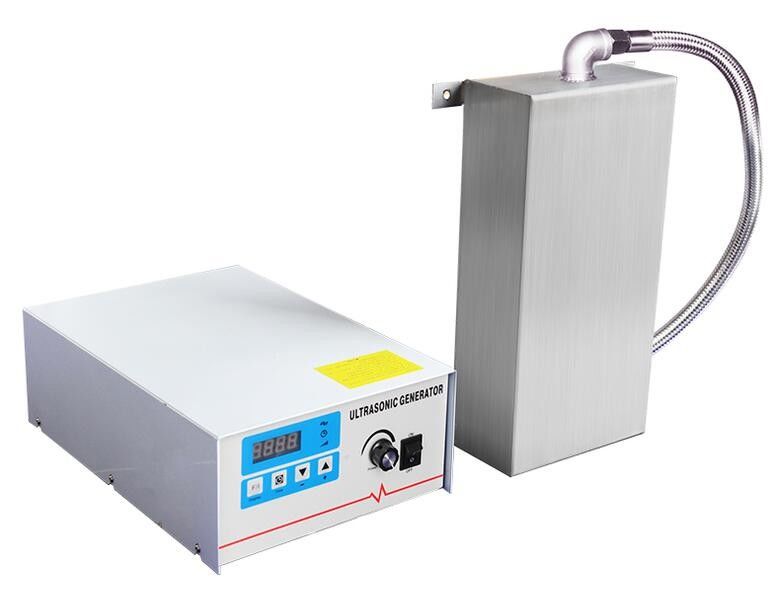

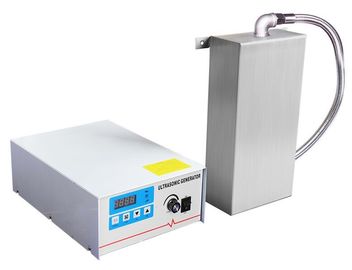

Ultrasonic Cleaning Tanks In Producing Wine And Olive Oil Transducer Pack With Generator
Enhance Your Cleaning Process With immersible transducers
Deep cleaning ultrasonic immersible transducers give you the ability to add the ultrasonic advantage to your existing cleaning application. We bond and wire the immersible transducer inside a durable stainless steel container, and seal it with a stainless steel lid. This gives you the ability to "drop-in" transducers to an existing tank or application.
Ultras Wave Explanation
Pressure waves generated by high-frequency sound waves create micron-size bubbles in the aqueous cleaning solution. This bubble is shown just before implosion, which releases a tremendous amount of energy for cleaning
Our immersible transducer is custom designed for your particular application and tank size. It can be incorporated into existing tanks of any size and converted it into ultrasonic tank. It is controlled by our unique Pulse Swept Please contact us for specific information on how we can create one for your Immersible Transducer needs.
The range of immersible transducers come in various sizes ultrasonic powers and operating frequencies. We can select the size you need based upon your cleaning requirements and tank size. The immersible ultrasonic transducer systems are portable and can be moved from one tank to another if required. They are most suited to when you have already a tank installed in your production process or we can supply the complete system including the tank.
Immersible ultrasonic transducers are designed for use in new or existing cleaning tanks to improve the speed and effectiveness of rinsing cleaning and other processes. Single or multi- module units can be custom designed for tanks of any size.
There are pros and cons to both entry routes. Many customers prefer to buy the riser-style transducer packs because they do not want to make a hole in the bottom of their tank. The main disadvantage to using risers is that they may interfere with the cover or other system parts that are installed on the top. Most AGSONIC submersibles are custom manufactured in order to maximize the effectiveness of the ultrasonic system and to minimize possible dead spots. We are the only manufacturer to offer this service at no additional charge. We also have a line of standard ultrasonic submersible systems available.
If you think your existing cleaning tank may be suitable to adapt to ultrasonic cleaning please contact our technicians at AGSONIC and we will be pleased to provide you with more information and a quotation for a custom-made submersible system.
Immersible transducer Types:
Bottom Monunted -over Top Junction Box
Bottom Mounted with dual Bulkhead
Bottom Mounted With single Bulkhead
Bottom Mounted With Over The Top Pipe
Side Mounted With Over the Top Pipe
Side Mounted With Bulkhead Thru Side Wall
Mounting may be either wall or bottom mounted, depending on the application. The units are shipped fully assembled and require only simple insertion into the tank prior to operation.
Since submersible ultrasonic boxes are most commonly added to existing stainless steel and other metallic based tanks, the boxes and ultrasonic power are made to fit such tanks. We can easily make our immersible ultrasonics into any tank configuration sizing required for your application with little to no additional custom size pricing.
Brief Introduction of the immersible ultrasonic transducers:
Immersible ultrasonic transducers are sealed stainless steel enclosures which allow for adding ultrasonics to parts cleaning new tanks or adding onto existing tanks, equipment and systems.
The number and placement of the submersible Transducer Pack
|Model||Material||Transducers||Estimated volume||Box size||Cable
|Ultrasonic frequency||Ultrasonic power|
Enhance the cleaning power of your existing tank with AGSONIC Submersible Ultrasonic Cleaning Systems
For customers who would like to improve the cleaning power of their existing tank by installing an ultrasonic cleaning device, AGSONIC's submersible system may be the most economical and efficient choice on the market.
However, before buying a submersible system, please consider the tank you already have and its material of construction.
Ultrasonic transducer elements sealed in a liquid-tight housing are an option to transducer elements permanently bonded to the side or bottom of a cleaning tank. The major benefits of immersible ultrasonic transducers are that they are easy to service and can be added to existing equipment, often without extensive tank modifications. Ultrasonics unique technology is offered in the immersible transducer format. This includes standard individual frequencies from 28 kHz to 120 kHz as well as multiple frequencies in a single or multiple units.
Immersible Transducer Working In Tank :
