|Frequency:||28KHZ/40KHZ/80khz||Name:||Ultrasonic Cleaner 100L|
|Timer:||1S-99hours Adjustable||Heater:||20-95℃ Adjustable|
|Machine Voltage:||AC220/380V, 3phase||Tank:||Ultrasonic And Drying Tank|
|Automatic:||Car Parts Ultrasound Machine||Sovent Recycle:||Filter System Optional To Move Oil|
industrial ultrasonic cleaning machine,
industrial ultrasonic washing machine
Ideal to clean rust,carbon,pait,heavy oil,fruit agricultural chemicals and other things hard to clean, without damage to parts inside tank.
Industrial ultrasonic cleaning mahine with filtration system, remove heavy oil from the surface.
Avoid re-pollution for your goods.
Liquid cycle can save cost and improve efficiency.

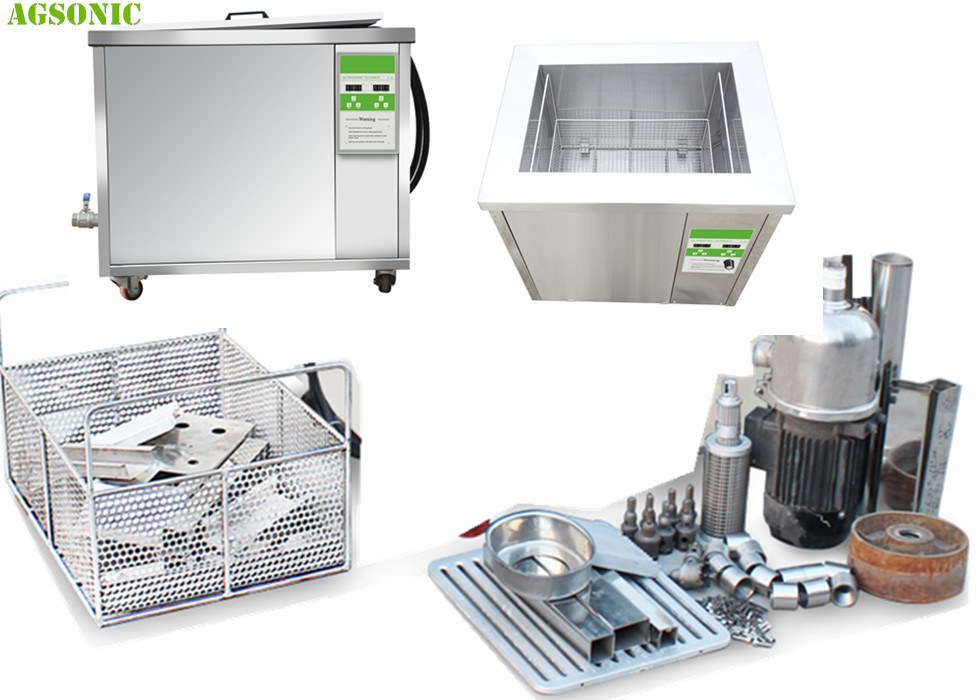

Machine equipment system includes replaceable transducer box and generator. The transducer box and generator can be both build-in or separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank, one side or both side or bottom mounted inside the tank. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load. Specification of tank dimension and transducer boxes are custom made available. Either for mould of parts cleaning can receive perfect cleaning efficiency. Stainless steel basket is optional.
Application in Diesel Particulate Filter washing car part and metel part as below.
Automatic manufacturing semi-product and product cleaning
Automatic repair cleaning including engine,gear box,connecting rod,oil pump,crust,disc break,turbo supercharger,fuel injector,gearing,bearing and other components
Cleaning product after processing by boring and grinding machines
Ideal for car parts washing, engine block cleaning,workshop sonic bath cleaning.
Ideal to clean rust,carbon,pait,heavy oil, without damage to parts inside tank with suitable cleaning liquid.
|Specifications for ultrasonic cleaner AG-300ST|
|Tank material||2mm SUS304|
|Control||External generator, more stable|
|Optional||Oil filter system, pneumatic lift, rinsing tank, etc.|
AGsonic 3 stage unit (multi-tank) ultrasonic cleaner machine
|jewelry||Jewelry, diamond, gold, silver products,|
|machinery||Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools|
|electronics||PCB board, electronic parts, TV parts, computer parts|
|Auto industry||engine parts, gear box, shock absorber, auto nozzle, cylinder, valve|
|Dental& Medical||dental tools, medical tools, injector, surgery tools, dropper, glass container|
|Plating& painting||polishing parts, SUS cutter, tableware, plating|
|Food industry||Oven tray, boiler, bottles, bottle cap, filters|
|Optical& watch maker||optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band, watch cover, watch hand|
|textile||spinneret plate, rubber parts, plastic molds, toy|
|others||seal, flapper, coins, pottery, bank card, IGBT|
AGsonic make rinsing tanks and dryer tanks to dryer after rinsing, such as for tank capacity of 50L,100L,150L,200L or even bigger tank. Multi tanks with different functions by each unit work together to approach maximum cleaning efficiency.
Take 3-tank ultrasonic cleaner as example:
1st ultrasonic cleaning tank
2nd rinsing tank after rinsing(or add a second rinsing tank for thorough rinsing)
3rd dryer tank
Specification details as follows:
1st ultrasonic tank: installed with ultrasonic cleaning transducers to operate cleaning process by ultrasonic transducer vibration.
2nd Rinsing tank: It has a continues supply of water by supplying water from the bottom, and dirty liquid flow away from the surface of the liquid.
Q. "Do parts need to be rinsed after ultrasonic cleaning?"
A. Yes. Since detergents are used in the ultrasonic cleaning bath, these detergents must be removed before it dries onto the surface of the parts, leaving a residue of detergent behind. For some rare applications, such as the automotive industry, this is acceptable. However, the majority of AGSONIC customers would find detergent residues unacceptable. Also, if parts are rinsed in tap water, water spots from the minerals in the water will be present after drying. If this spotting is unacceptable, then rinsing in deionized water will be required.
Q. "How many tanks or process steps will my application require?"
A. The number of process steps required will always be the same; ultrasonic cleaning, rinsing, and drying. If you already have rinsing and drying means, then only a single ultrasonic cleaning tank, such as our table-top systems or single-tank consoles, would be required. If you do not have rinsing and drying means, then a multi-stage cleaning system which includes multiple processing tanks would be required. AGSONIC offers industrial-grade 3-tank systems, precision-grade 4-tank systems, and ultra-clean grade 5 and 6 tank systems. If greater than 6 tanks is required, AGSONIC can custom-manufacture a system with any number of processing tanks.
Q. "Will ultrasonic cleaning damage my parts?"
A. Certain softer metals can be damaged by ultrasonic cleaners. For example, highly-polished aluminum will be visibly damaged after only a few minutes in an ultrasonic cleaner, and items as hard as glass can also be damaged after extended ultrasonic exposure. However, there are processing techniques, such as continuous or intermittent oscillation, which can completely prevent such damage from occurring. This is why AGSONIC recommends that such parts be test cleaned prior to purchasing a system. Test cleaning will give AGSONIC the information it needs to develop a complete process that will prevent damage to the parts, while simultaneously getting the part as clean as required. Additional information can be found on our ultrasonic damage web page.
