Material: | Stainless Steel 304 | Option: | Carburetors / Pistons Cleaning |
---|---|---|---|
Size: | 30L Industrial Ultrasonic Cleaner | Timer:: | 1-30Minutes |
Voltage:: | 110/220V | Ultrasonic Power: | 500W |
High Light: | 30Minutes Industrial Ultrasonic Cleaner,Pistons Industrial Ultrasonic Cleaner,30L Carburetor Ultrasonic Cleaner |

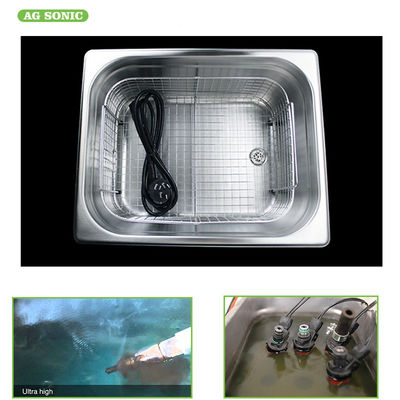

Large Capacity 10L Industrial Ultrasonic Cleaner For Carburetor / Pistons Cleaning
Auto Parts Cleaning machine
We are manufacturing and supplying of Automotive Ultrasonic Cleaners. We offer a wide range of ultrasonic cleaners. These are Single or Multistage Ultrasonic Cleaners, which are both manually operated & fully automated systems. Further, the machine is widely used and appreciated by our clients due to its professional dependability and user friendliness.
As the temperature of the cleaning solutions is directly related to the cavitational effect of the ultrasonic energy the Ultrasonic cleaners are delivered with built-in electrical heating elements complete with thermostatic controls. In this way an optimum combination of cleaning product (solution), temperature and ultrasonic power can be reached.
ULTRASONIC CLEANING
Ultrasonic cleaning uses sound waves to create millions of small bubbles in a tank of cleaning solution. The parts to be cleaned are submerged in the solution and as the bubble are formed and “explode” they remove any dirt, grease, carbon etc. This method also works very well. The one disadvantage that I noticed with ultrasonic cleaning is that aluminum parts do not come out of the cleaning tank looking like new. They seem to have some discoloration to them even though they were clean. If you are going to paint the parts then this shouldn't matter.
We are the manufacturers of custom built Ultrasonic Cleaning machines for degreasing and cleaning of auto parts for OEMs , work shops , job works and auto-restoration industry. We expertise in providing customized designed solution for auto parts cleaning.
Ultrasonic cleaning is a water based cleaning solution where ultrasonic transducers are used to provide cavitation agigation insude the tank which has waer and suitable chemical to clean oil,dirt,debree,grease and other contaminants from various types of auto components.
We expertise in all types of ancilary parts washing like brakepads, steering coloumns, crank shats, pistons, valves, gaskets, clutch pads, mirrors and many more.
An ultrasonic injector cleaner and injector flow bench.
The preferred method of cleaning injectors. Cycles the fuel injectors while the fuel injector tips are immersed in an ultrasonic bath, which uses an environmentally friendly cleaning fluid to clean the fuel injectors. The flow bench portion also allows a user to perform a flow test before and after cleaning, and it allows the user to observe the fuel injector spray pattern. This method requires that the fuel injectors be removed from the engine
How do I get the best ultrasonic cleaning?
There are many considerations important to ultrasonic cleaning. Optimising these variables will produce the best cleaning. The most important decisions to be made are choosing the proper cleaning solution, cleaning at the right temperature for the correct amount of time, and choosing the right size and type of ultrasonic cleaner.
Is a special solution required for cleaning?
Soils adhere to the parts... if they didn't, the soil would just fall off the parts! The purpose of the solution is to break the bonds between parts and their soils. Water alone has no cleaning properties. The primary purpose of the ultrasonic activity (cavitation) is to assist the solution in doing its job. An ultrasonic cleaning solution contains various ingredients designed to optimise the ultrasonic cleaning process. For example, increased cavitation levels result from reduced fluid surface tension. An ultrasonic solution will contain a good wetting agent or surfactant.
Industrial Ultrasonic Parts Cleaner
Using aqueous (water based) detergents, AGSONIC ultrasonic equipment effectively removes oil, swarf and other contaminants from machine parts, tooling, jigs, tubes and many others. This maximises throughput, increasing productivity and eliminating needs for re-cleans, which makes it one of the most effective and environmentally friendly ways for cleaning these parts and components.
applications including the following and more:
Automotive Maintenance, Rebuilding and Restoration
Flood, Fire and Storm Damage Cleanup
Metallic and Ceramic Filter Cleaning
Printing Equipment Maintenance
General Maintenance Cleaning in Shop Environments
Medical Precision Cleaning
10l Ultrasonic cleaner Specifications:
Model | TB-200 |
Ultrasonic Frequency | 40,000 Hz |
Material | SUS304 |
Tank Capacity | 10.8L |
Ultrasonic Power | 200 W |
Heating power | 450W strong power, quick heating |
Timer | 1-30min adjustable |
Heater | 0-80C adjustable |
Unit Size | 325 x 265 x 280 mm ( L x W x H ) |
Tank Size | 300 x 240 x 150 mm ( L x W x H ) |
Package Size | 435 x 360 x 350 mm ( L x W x H ) |
N.W. | 7.4 kg |
G.W. | 8.5 kg |
Power Supply | AC 100 ~ 120V, 50 / 60Hz AC 220 ~ 240V, 50 / 60 Hz |
Features of the machine:
•Low maintainence machine
•Heavy duty cleaning systems
•Chemical friendly- SS Rust proof body
•Industrial guage farication, build to last
•One year warrenty on any manufacturing defect
•Completely customized to suit the cleaning requirement
•Less human interfearance and less scope of error
•Accurate and uniform cleaning everytime
Digital Series High Performance Ultrasonic Cleaning system offers a new dimension to your cleaning needs. The single chamber device is used to clean surgical instruments and other hardware with sonic energy in a water detergent solution.
All units are fabricated from solid stainless steel incorporating sweep frequency circuitry for a more uniform cleaning action.
Custom sized tanks are also available .
Applications include Surgical instruments, Laboratory items, Golf Club cleaning, Light fittings & automotive parts.
