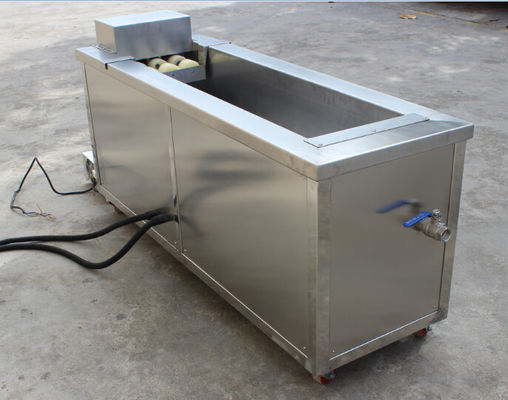

Anilox Cylinder Ultrasound Cleaner 1200 X 300 X 200 With Rotating System

Basic Information
Place of Origin: China
Brand Name: AG SONIC
Certification: CE
Model Number: T-48S
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 1unit/wooden case
Delivery Time: 20 working days
Payment Terms: T/T, Paypal
Supply Ability: 300units/month
Tank Material: SUS304/SUS316L Tank Size: 1200 X 300 X 200
Suit For: 1pcs, 2pcs, 3pcs Rollers Based On Your Needs Rotate Motor: Anilox Roller Cleaning
Ultrasonic Power: 1200W Function: Rotating System
Cleaning Time: 5-10minutes
High Light:

anilox roller cleaning machine

,

large capacity ultrasonic cleaner



Anilox Cylinder Ultrasound Cleaner 1200 X 300 X 200 With Rotating System



Tips for Cleaning Dirty Rollers Using Ultrasonic Anilox Roller Cleaners

Ultrasonic anilox roll cleaner is the most efficient device and method for anilox roll cleaning. This is a tested and proven method for cleaning most of the components which are tough to be cleaned in a normal way.

As ultrasonic cleaning technique is a fastest method that cleans up to 90% of the product, this is widely used strategy all around the world. Additionally there is no need to let the people watch the cleaning process as the ultrasonic anilox roller cleaning device which is employed for the task, handles it all on its own and provides labour saving benefits.

An ultrasonic anilox cleaning machine reaches to the depth of the roller and clears any residues of the ink or liquid from the holes, cervices, internal chambers which is nearly impossible to be cleaned efficiently with any other device.



As peculiar your printing system may be, and regardless of the quality and printing inks used, AG SONIC provides a cleaning solution that minimizes your ink consumption and its internal rejections for quality.

We specialize in the cleaning of anilox cylinders, and all types of printing tools and rollers, as our solution is focused on the specific softness required by each type of material.







The cleaning method of anilox roller ultrasonic cleaning machine:

Coat the concentrated detergent on the surface of anilox roller according to the clogging degree

After several hours, put the anilox roller into the ultrasonic cleaning tank

At last, rinsing the anilox roller by cleaned water

Or put the detergent into the cleaning tank directly, its ratio depends on the clogging degree,

Ultrasonic have perfect cleaning effect, which can keep the anilox roller as clean as its new, AG SONIC can make to order, pls provide the diameter of your anilox roller and its anix. Also the max length of it to make a customized service





Specifications:

OTHER MODELS AVAILABLE FOR REFERENCE

Model T-06S T-12S T-18S T-24S
Ultrasonic Power 300 W 600 W 900W 1200W
Ultrasonic Frequency 40Khz 40 Khz 40 Khz 40 Khz
Heating Power 400W 800W 1200W 1200W
Tank Size(mm) 360x175x120 800x320x100 1000x200x100 1200x320x150
Tank Material 316L stainless steel 316L stainless steel 316L stainless steel 316L stainless steel
Shell Material stainless steel stainless steel stainless steel stainless steel
Power supply

AC100V-120V,

AC220V-240V

AC100V-120V,

AC220V-240V

AC100V-120V,

AC220V-240V

AC100V-120V,

AC220V-240V

Product Dimension(mm) 400×220×360 840×520×680 1000×450×700 1520×370×700





Model T-30S T-36S T-48S T-72S
Ultrasonic Power 1500 W 1800 W 2400W 3600W
Ultrasonic Frequency 40Khz 40 Khz 40 Khz 40 Khz
Heating Power 1800W 2400 W 2400 W 3000W
Tank Size(mm) 1450×450×250 1650×450×250 2200×550×300 2500×550×300
Tank Material 316L stainless steel 316L stainless steel 316L stainless steel 316L stainless steel
Shell Material stainless steel stainless steel stainless steel stainless steel
Power supply

AC100V-120V,

AC220V-240V

AC100V-120V,

AC220V-240V

AC100V-120V,

AC220V-240V

AC100V-120V,

AC220V-240V

Product Dimension(mm) 1850×550×600 2050×550×600 2650×650×600

2900×650×600



Features:

 Cleaning Commercial Printing Equipment with Ultrasonics

Improve your printing production time and extend the life of your anilox rolls and sleeves with the regular use of ultrasonic cleaning.

Using ultrasonics is one of the only ways to clean the individual microscopic ink cells on rollers. To efficiently and effectively clean these and other printing parts, AG SONIC has developed methods that are able to be used with both aluminium and steel sleeves and rollers, as well as with all inks (including water-, solvent- and UV-based inks).

Ultrasonic cleaning saves money and minutes, resulting in faster production times. This cleaning method is effective at gently eliminating contaminants in the hard-to-reach spots of even the most intricate parts, extending their lives.



Main introduction of anilox roller ultrasonic cleaning machine:

After long time printing, Mesh blockage is likely to result in ink, paint, glue and other dirt coating, in this case, if the mesh cannot be cleaned thoroughly, the printing effect will be effected, printing cannot work normally, anilox roller ultrasonic cleaning machine can do perfect cleaning by ultrasonic cavitation, which can cause jetting force from tiny bubbles in exploding, the contamination will be removed totally, after several minutes cleaning, the anilox roller can come back to its origin, the ultrasonic intensity is visible under controlling, the anilox roller can spin in sitting the tank top, which can avoid axis of anilox roller immersion during cleaning, the spinning force also can fall off the dirty easily in driving, AG SONIC design rubber roller at two sides to drive the anilox roller in spinning as couples, which is separately controlled, is easier in operation, maintenance.
