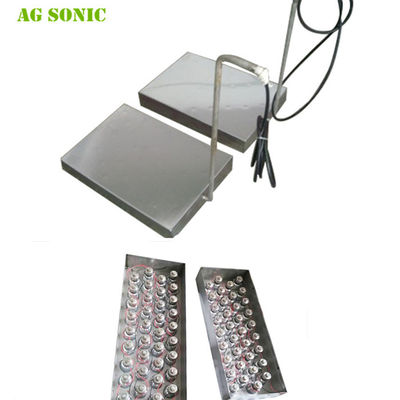

Flat Plates Submersible Ultrasonic Transducer With Existing Stainless Steel Tanks

Basic Information
Place of Origin: China
Brand Name: AGSONIC
Certification: CE
Model Number: TZ-36
Minimum Order Quantity: 1UNIT
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs / Month
Material: Stainless Steel 304 / 316 Application: Used Existing Stainless Steel Tanks
Option: Ultrasonic Cleaning Industry: Flat Transducer Plate
Ultrasonic Power: 1800W Frequency: 40KHZ / 28KHZ
High Light:

immersible ultrasonic transducer


submersible ultrasonic cleaner


Flat Transducer Plates Are Installed Into The Side Wall Or Into The Bottom Of Existing Stainless Steel Tanks


Benefits of ultrasonic cleaning

Ultrasonic cleaning saves time and money:

· up to twenty parts can be cleaned at one time

· technology is simple to use and only requires one operator

· life of parts is extended due to gentle cleaning

· highly effective cleaning means all contaminants are removed in first round

For more than two decades, Ultrasonics International has helped businesses improve profitability by investing less time and fewer staff for their industrial cleaning needs. Our ultrasonic cleaners clean more thoroughly, efficiently and faster than other cleaning methods.



Model Material Transducers Estimated volume Box size Cable
Ultrasonic frequency Ultrasonic power
(mm) (pcs) (L) (mm)   (kHz) (W)
TZ-1003 SUS304/SUS316L 3 15 250x150x100 Rigid tube/
Flexible tube
28/40 150
TZ-1006 6 30 305x250x100 300
TZ-1012 12 60 355x250x100 600
TZ-1018 18 90 406x305x100 900
TZ-1024 24 120 500x355x100 1200
TZ-1030 30 150 550x406x100 1500
TZ-1036 36 180 500x460x100 1800



Our immersible transducer is custom designed for your particular application and tank size. It can be incorporated into existing tanks of any size and converted it into ultrasonic tank. It is controlled by our unique Pulse Swept Pleasecontact us for specific information on how we can create one for your Immersible Transducer needs.


Immersible ultrasonic transducers are designed for use in new or existing cleaning tanks to improve the speed and effectiveness of rinsing cleaning and other processes. Single or multi- module units can be custom designed for tanks of any size.


Ultrasonic Immersible Transducers

Deep cleaning ultrasonic immersible transducers give you the ability to add the ultrasonic advantage to your existing cleaning application. We bond and wire the immersible transducer inside a durable stainless steel container, and seal it with a stainless steel lid. This gives you the ability to "drop-in" transducers to an existing tank or application.
Heavy duty 316L stainless steel- to insure long life and performance
Installation hardware included- to insure ease of installation


Immersible ultrasonic transducers do not require attachment to the tank (other than to hold them in position) to function efficiently. As a result, transducers can be moved from tank to tank and positioned as required for special applications when needed.


waves that generate ultrasonic energy.

Ultrasonic cleaning applications

Ultrasonic cleaners can also be customized to suit the specific needs of a factory, hospital or other businesses. With thousands of commercial and industrial cleaning applications, ultrasonic cleaning is widely used across many industries. Ultrasonic cleaners are tailored to the types of parts that they are cleaning. Table top and bench top cleaners, for example, are best for cleaning small or delicate parts like bearings, surgical instruments, optical parts, machined parts, small gears and carburetor components. Precision cleaning is used for cleaning and restoring delicate items that may have been damaged
