|Stainless Steel 304 / 316
|Used Existing Stainless Steel Tanks
|Customized Submersible Ultrasonic Cleaner
|40KHZ / 80KHZ
|Botton Or Side
immersible ultrasonic transducer,
submersible ultrasonic cleaner

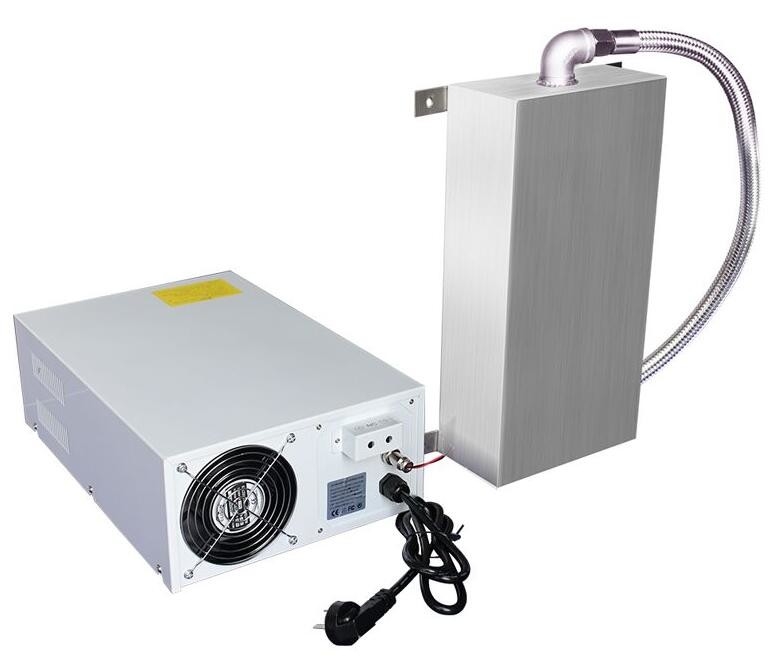

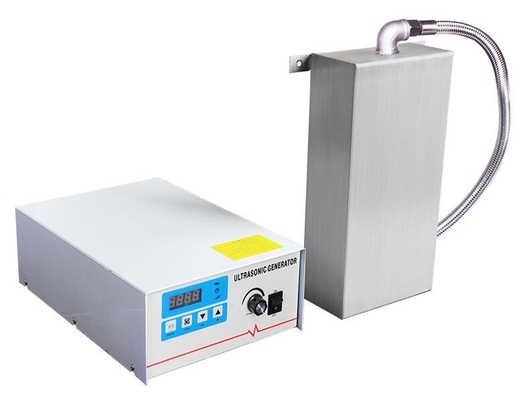

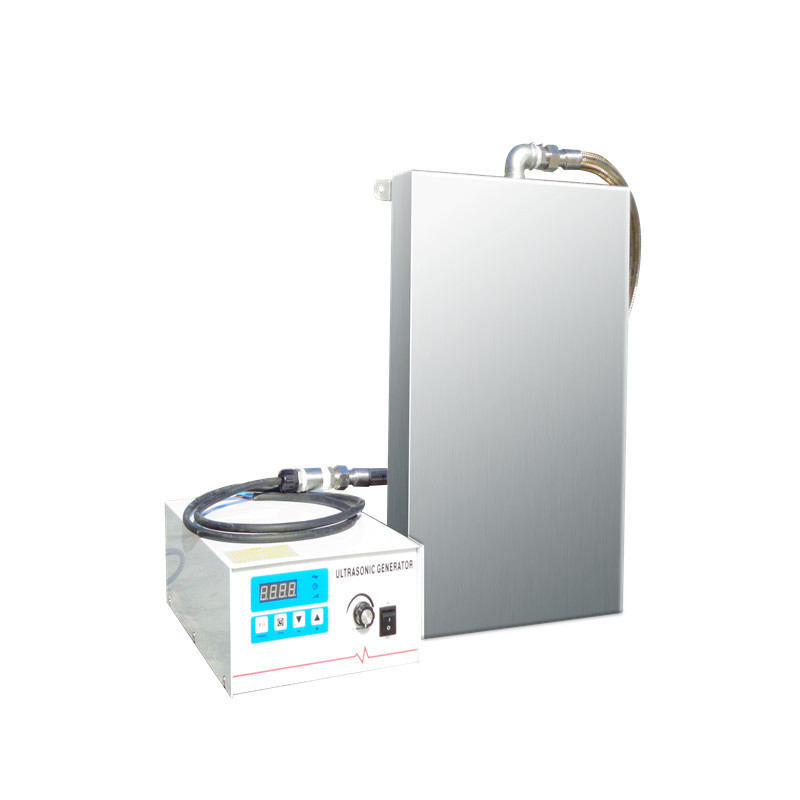

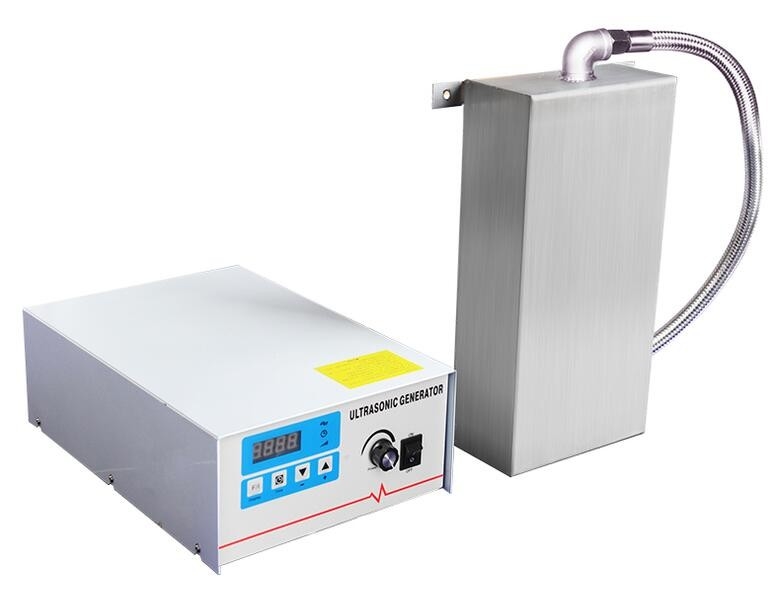

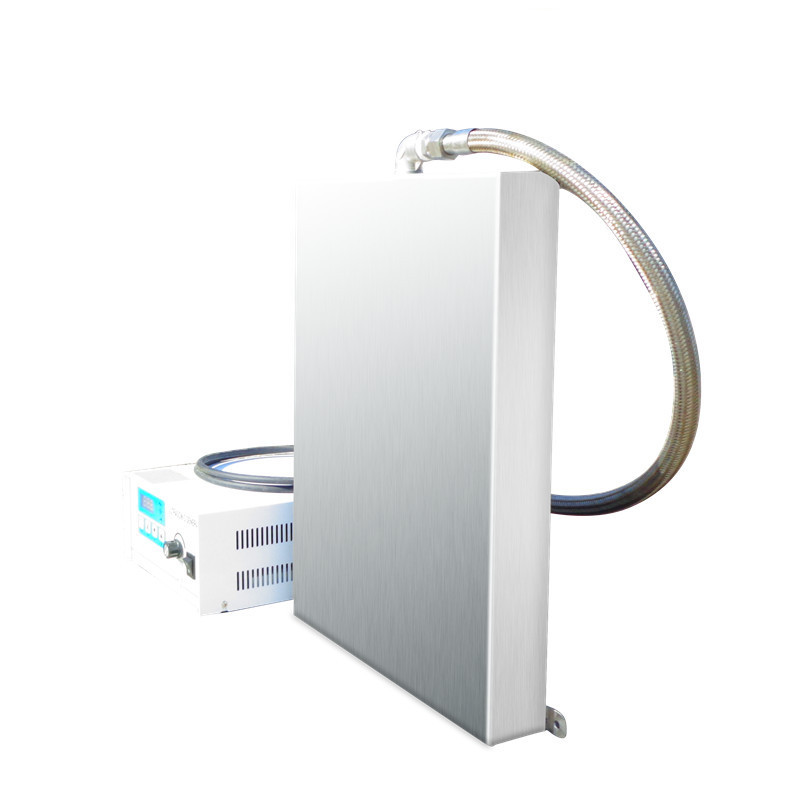

Industrial Cleaning Transducer Pack With Generator Transducers Work In Cleaning Bath
Immersible Transducers (Submersible)
Ultrasonic transducer elements sealed in a liquid-tight housing are an option to transducer elements permanently bonded to the side or bottom of a cleaning tank.
The major benefits of immersible ultrasonic transducers are that they are easy to service and can be added to existing equipment, often without extensive tank modifications.
This includes standard individual frequencies from 25 kHz to 270 kHz as well as multiple frequencies in a single or multiple units.
Ultrasonics immersible tranducers are intended to withstand the abuse unavoidable in a heavy industrial environment. Standard units are constructed of heavy gauge 316L stainless steel with other materials available for use in challenging process applications.
Units are pre-tested prior to sealing to assure that all transducer elements are performing exactly to specification. Once sealed by full penetration welding, the finished units are function tested in liquid for a minimum of 24 hours prior to shipping.
immersible ultrasonic transducers are powered by AG Sonic proprietary ultrasonic generators. In installations of large numbers of transducers, Ultrasonics generators can each provide up to 2,000 watts of ultrasonic power each reducing the number of generators required by as much as half. Multiple generators can be integrated in a common electrical enclosure. Cooling and environmental protection can be included if required.
Immersible ultrasonic transducers do not require attachment to the tank (other than to hold them in position) to function efficiently. As a result, transducers can be moved from tank to tank and positioned as required for special applications when needed.
Ultrasonics experienced engineering team is available to design a custom immersible ultrasonic transducer installation for any cleaning or process application.
• Long life span caused by low erosion
• Stainless steel 3 mm, AISI 316 Ti
• High temperature stability up to 125 °C max.
• Suitable for pressure and vacuum applications
• New radiating characteristics
• Equal power along the entire surface
• Increased mechanical stability due to rugged design
• High reliability due to nonbonded transducers
• Ultrasonic frequencies: 25 kHz or 40 kHz
• Immersible transducers and flat transducer plates
are available in this technology
Our immersible transducer is custom designed for your particular application and tank size. It can be incorporated into existing tanks of any size and converted it into ultrasonic tank. It is controlled by our unique Pulse Swept Pleasecontact us for specific information on how we can create one for your Immersible Transducer needs.
What is Ultrasonic Cleaning
In a process termed "cavitation", micron-size bubbles form and grow due to alternating positive and negative pressure waves in a solution. The bubbles subjected to these alternating pressure waves continue to grow until they reach resonant size. Just prior to the bubble implosion, there is a tremendous amount of energy stored inside the bubble itself. Temperature inside a cavitating bubble can be extremely high, with pressures up to 500 atm. The implosion event, when it occurs near a hard surface, changes the bubble into a suction jet about one-tenth the bubble size, which travels at speeds up to 400 km/hr away from the hard surface. With the combination of pressure, temperature, and velocity, the jet frees contaminants from their bonds with the substrate. Because of the inherently small size of the jet and the relatively large energy, ultrasonic cleaning has the ability to reach into small crevices and remove entrapped soils very effectively.
