| Place of Origin: | China |
|---|---|
| Brand Name: | Agsonic |
| Certification: | CE |
| Model Number: | AG1030 |
| Minimum Order Quantity: | negotiation |
| Price: | negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 10-20days |
| Supply Ability: | 100pcs/month |
| Material: | Sus304 | Tank Size: | Customized |
|---|---|---|---|
| Frequency: | 28KHZ/40KHZ/80khz | Power: | 1800W |
| Application: | Print Ink Cleaning | Heater: | 20-95℃ Adjustable |
| Transducer Power: | 28KHZ | Use: | Degreasing |
| High Light: | anilox roller cleaning machine,large capacity ultrasonic cleaner |
||

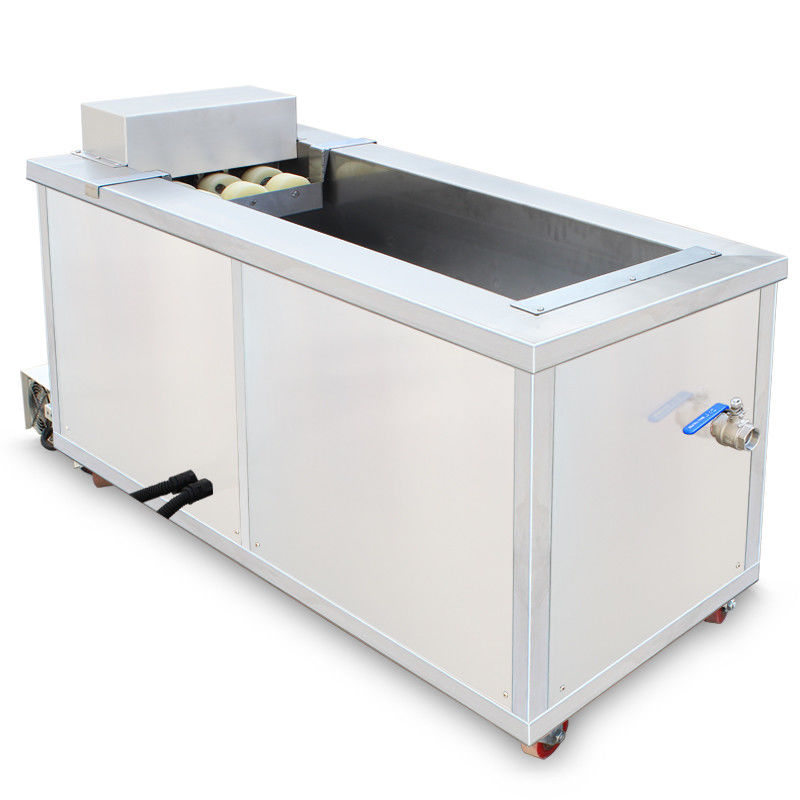

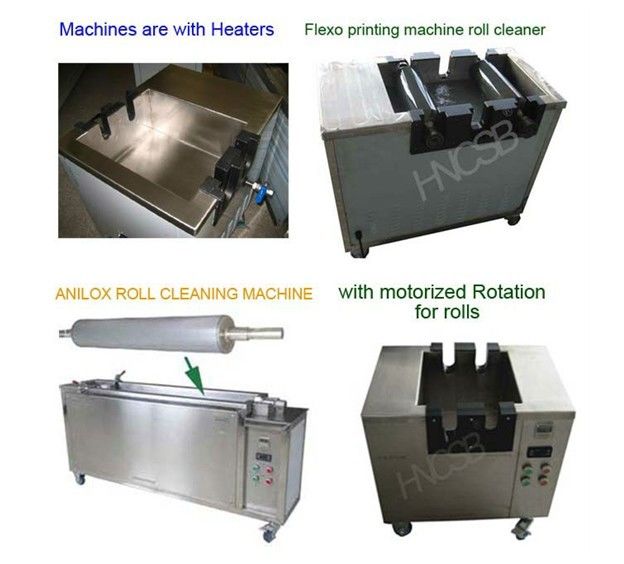

Digital Timer Heater Ultrasonic Anilox Roller Cleaning Machine For 2 Roller
Ultrasonic Anilox Cleaning Is A Modern Advanced Cleaning Process. Its Working Principle Is To Use The Audio Transducer Ultra High Frequency Electrical Signals Into Mechanical Vibrations Passing Into The Cleaning Solution. When A High-Power Ultrasonic Wave Propagation In The Cleaning Solution, The Cleaning Liquid Molecules By Intense Agitation And Vibration, Resulting In The Formation Of Numerous Small Bubbles Constantly And Burst. Under Ultrasonic Action, The Instantaneous Formation Of These Tiny Bubbles Burst And Have A Strong Impact, So Immersed In The Cleaning Solution And The Anilox Surface Mesh In Ink, Fine Dust And Dirt Quickly Peeled Off, So As To Achieve The Purpose Of Cleaning The Anilox Roll.
Anilox Roller Cleaning Equipment APPLICATION f printing machine & parts.
| Industry | Items to clean |
| Moulds |
Plastic tool models --For cleaning. |
| Electronics |
Relay—remove metal filings and impurities, Potentiometer-- impurities and oil stain on moving contact, Vacuum tube parts-- Dirt and impurity on the polar plate of electron gun, Semiconductor element--Dir on the surface of silicon wafer and crystal wafer, Capacitor--Dirt on pins of capacitor, Printed circuit board--Ink and oxide left during processing printed circuit board, Magnetic head--Dirt on the surface of the magnetic head. |
| Mechanical |
Bearing, gear--Metal filings and impurities left during the processing of internal and external sheath of bearing, Spring--cleaning before spring turning black, Vernier caliper, measuring tool--Metal filings and oil stain left during the processing of parts, Oil choke, oil pump--Metal filings and dirt left during the process of inner hole of oil choke and oil pump, Screw rod, air valve, pneumatic elements--Iron filings, cutting oil and abrasive left while processing. |
|
Automotive, motorcycle, aircraft |
To remove oil, grease, preservative, plastic residue left during mechanical cutting, grinding abrasive, glass fiber, dust, graphite and tar from Automotive air valve, glow plug, gasification plug, fuel pump, piston ring, battery terminal, machine control hand-wheel, motorcycleair-valve,etc. |
| Armurerie |
weapons cleaning, such as guns, rifle, bullets , handcuffs, etc. --For cleaning and lubrication. |
Anilox Roller Machine Specification ,Customized Any Size Available
| Brand | Agsonic |
| Effective Clean Width | Machine Width As Required |
| Voltage | 220v, 50hz |
| Machine Size | 2000× 320 ×200mm |
| Tank Capacity | 192l |
| Ultrasonic Power | 1500w |
| Transducer | 30pcs |
| Heater | 3kw |
Competitive Advantage:
FAQ:
Q:What are the advantages of AGsonic ultrasonic cleaner over traditional cleaning methods?
A:1.minimize the use of manual labor
· 2.make cleaning and degreasing without the use of organic solvents
· 3.clean hard to reach areas of products and remove all types of dirt
·4.shorten the processes such as extraction, dispersion, purification, chemical reactions
·5. eliminates costly mechanical and chemical cleaning of heat exchangers
Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects.
28kHz frequency is stronger, better for car/motor/truck
essel parts clean (remove oils, grease, pastes, etc. )
40kHz is better for pcb boards, electronic parts, etc.
Higher precision goods, higher frequency.
Q: Can ultrasonic cleaning damage parts?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe. No damage to your daily objects.
