| Place of Origin: | China |
|---|---|
| Brand Name: | AG SONIC |
| Certification: | CE |
| Model Number: | AG-480G |
| Minimum Order Quantity: | negotiation |
| Price: | negotiation |
| Packaging Details: | 1unit/wooden case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 300units/month |
| Model: | AG-480G | Tank Size: | 500x350x350mm |
|---|---|---|---|
| Tank Capacity: | 61L | Generator: | Separate |
| Ultrasonic Power: | 2400W | Heating Power: | 6KW |
| High Light: | industrial ultrasonic washing machine,industrial ultrasonic cleaning tanks |
||

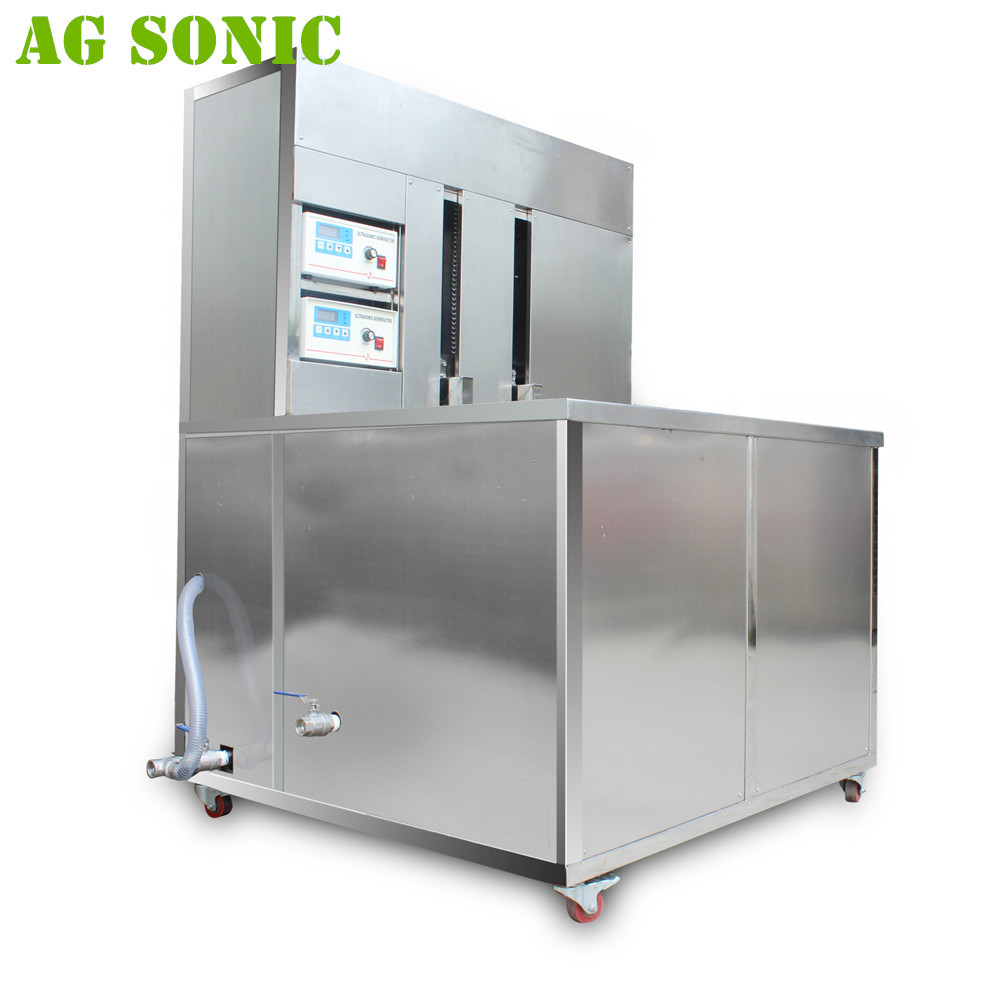

61L 900W Car Parts Auto Accessories Ultrasonic Engine Cleaning Machine Remove Oil
The use of ultrasonic cleaner for automotive maintenance has been effectively employed for many years. As a non-contact method, auto detail is not damaged during cleaning and critical tolerances can be maintained, extending auto life. The high cleanliness level achieved with ultrasonics results in better part release and longer runs. This improves productivity and reduces scrap. The penetrating nature of ultrasonic cleaning removes residual polymer, Gold Washing Machine With Vibration To Clean Die Mold auto release and outgas residue extending the auto life.
Ultrasonic cleaner removes carbonization, mould release, gassing, flashing, and other residues from auto parts in as little as 15-20 minutes.
Specifications of the automotive ultrasonic cleaner
Mainly application:
Applied for ultrasonic cleaning of engine parts, block,Semiconductor wafer, optical glass, clocks, beads and any other plastic, metal parts, anyway, the cleaning parts can immerse into the water without damage.
| Specifications for ultrasonic cleaner AG-180ST | |
| Model | AG-180ST |
| Tank capacity | 61L |
| Tank size | 500x350x350mm |
| Unit size | 640x490x570mm |
| Tank material | 2mm SUS304 |
| Ultrasonic power | 900W |
| Heating power | 1.5KW |
| Timer | 1-99min adjustable |
| Heater | 0-80c adjustable |
| Frequency | 28/40khz |
| Control | External generator, more stable |
| Optional | Oil filter system, pneumatic lift, rinsing tank, etc. |
| Voltage | 110V, 1phase; 220V, 3phases/220V, 1phase; 380V, 3phases |
| Warranty | 1 year |
| Packing | 1unit/wooden case |
Other models for your choice:
| Model | Tank size | Unit size | Volume | Ultrasonic power | Frequency | Heating power | Timer | Heating temperature |
| LxWxH(mm) | LxWxH(mm) | (L) | (W) | (kHz) | (KW) | (MIN) | (℃) | |
| AG-120ST | 500x300x250 | 640x440x470 | 38 | 600 | 28/40 | 1.5 | 1-99 |
0-80 |
| AG-180ST | 500x350x350 | 640x490x570 | 61 | 900 | 1.5 | |||
| AG-240ST | 550x400x400 | 690x540x620 | 88 | 1200 | 3 | |||
| AG-300ST | 600x450x400 | 740x590x620 | 108 | 1500 | 3 | |||
| AG-360ST | 600x500x450 | 740x640x670 | 135 | 1800 | 4.5 | |||
| AG-480ST | 700x500x500 | 840x640x720 | 175 | 2400 | 6 | |||
| AG-600ST | 800x600x550 | 940x740x770 | 264 | 3000 | 7.5 | |||
| AG-720ST | 1000x600x600 | 1140x740x820 | 360 | 3600 | 9 |
INDUSTRIAL Ultrasonic machine Introduction
Ultrasonic cleaning is a technology that uses high frequency sound waves (ultrasonic: above the range of human hearing) to agitate an aqueous or organic medium (cleaning chemistry) that in turn acts on contaminations adhering to substrates like metals, plastics, glass, rubber and ceramics. Contaminants can be dust, dirty, oil, pigments, grease, polishing compounds, flux agents, fingerprints, soot wax and mold release agents, biological soil like blood, and so on
FAQ:
Q:What are the advantages of AGsonic ultrasonic cleaner over traditional cleaning methods?
A:1.minimize the use of manual labor
· 2.make cleaning and degreasing without the use of organic solvents
· 3.clean hard to reach areas of products and remove all types of dirt
·4.shorten the processes such as extraction, dispersion, purification, chemical reactions
·5. eliminates costly mechanical and chemical cleaning of heat exchangers
Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects.
28kHz frequency is stronger, better for car/motor/truck parts clean (remove oils, grease, pastes, etc. )
40kHz is better for pcb boards, electronic parts, etc.
Higher precision goods, higher frequency.
