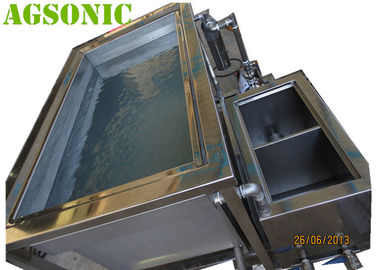

Brass Stencil Plate Cleaning Ultrasonic Stencil Cleaner 100L Smt Stencil Cleaner

For cleaning various stencils and misprinted PCBs, the combination of features offered by our PPC-N29TP make it a unique, and truly flexible cleaner. Its compact footprint, convenient utility requirements, and caster-mounted construction enables one operatore to push a fully filled, functional unit to wherever it is needed.
And this flexiblity comes without the loss of the automatic operation that represents savings for the operators. The threshold for usefulness of automation is allowing the operator to walk away from the process without worry. Stencil cleaners that require manual positioning and movement of stencils require attention from experienced operators to ensure consistent cleaning. If there is any risk of overexposure of parts to the chemical cleaning agent, the operator has to stand by for the end of the ultrasonic scrubbing cycle for immediate removal of the parts from the chemical bath. Of course, if the operator has to stand by for the end of the cleaning cycle, he is not truly free to perform other work.

Ideal for car parts washing, engine block cleaning,workshop sonic bath cleaning.

Ideal to clean rust,carbon,pait,heavy oil, without damage to parts inside tank with suitable cleaning liquid.

Specification details:

Model: AGsonic		AG-1012	AG-1018			AG-1024	AG-1030	AG-1036	AG-1072
TANK'S WORKING DIMENSION (mm)	L1	355	406			500	500	500	1110
	W1	305	305			355	406	460	600
	H1	355	460			500	500	550	600

OVERALL DIMENSION (mm)	L2	535	586			680	710	710	1320
	W2	485	485			535	586	640	780
	H2	750	680			720	720	770	820
TANK'S TOTAL CAPACITY		38L	56L			88L	101L	126L	369L
TANK'S MATERIAL		SUS304 / SUS316L
IN-TANK SURFACE FINISHING		Hard-Cr Plating Treatment ( 20+ microns )
HOUSING'S MATERIAL		Stainless steel
ULTRASONIC FREQUENCY*		28kHz / 40kHz
ULTRASONIC TRANSDUCER		12	18			24	30	36	72
ULTRASONIC OUTPUT POWER (MAX.)		600W	900W			1200W	1500W	1800W	3600W
ELECTRONIC GENERATOR		KG600	KG900			KG1200	KG1500	KG1800	KG3600
		Build-in	Separate
HEATER'S (HOT PLATE) POWER		1.5kW		3kW				4.5kW		9KW
CLEANING TANK’S POWER REQUIREMENT		AC 220V / 240V, 1, 15AMP						AC 220V / 240V, 1, 25AMP
GENERATOR’S POWER REQUIREMENT		----			AC 220V / 240V, 1, 13AMP
68kHz / 80kHz / 120kHz are also available

FAQ:

Q: What’s advantage of ultrasonic cleaner?

A: ultrasonic cleaner is the best way to have thorough cleaning without damaging objects. It helps to

remove stubborn dirt and dust from watch, eyeglasses, jewelry, etc, make them look new once again.

It’s very safe and easy to operate, proves to be a best helping hand for you at home.

Q: How often should I change the cleaning fluid in my tank?

A: Changed whenever it becomes visibly too contaminated, or when the cleaning process is not as effective.

Q: Why do I need to use a basket?

A: Basket would help to load objects together, and get better cleaning effect.

Q: Can ultrasonic cleaning damage parts?

A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.

No damage to your daily objects.

Ultrasonic Stencil Cleaner

100L Smt Ultrasonic Stencil Cleaner for Brass Stencil Plate Cleaning 3

Tag:

Material:	Sus304	Tank Size:	Customized
Frequency:	28KHZ/40KHZ/80khz	Power:	Adjust
Timer:	1S-99hours Adjustable	Heater:	20-95℃ Adjustable
Application:	Stencil Cleaner	Use:	Degreasing
High Light:	industrial ultrasonic cleaning machine , industrial ultrasonic cleaning tanks
