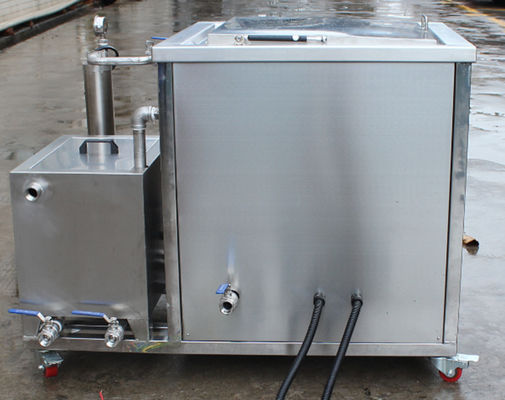

Aircraft Engine Gearbox Industrial Ultrasonic Cleaning Equipment Tank Size Customized

Basic Information
Place of Origin: China
Brand Name: AG SONIC
Certification: CE
Model Number: AG-1108G
Minimum Order Quantity: 1unit
Price: negotiation
Packaging Details: 1unit/wooden case
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 300units/month
Application: Aircraft Engine Gearbox Ultrasonic Cleaner Generator: Separate Generator Control
Tank Material: SUS316L Resist To Strong Acid And Alkali Warranty: 1 Year
Optional: Oil Filter System, Pneumatic Lift, Rinsing Tank, Etc. Packing: Wooden Case
High Light:

industrial ultrasonic cleaning machine

,

industrial ultrasonic cleaning tanks

Aircraft Engine Gearbox Industrial Ultrasonic Cleaning Equipment Tank Size Customized


Delivering and using clean parts is not always obvious. Certainly, no one wants to handle a dirty part or install it into a critical machine, but dirt, debris and contaminants can cause problems for manufacturers and end users. From the merely frustrating to catastrophic, dirty parts can cause critical components to exceed tolerances and even fail damaging valuable equipment and property while contamination (everything from grease, oil and chemicals to viruses and bacteria) can seriously harm users.



Specifications:

Model Tank size Unit size Volume   Ultrasonic power Frequency Heating power Timer Heating temperature
LxWxH(mm) LxWxH(mm) (L)   (W) (kHz) (KW) (MIN) (℃)
T-12S 500x300x250 640x440x470 38   600 28/40 1.5 1-99 0-80
T-18S 500x350x350 640x490x570 61   900 1.5
T-24S 550x400x400 690x540x620 88   1200 3
T-30S 600x450x400 740x590x620 108   1500 3
T-36S 600x500x450 740x640x670 135   1800 4.5
T-48S 700x500x500 840x640x720 175   2400 6
T-60S 800x600x550 940x740x770 264   3000 7.5
T-72S 1000x600x600 1140x740x820 360   3600 9


The ultrasonic cleaner is widely used in different industries:

Industry Items to clean
Moulds

Plastic tool models
--For cleaning.

Electronics

Relay—remove metal filings and impurities,
Potentiometer-- impurities and oil stain on moving contact,
Vacuum tube parts-- Dirt and impurity on the polar plate of electron gun,
Semiconductor element--Dir on the surface of silicon wafer and crystal wafer,
Capacitor--Dirt on pins of capacitor,
Printed circuit board--Ink and oxide left during processing printed circuit board,
Magnetic head--Dirt on the surface of the magnetic head.

Mechanical

Bearing, gear--Metal filings and impurities left during the processing of internal and external sheath of bearing,
Spring--cleaning before spring turning black,
Vernier caliper, measuring tool--Metal filings and oil stain left during the processing of parts,
Oil choke, oil pump--Metal filings and dirt left during the process of inner hole of oil choke and oil pump,
Screw rod, air valve, pneumatic elements--Iron filings, cutting oil and abrasive left while processing.

Automotive,
motorcycle, aircraft

To remove oil, grease, preservative, plastic residue left during mechanical cutting, grinding abrasive, glass fiber, dust, graphite and tar from Automotive air valve, glow plug, gasification plug, fuel pump, piston ring, battery terminal, machine control hand-wheel, motorcycleair-valve,etc.
Armurerie

weapons cleaning, such as guns, rifle, bullets , handcuffs, etc.
--For cleaning and lubrication.

Printing industry

Rotative machine,
metal plate,
Printer ink head,
printer cartridges
-- To clean ink, oil and dye on the surface of printing machine & parts.

Repair industry

Musical instrument repair shop, vehicle maintenance shops, motorcycle repair shop, mobile phones & interphone repair shop, gun repair shop, etc.
--To clean dirt, impurity and oils from surface of tools and spare parts.

Watch & clock

Gear wheel, pin, screw, movement of watches for watch manufacture, repair shops, Watch collectors, etc.
--For cleaning.

Magnetic industry Magnetic materials --Magnetic powder to be cleaned.
Pharmaceutical industry

Medicine bottles-- Cleaning of the medicine bottles before loading medicine.
Use for Pharmaceutical factories and pharmaceutical machinery companies.

Medical

Injectors, operating instrument, pipet, glass container, esophagoscope, dental machinery, proctoscope, direction lens, microscope-used sample glasses.
--To clean residue on the used operating instruments.
--Use for Various large pharmaceutical and hospitals.

Dental

Dental instruments like dental forceps, etc; prosthetic materials like bridges, crowns and prostheses.
--For cleaning and disinfection.
--Use for dental Clinic, dental Colleges,etc.

Tattoo Tattoo instruments.
Optical components

Spectacles, magnifying glass, telescope, microscope, camera, vidicon, etc.
--To clean lenses and the accessories.

Podiatry Chiropody instruments be hygienically clean and sterile.
Laboratories

Laboratory glassware, lenses, instruments , polishes, burettes, pipettes and precision components.
--Thoroughly removing biological fluids, blood, protein, and contaminants from it.


Specifications:

Model AG-1108G
material SUS304/SUS316L
ultrasonic transducer heads 108pcs
ultrasonic power 5400W
heating power 10.5KW
frequency 28/40khz
timer 1~30min adjustable
heater 20~80C adjustable
capacity 500liter
tank size customer design


Why choose ultrasonic cleaning machine to clean our engine block and engine parts?
Clean intricate and difficult to reach areas easily
A major challenge of any cleaning system is the difficulty faced in tackling tiny spaces, intricate geometries, and difficult to reach surfaces, ultrasonic cleaning penetrates even blind holes and small apertures, that previously had hit-and miss success rates, the uniform agitation of the cleaning solution ensures that the cleaning action penetrates even hard to reach areas that previously required specialized brushes and other complicated cleaning devices with no real guarantee of a successful and consistent cleaning outcome, various factors go into determining which combination of an ultrasonic unit and chemical solution is suited to your particular requirement
For effective cleaning the ultrasonic cleaning machine must use the right of cleaning chemistry, operate at the right temperature and use the correct frequency, the part to be cleaned the contaminant to be removed and the degree of soil, determine this, our years of experience advising manufacturing and maintenance clients on the right process for their cleaning needs help us identify the exact product combo that you need, just send AG SONIC email or call us, and we’ll guide you to the right solution quickly

Company introduction:
1. AG SONIC technology limited, which engaged in ultrasonic cleaner field for more than 10 years. And the main products are ultrasonic cleaner with different capacity.
2. AG SONIC is an original ultrasonic manufacturer with R&D, production and sales teams. Our engineer is engaged in the filed for more than 20 years, so we have improved PCB design for stable and durable industrial use. High quality product and good after-sales services are available from us.
3. Not only standard ultrasonic cleaner, any non-standard can be designed by engineer.
Suggestion and drawing are professional for you.
4. Welcome to visit our factory in Shenzhen, and we are appreciate for your suggestions and hope to conduct business cooperation.
