Application: | Heat Exchangers | Ultrasonic Power: | 14.4KW |
---|---|---|---|
Heating Power: | 30KW | Control: | L150xW150xH80cm |
Tank Material: | 1800L | Housing Material: | SUS304/SUS316L |
High Light: | industrial ultrasonic cleaning machine,industrial ultrasonic cleaning tanks |

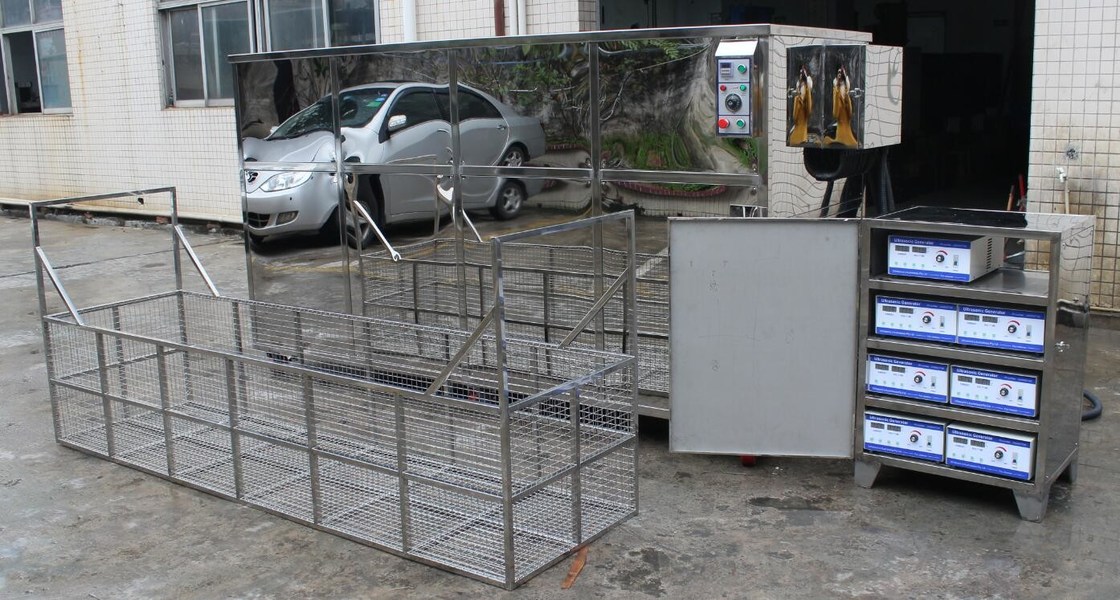

2000L Ultrasonic Cleaner for Cleaning Heat Exchangers by Using Chemical
Tank size of the machine can be customized according to your requirements, so pls inform the size of the cleaning parts and engineer will deisgn the machine for you.
If the parts are full with heavy duty oil, oil filter system is welcome to recycle the solvent and absorb the oil.
Need more info, welcome to ask.
Application:
Ultrasonic cleaning can be used for many applications, including plastic parts, bearing, bolts, rubber parts, internal parts, plastic injection molds, transmission parts, and final cleaning of all engine parts prior to assembly, the versatility of ultrasonic cleaning machine make them the perfect choice for automotive, medical, pharmaceutical, aerospace, engineering and many other industries.
Product features:
High power transducer cleaning effect significantly, usable macroscopic observation;
After cleaning objects shine light;
Digital LCD control boot time;
The stainless steel and the lid, bladder, more upscale;
Waterproof properties is greatly improved, more safety products last;
With constant temperature system with heating.
Pls find more specifications below:
Specifications for ultrasonic cleaner T-288S | |
Model | T-288S |
Tank capacity | 1800L |
Tank size | L150xW150xH80cm |
Tank material | 2mm SUS304 |
Ultrasonic power | 14.4KW |
Heating power | 30KW |
Timer | 1-99min adjustable |
Heater | 0-80c adjustable |
Frequency | 28/40khz |
Control | External generator, more stable |
Optional | Oil filter system, pneumatic lift, rinsing tank, etc. |
Voltage | 110V, 1phase; 220V, 3phases/220V, 1phase; 380V, 3phases |
Warranty | 1 year |
Packing | 1unit/wooden case |
Other models for your choice:
Model | Tank size | Unit size | Volume | Ultrasonic power | Frequency | Heating power | Timer | Heating temperature |
LxWxH(mm) | LxWxH(mm) | (L) | (W) | (kHz) | (KW) | (MIN) | (℃) | |
AG-120ST | 500x300x250 | 640x440x470 | 38 | 600 | 28/40 | 1.5 | 1-99 | |
AG-180ST | 500x350x350 | 640x490x570 | 61 | 900 | 1.5 | |||
AG-240ST | 550x400x400 | 690x540x620 | 88 | 1200 | 3 | |||
AG-300ST | 600x450x400 | 740x590x620 | 108 | 1500 | 3 | |||
AG-360ST | 600x500x450 | 740x640x670 | 135 | 1800 | 4.5 | |||
AG-480ST | 700x500x500 | 840x640x720 | 175 | 2400 | 6 | |||
AG-600ST | 800x600x550 | 940x740x770 | 264 | 3000 | 7.5 | |||
AG-720ST | 1000x600x600 | 1140x740x820 | 360 | 3600 | 9 |
Frequently asked questions:
Can ultrasonic cleaning damage my parts?
With certain cautions, ultrasonic cleaning is considered safe for most parts. While the effects of thousands of implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level. The most important cautionary consideration is the choice of cleaning solution. Potentially adverse effects of the detergent on the material being cleaned will be enhanced by the ultrasonics. Ultrasonic cleaning is not recommended for the following gemstones: opal, pearl, emerald, tanzanite, malachite, turquoise, lapis and coral.
What is direct and indirect cleaning?
Direct cleaning occurs when the parts are cleaned in a cleaning solution which fills the cleaner, usually inside a perforated tray or mesh basket. The limitation of direct cleaning is that a solution must be chosen that will not damage the ultrasonic cleaner. Indirect cleaning involves placing the parts to be cleaned in an inner non-perforated tray or beaker that often contains a solution that the user may not want directly filling the ultrasonic tank. When choosing indirect cleaning, make sure that the water level inside the tank itself is maintained to the fill line (about 1″ from the tank top) at all times.
Why is a special solution required for cleaning?
Soils adhere to the parts… if they didn’t, the soil would just fall off the parts! The purpose of the solution is to break the bonds between parts and their soils. Water alone has no cleaning properties. The primary purpose of the ultrasonic activity (cavitation) is to assist the solution in doing its job. An ultrasonic cleaning solution contains various ingredients designed to optimize the ultrasonic cleaning process. For example, increased cavitation levels result from reduced fluid surface tension. An ultrasonic solution will contain a good wetting agent or surfactant.
What cleaning solution should I use?
Modern ultrasonic cleaning solutions are compounded from a variety of detergents, wetting agents and other reactive components. A large variety of excellent formulations are available, designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to preclude undesirable reactivity with the part being cleaned.
