| Place of Origin: | China |
|---|---|
| Brand Name: | AG SONIC |
| Certification: | CE |
| Model Number: | T-288S |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | 1unit/wooden case |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T |
| Supply Ability: | 300units/month |
| Application: | Heat Exchangers | Ultrasonic Power: | 14.4KW |
|---|---|---|---|
| Heating Power: | 30KW | Control: | L150xW150xH80cm |
| Tank Material: | 1800L | Housing Material: | SUS304/SUS316L |
| High Light: | industrial ultrasonic cleaning machine,industrial ultrasonic cleaning tanks |
||

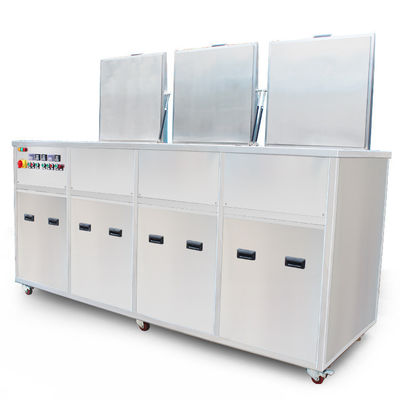

AGSONIC DPF Ultrasonic Cleaner For Radiator Truck DPF Filters Cleaning with Drying System
industrial ultrasonic cleaner is robust and reliable, delivering effective cleaning results for all manufacturing, processing and maintenance applications.
This ultrasonic cleaner can process multiple parts in one cycle, removing contaminants from crevices and other hard to reach areas thoroughly and quickly. The improved cleaning results reduce the need for re-cleans or rejects, increasing throughput and cleaning quality of your components whilst the simple one-button-press operation allows the operator to process other tasks during the cleaning cycle.
Product features:
High power transducer cleaning effect significantly, usable macroscopic observation;
After cleaning objects shine light;
Digital LCD control boot time;
The stainless steel and the lid, bladder, more upscale;
Waterproof properties is greatly improved, more safety products last;
With constant temperature system with heating.
Pls find more specifications below:
Specifications:
| Model | T-2048G | T-2072G | T-2144G |
| Ultrasonic Tank Dimension(mm) | 550X400X350 | 600X500X450 | 1000X600X600 |
| Rinsing tank dimension(mm) | 550X400X350 | 600X500X450 | 1000X600X600 |
| Max. Capacity | 77L/tank | 135L/tank | 175L/tank |
| Construction Case | SUS304 (Mirror shining image available) | ||
| Construnction Tank | SUS304 | ||
| Transducer Number | 48pcs | 72pcs | 144pcs |
| Ultrasonic power(Max.) | 2400W | 3600W | 7200W |
| Ultrasonic frequency | 40kHz | 40kHz | 40kHz |
| Temperature range | 20~80C adjustable | ||
| Heating power | 6KW | 12KW | 24KW |
| Timer | 1~99h | 1~99h | 1~99h |
| Drain | 3/4" Valve | ||
| Lid & Basket | Available, material: SUS304 | ||
| Cleaning Tank voltage | AC220V/AC380V 3phase | ||
| Generator Voltage | AC110V / 220V 1phase | ||
| Features | With double tank for cleaning and rinsing. With filtration system Multi-direction castors with brake; 1 year warranty |
||
Other models for your choice:
| Model | Tank size | Unit size | Volume | Ultrasonic power | Frequency | Heating power | Timer | Heating temperature |
| LxWxH(mm) | LxWxH(mm) | (L) | (W) | (kHz) | (KW) | (MIN) | (℃) | |
| T-12S | 500x300x250 | 640x440x470 | 38 | 600 | 28/40 | 1.5 | 1-99 |
0-80 |
| T-18S | 500x350x350 | 640x490x570 | 61 | 900 | 1.5 | |||
| T-24S | 550x400x400 | 690x540x620 | 88 | 1200 | 3 | |||
| T-30S | 600x450x400 | 740x590x620 | 108 | 1500 | 3 | |||
| T-36S | 600x500x450 | 740x640x670 | 135 | 1800 | 4.5 | |||
| T-48S | 700x500x500 | 840x640x720 | 175 | 2400 | 6 | |||
| T-60S | 800x600x550 | 940x740x770 | 264 | 3000 | 7.5 | |||
| T-72S | 1000x600x600 | 1140x740x820 | 360 | 3600 | 9 |
Applications:
| Industry | Items to clean |
| Moulds |
Plastic tool models --For cleaning. |
| Electronics |
Relay—remove metal filings and impurities, Potentiometer-- impurities and oil stain on moving contact, Vacuum tube parts-- Dirt and impurity on the polar plate of electron gun, Semiconductor element--Dir on the surface of silicon wafer and crystal wafer, Capacitor--Dirt on pins of capacitor, Printed circuit board--Ink and oxide left during processing printed circuit board, Magnetic head--Dirt on the surface of the magnetic head. |
| Mechanical |
Bearing, gear--Metal filings and impurities left during the processing of internal and external sheath of bearing, Spring--cleaning before spring turning black, Vernier caliper, measuring tool--Metal filings and oil stain left during the processing of parts, Oil choke, oil pump--Metal filings and dirt left during the process of inner hole of oil choke and oil pump, Screw rod, air valve, pneumatic elements--Iron filings, cutting oil and abrasive left while processing. |
|
Automotive, motorcycle, aircraft |
To remove oil, grease, preservative, plastic residue left during mechanical cutting, grinding abrasive, glass fiber, dust, graphite and tar from Automotive air valve, glow plug, gasification plug, fuel pump, piston ring, battery terminal, machine control hand-wheel, motorcycleair-valve,etc. |
| Armurerie |
weapons cleaning, such as guns, rifle, bullets , handcuffs, etc. --For cleaning and lubrication. |
| Printing industry |
Rotative machine, metal plate, Printer ink head, printer cartridges -- To clean ink, oil and dye on the surface of printing machine & parts. |
| Repair industry |
Musical instrument repair shop, vehicle maintenance shops, motorcycle repair shop, mobile phones & interphone repair shop, gun repair shop, etc. --To clean dirt, impurity and oils from surface of tools and spare parts. |
DPF Filters Cleaning
