| Place of Origin: | China |
|---|---|
| Brand Name: | AG SONIC |
| Certification: | CE |
| Model Number: | T-12S |
| Minimum Order Quantity: | negotiation |
| Price: | negotiation |
| Packaging Details: | 1unit/wooden case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 300units/month |
| Tank Capacity: | 38L | Tank Size: | 500x300x250mm |
|---|---|---|---|
| Unit Size: | 640*440*470 | Special: | With Separate Generator Control |
| Application: | Instrument Cleaning | Heating: | Have |
| High Light: | industrial ultrasonic cleaning machine,industrial ultrasonic cleaning tanks |
||

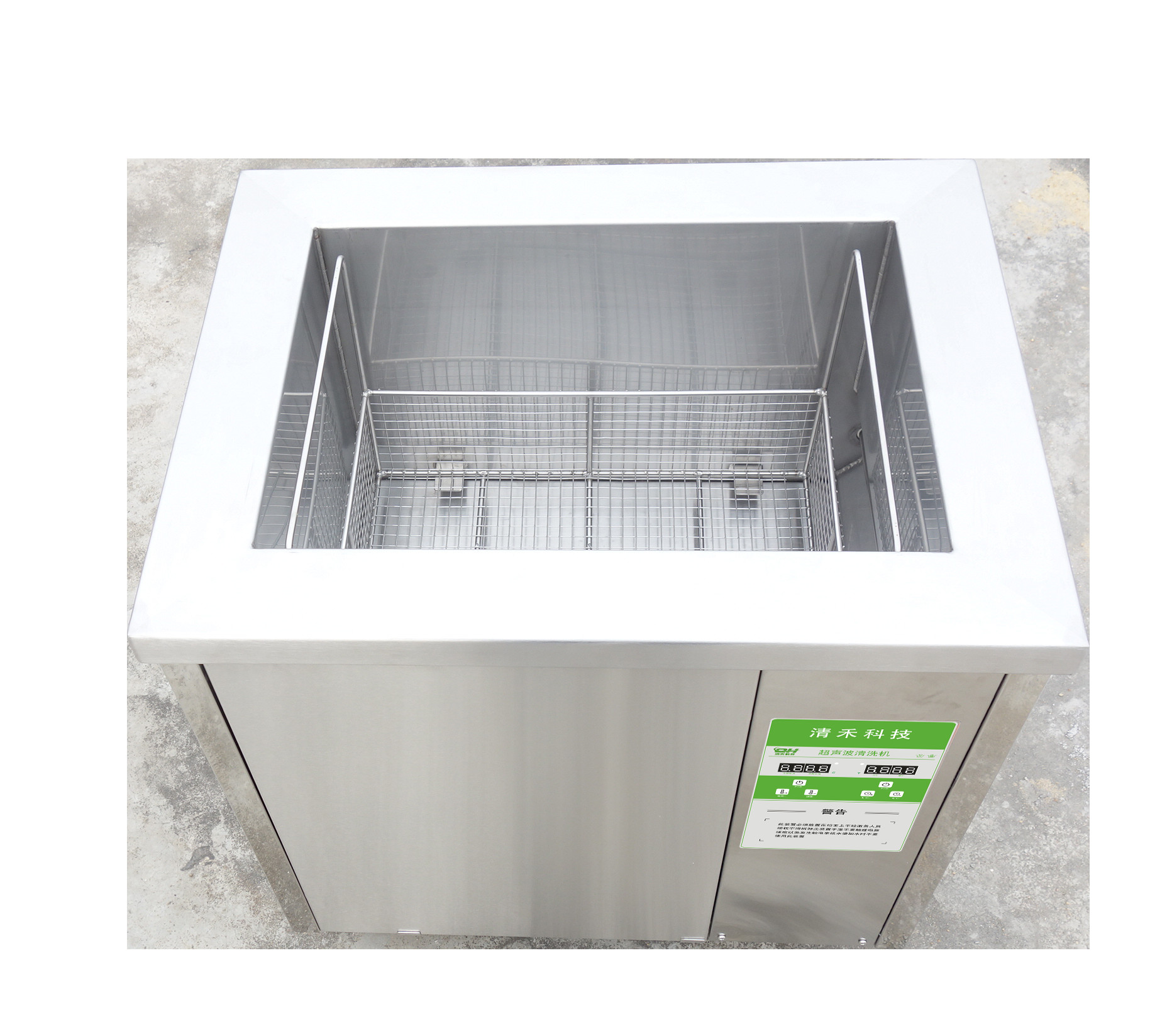

38L SS304 Medical Ultrasonic Cleaner 40Khz Hospital/Dental/Laboratory Cleaning Instrument 40KHZ
Machine Feature :
1. Whole machine made of SUS304 stainless steel, 2mm thickness tank for acid-proof, anti-corrosive.
2. Industrial grade ultrasonic transducer, moisture-proofed PCB.
3. Advanced generator, sweep frequency, high quality, better effect.
4. Ultrasonic power can be adjusted from 0-100%.
5. Temperature can be set from 30-110°C.
6. Industrial grade for 24 hours continuous working.
7. Ultrasonic frequency: 28kHz or 40kHz.
8. Fully portable, 38L and above volume machines are with wheels, locking wheels for stability.
9. With free lid and stainless steel SUS304 basket.
10. Customized according to customer’s request.
Specifications:
| Specifications for ultrasonic cleaner AG-120ST | |
| Model | T-12S |
| Tank capacity | 38L |
| Tank size | 500x300x250mm |
| Unit size | 670x480x700mm |
| Tank material | 2mm SUS304 |
| Ultrasonic power | 600W |
| Heating power | 1.5KW |
| Timer | 1-99min adjustable |
| Heater | 0-80c adjustable |
| Frequency | 28/40khz |
| Control | External generator, more stable |
| Optional | Oil filter system, pneumatic lift, rinsing tank, etc. |
| Voltage | 110V, 1phase; 220V, 3phases/220V, 1phase; 380V, 3phases |
| Warranty | 1 year |
| Packing | 1unit/wooden case |
Applications:
| Healthcare | Dental and surgical instruments, optical, podiatry, general practice, hospitals, medical components |
| Manufacturing: | Aerospace, pharmaceutical, defence, medical devices and orthopaedic implants, automotive, marine, filtration, moulding, food and beverage, plating & surface finishing, semi-conductors, printing technology and equipment. |
| Maintenance | Automotive servicing, jewellery & watches, tools, weapons, Heat exchangers, oil & gas, commercial coffee boiler |
| Laboratory | Scientific Research, Mixing, Cell Disruption, extraction, pharmaceutical Sonochemistry |
| Others | window blind, golf club, tattoo equipment, anilox roller, music equipment, weapons, electronics, etc. |
02: Introduction
Ultrasonic cleaning is a technology that uses high frequency sound waves (ultrasonic: above the range of human hearing) to agitate an aqueous or organic medium (cleaning chemistry) that in turn acts on contaminations adhering to substrates like metals, plastics, glass, rubber and ceramics. Contaminants can be dust, dirty, oil, pigments, grease, polishing compounds, flux agents, fingerprints, soot wax and mold release agents, biological soil like blood, and so on
03: Application
Ultrasonic cleaning can be used for many applications, including plastic parts, bearing, bolts, rubber parts, internal parts, plastic injection molds, transmission parts, and final cleaning of all engine parts prior to assembly, the versatility of ultrasonic cleaning machine make them the perfect choice for automotive, medical, pharmaceutical, aerospace, engineering and many other industries
04: Characters
Opposing horizontal transducers mounted at two sides
Digital control wave ultrasonic generators
Movable cleaning basket
Can combined with lifting system, drying tank, rinsing tank, recirculation & filtering system
Incredible versatility in dimension, function and auxiliary couples
05: why clean parts with ultrasonic?
Delivering and using clean parts is not always obvious, certainly, no one wants to handle a dirty parts or install it into a critical machine, but, dirty, debris and contaminants can cause problems for manufactures and end users, from the merely frustrating to catastrophic, dirty parts can cause critical components to exceed tolerances and even fail damaging valuable equipment and property while contamination (everything from grease, oil and chemicals to viruses and bacteria) can seriously harm users.
06: How to choose cleaning chemistry
Depending on the type of cleaning requirement and the substrate that needs cleaning a detergent solution or a similar aqueous medium can dramatically increase the cavitations, lowering the surface tension of the liquid reduces the energy required to form the bubbles and when combined with inherent cleaning property of the solution results in superior micro cleaning of the solid surface
The choose of the cleaning medium is critical, the nature of the substrate and contamination are the key factors in selecting the cleaning chemistry, which is typically aqueous or semi-aqueous
Machine detail :
