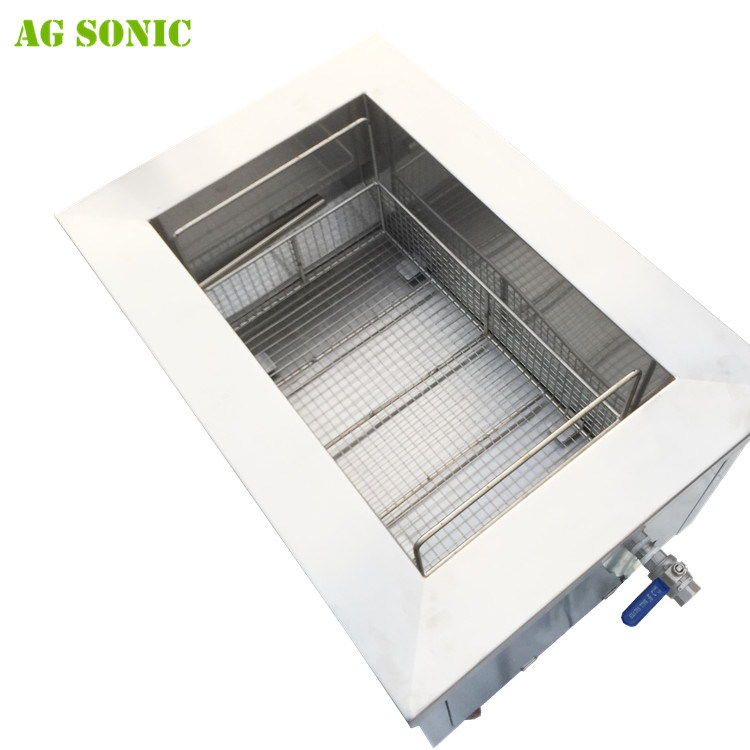

28khz DPF Dirty Diesel Particulate Ultrasonic Filter Cleaning Machine 360 liters with 9KW Heating

Basic Information
Place of Origin: China
Brand Name: AG SONIC
Certification: CE
Model Number: AG-720G
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 1unit/wooden case
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 300units/month
Tank Size: L1000xW600xH600mm Rinsing Tank: Available If Need
Drying Tank: Available If Need Packing: Wooden Case
Casters: Have Draiange: Have
High Light:

industrial ultrasonic cleaning systems

,

ultrasonic wave cleaner



28khz DPF Dirty Diesel Particulate Filter Ultrasonic Cleaner 360 liters with 9KW Heating



The machine can be effectively used for heavy duty carbon removing oil. Oil filtration system is available to absorb the oil and recycle the solvent.



The Advantages of ultrasonic filter cleaning machine:

Ultrasonic cleaning machine delivers high performance industrial strength, cleaning action on Engine block, carburetor and Engine parts

01: Cleans carbon deposits from carburetors and all manner of engine parts

02: Removes stubborn oil grease, lubricants, paint, rust, and dirty (with-pre-cleaning in same cases

03: Aluminum sate

04: Penetrates deep into the part and cleans holes, small apertures and crevices

05: Clean sensitive parts like wiring and plastic without damage

06: Does not require line-of-sight for effective cleaning

07: Ensures part longevity due to high degree of cleanliness



Mainly application:

Applied for ultrasonic cleaning of DPF, engine parts, block,Semiconductor wafer, optical glass, clocks, beads and any other plastic, metal parts, anyway, the cleaning parts can immerse into the water without damage.



Features:

All imported stainless steel structure, thickening Stainless steel plate,

adopting high Q value transducer and German binding process large power of ultrasonic output, set solvent heating and temperature automatic thermostat instrument, and temperature control range 0~100, base solvent, no pollution

Range: semi-conductor silicon chip, optical glass, parts of watch and clock, glasses, Jewelry, polyester filtration core and etc



Specifications:

Specifications for ultrasonic cleaner AG-720G
Model AG-720G
Special with filtration system
Tank capacity 360L
Tank size 1000x600x600mm
Unit size 1140x740x820mm
Tank material 2mm SUS304
Ultrasonic power 3600W
Heating power 9KW
Timer 1-99min adjustable
Heater 0-80c adjustable
Frequency 28/40khz
Control External generator, more stable
Optional pneumatic lift, rinsing tank, etc.
Voltage 110V, 1phase; 220V, 3phases/220V, 1phase; 380V, 3phases
Warranty 1 year
Packing 1unit/wooden case



Why choose ultrasonic cleaning machine to clean our DPF?

Clean intricate and difficult to reach areas easily

A major challenge of any cleaning system is the difficulty faced in tackling tiny spaces, intricate geometries, and difficult to reach surfaces, ultrasonic cleaning penetrates even blind holes and small apertures, that previously had hit-and miss success rates, the uniform agitation of the cleaning solution ensures that the cleaning action penetrates even hard to reach areas that previously required specialized brushes and other complicated cleaning devices with no real guarantee of a successful and consistent cleaning outcome, various factors go into determining which combination of an ultrasonic unit and chemical solution is suited to your particular requirement

For effective cleaning the ultrasonic cleaning machine must use the right of cleaning chemistry, operate at the right temperature and use the correct frequency, the part to be cleaned the contaminant to be removed and the degree of soil, determine this, our years of experience advising manufacturing and maintenance clients on the right process for their cleaning needs help us identify the exact product combo that you need, just send AG SONIC email or call us, and we’ll guide you to the right solution quickly



Cleaning effect:

28khz DPF Dirty Diesel Particulate Ultrasonic Filter Cleaning Machine 360 liters with 9KW Heating 0

28khz DPF Dirty Diesel Particulate Ultrasonic Filter Cleaning Machine 360 liters with 9KW Heating 1
