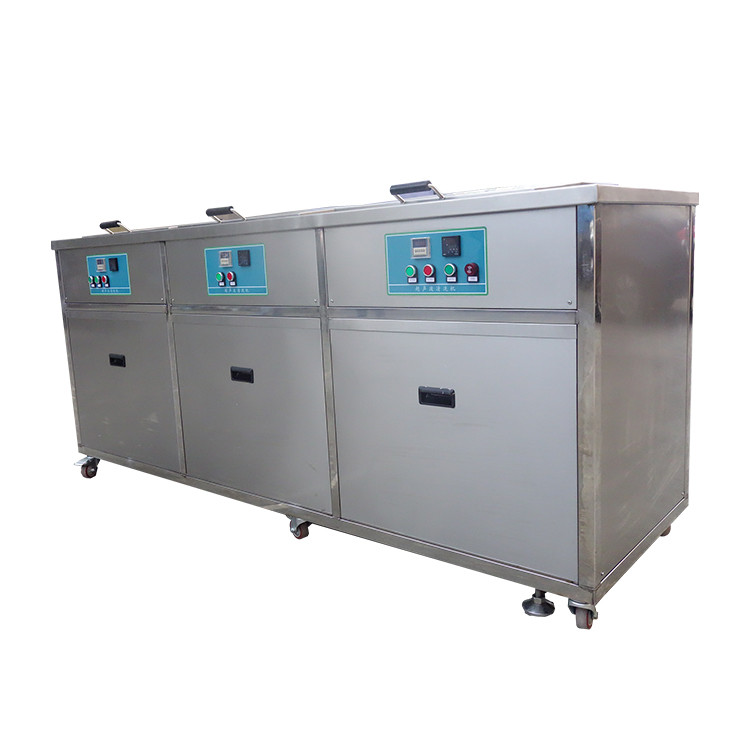

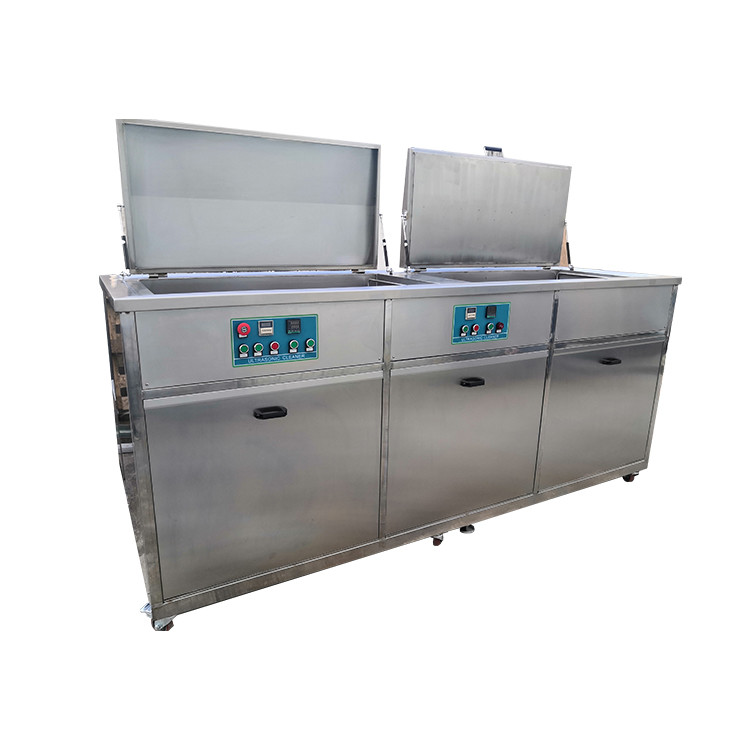

3/4" Valve 99h Timer Ultrasonic Filter Cleaning Machine 12KW SUS304

digital timer heater ultrasonic diesel particulate filter cleaner machine

How does ultrasonic filter cleaning work?

Don’t replace filters when they become clogged with dirt, grease or other contaminants; ultrasonic cleaners can restore many types of filters to look and function like new. Ultrasonic parts washers are particularly effective for filters made of metal or plastic mesh; the gentle yet powerful process is much less damaging than traditional cleaning methods that use a brush and high-velocity chemical cleaning solutions. Ultrasonic cleaners use water based solutions that won’t damage filters yet reach every crack and crevice for the best possible clean. Ultrasonic cleaning uses a process called cavitation where microscopic bubbles form from ultrasonic waves, then implode on the part’s components; thereby vigorously yet gently scrubbing and cleaning surfaces and crevices. No matter how stubborn the build-up, your filters will be restored to full working capacity.

Ultrasonics efficiently removes:

• carbons
• varnishes and paints
• petrochemicals
• oil and grease
• metal shavings
• lubricants
• rusts
• carcinogens
• polymers

Ultrasonics can clean a wide range of filters including:

• extruders and pumps
• filter elements
• filter vessel assemblies
• polymer pumps
• spin and screen packs
• valves
• spinnerets
• die plates
• porous metal
• pleated metal
• woven screens
• fiber metal felt
• slotted wire
• filters with alloys

Benefits of ultrasonics for filters:

• Cleans delicate parts without damage
• Cleans cracks and crevices that would be difficult to reach with the hand
• Does not require line-of-sight for effective cleaning
• Doesn’t use harsh chemical solvents that are dangerous for workers and the environment
• Safe for aluminum, magnesium and zinc
• Biodegradable cleaner
• Clean multiple pieces at once without having to brush by hand – saves time and money

Filter ultrasonic cleaning machineSpecifications:

Specifications:

Features:

1. Tank materail is SUS304 with 2mm thickness, Human hand argon welded, Sturdy and durable resistance to high tempearture
2. 50W industrial transducers, outstanding cleaning effects
3. Built-in generator
4. Power adjustable, choose different power according to different cleaning objects
5. Digital timer: 1~99mins timer adjustable. continious working for long time.
6. With memory function, no need to reset time and temperature every time.
7. 20~80C adjustable, powerful heating panel, faster cleaning
8. Industry use power cord, more safer.
9. Can bear 100~200KG cleaning objects
10. Accessories: Machine with stainless steel basket, drainage, lid, movable castors

Q: How to control the cleaning time?

A: Generally, 5-10 minutes is enough for daily goods clean.

Q: Does ultrasonic cleaner damage the articles?

A: Ultrasonic cleaning is considered safe for most parts; although in some cases it is necessary to observe caution. Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.

Q: What about after-sale service?

A: our company provides 1 Year warranty. If any technical problem during warranty time, replacement parts will be sent free of charge. After warranty time, technical support is also available for every customer.

Q: What kind of cleaning solution should I use?

A: A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the work piece.

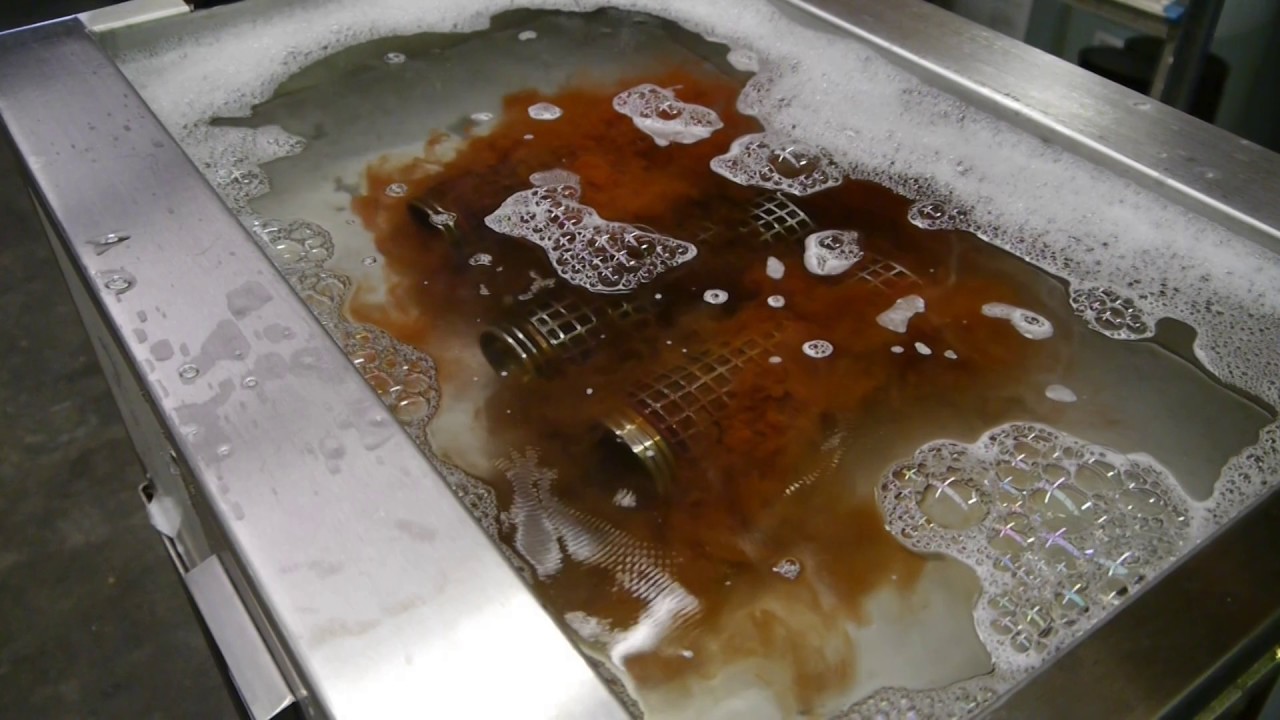

Ultrasonic Filter Cleaning Effect

Ultrasonic Cleaning Filter
