|1st Tank:||Ultrasonic Cleaning Tank||2nd Tank:||Ultrasonic Rinsing Tank|
|Tank Size:||600X500X450mm||Accessory:||Basket, Lid|
|Optional:||FIlter System||Suitable:||Oil Filter Cleaning|
ultrasonic filter cleaner,
ultrasonic wave cleaner

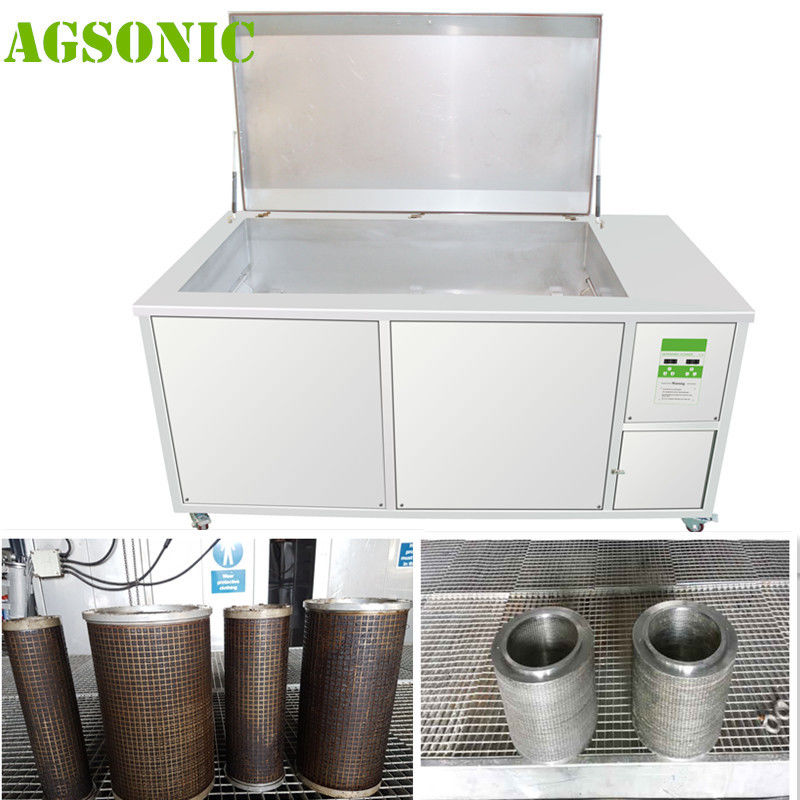

Filter Ultrasonic Cleaner, Filter Washing/Cleaning Machine to Remove Oil, Dust, Rust, Carbon, Dirt, Germ
How does ultrasonic filter cleaning work?
Don’t replace filters when they become clogged with dirt, grease or other contaminants; ultrasonic cleaners can restore many types of filters to look and function like new. Ultrasonic parts washers are particularly effective for filters made of metal or plastic mesh; the gentle yet powerful process is much less damaging than traditional cleaning methods that use a brush and high-velocity chemical cleaning solutions. Ultrasonic cleaners use water based solutions that won’t damage filters yet reach every crack and crevice for the best possible clean. Ultrasonic cleaning uses a process called cavitation where microscopic bubbles form from ultrasonic waves, then implode on the part’s components; thereby vigorously yet gently scrubbing and cleaning surfaces and crevices. No matter how stubborn the build-up, your filters will be restored to full working capacity.
Ultrasonics efficiently removes:
Ultrasonics can clean a wide range of filters including:
Benefits of ultrasonics for filters:
Ultrasonic cleaning machines work on the principle of agitating cleaning solvents using high frequency sound waves, the ultrasonic agitation creates millions of microscopic bubbles that implode releasing vast quantities of energy, this action, know as cavitations, dislodges any contaminant stuck to the surface of a part, ultrasonic cavitations thoroughly cleans every surface in contact with the cleaning fluid
While ultrasonic cleaning is the perfect deep cleaning solution for engine parts, choosing the right combination of cleaning machine and its cleaning chemistry can get a bit tricky, need help in selecting, these are several basics you need to know, this is where we come in, call AG and our engineer will help you select the right cleaning machine and machine chemistry

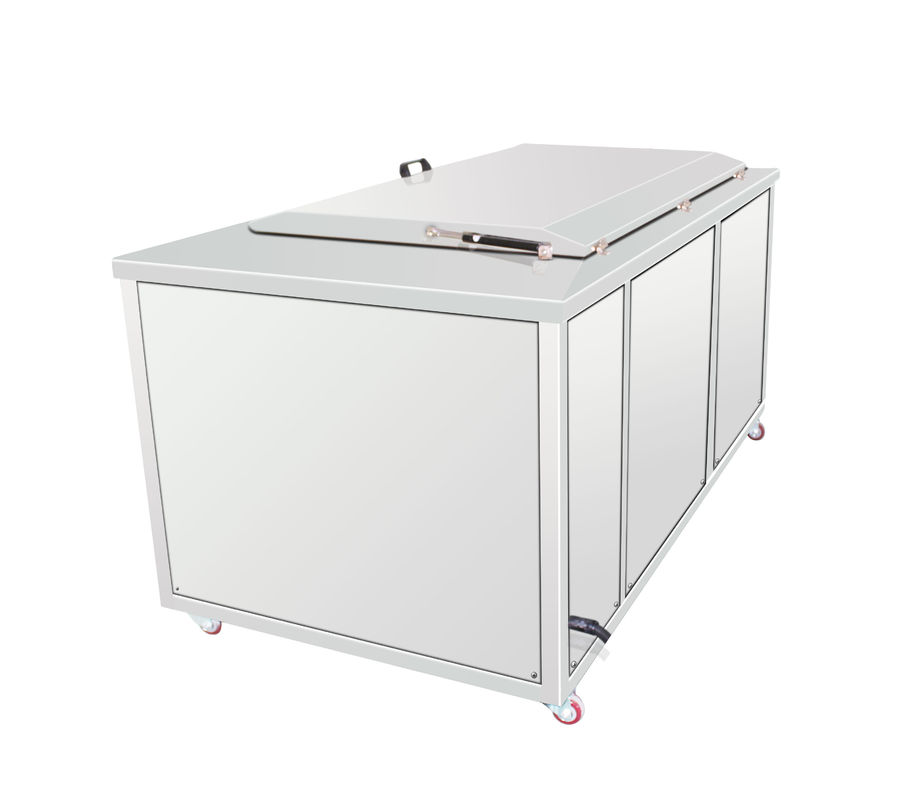

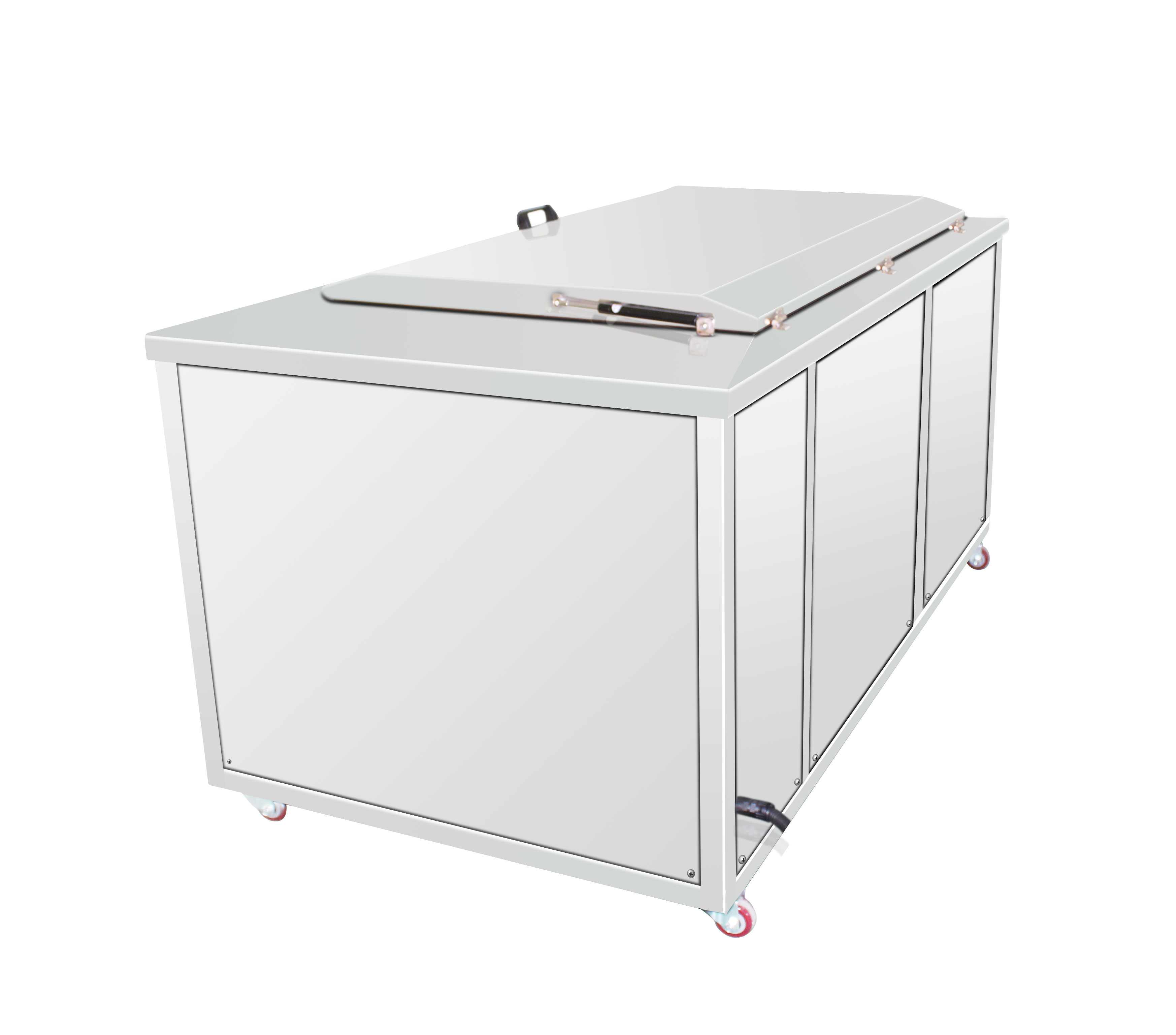

Filter ultrasonic cleaning machineSpecifications:
|Ultrasonic Tank Dimension(mm)||550X400X350||600X500X450||1000X600X600|
|Rinsing tank dimension(mm)||550X400X350||600X500X450||1000X600X600|
|Construction Case||SUS304 (Mirror shining image available)|
|Temperature range||20~80C adjustable|
|Lid & Basket||Available, material: SUS304|
|Cleaning Tank voltage||AC220V/AC380V 3phase|
|Generator Voltage||AC110V / 220V 1phase|
|Features||With double tank for cleaning and rinsing.
With filtration system
Multi-direction castors with brake;
1 year warranty
Aplication of tanks ultrasound cleaner machine applications:
|jewelry||Jewelry, diamond, gold, silver products,|
Moulds, precision parts, pressing parts, camera parts, bearing, hardware
|electronics||PCB board, electronic parts, TV parts, computer parts|
engine parts, gear box, shock absorber, auto nozzle, cylinder, valve
|Dental& Medical||dental tools, medical tools, injector, surgery tools, dropper, glass container|
|Plating& painting||polishing parts, SUS cutter, tableware, plating|
|Food industry||Oven tray, boiler, bottles, bottle cap, filters|
|Optical& watch maker||
optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch
|textile||spinneret plate, rubber parts, plastic molds, toy|
|seal, flapper, coins, pottery, bank card, IGBT|
Q: How to control the cleaning time?
A: Generally, 5-10 minutes is enough for daily goods clean.
Q: Does ultrasonic cleaner damage the articles?
A: Ultrasonic cleaning is considered safe for most parts; although in some cases it is necessary to observe caution. Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.
Q: What about after-sale service?
A: our company provides 1 Year warranty. If any technical problem during warranty time, replacement parts will be sent free of charge. After warranty time, technical support is also available for every customer.
Q: What kind of cleaning solution should I use?
A: A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the work piece.
Ultrasonic Filter Cleaning Effect
Ultrasonic Cleaning Filter
