| Place of Origin: | China |
|---|---|
| Brand Name: | AG SONIC |
| Certification: | CE |
| Model Number: | AG-3072 |
| Minimum Order Quantity: | negotiation |
| Price: | negotiation |
| Packaging Details: | 1unit/wooden case |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 300units/month |
| 1st Tank: | Ultrasonic Cleaning Tank | 2nd Tank: | Ultrasonic Rinsing Tank |
|---|---|---|---|
| 3rd Tank: | Hot Air Drying Tank | Optional: | Dying System |
| Suitable: | Engine, Car Parts, Etc. | Packing: | Wooden Case |
| Tank Size: | Customized | Warranty: | 1 Year |
| High Light: | industrial ultrasonic cleaning machine,industrial ultrasonic cleaning tanks |
||

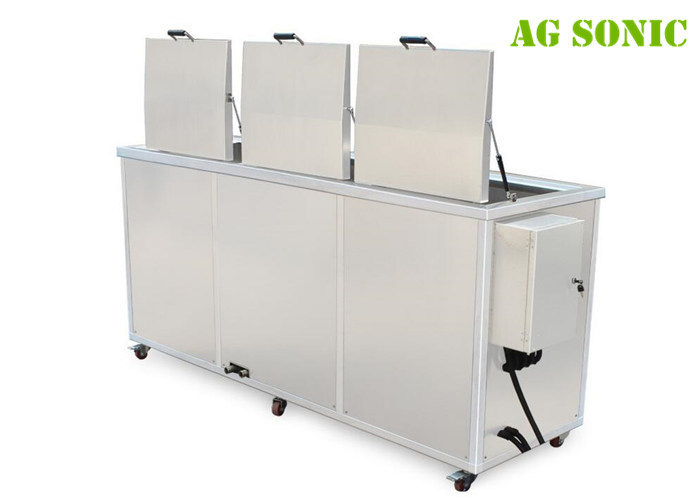

Customized Industrial Ultrasonic Cleaner with Rinsing Tank Drying Tank 40khz
Ultrasonic cleaner now can be widely used in many industries: car industry, diesel industry, medical industry, electric industry, etc. Any waterproof parts can be used to clean in the tank. Need more info, welcome to inquiry.
General introduction of the industrial ultrasonic cleaner:
1st ultrasonic cleaning tank
2nd rinsing tank after rinsing(or add a second rinsing tank for thorough rinsing)
3rd hot air drying tank
If any special requirements, pls just free to contact. And experienced engineer will design the machine for you.
The Advantages of AG Engine block ultrasonic cleaning machine
Ultrasonic cleaning machine delivers high performance industrial strength, cleaning action on Engine block, carburetor and Engine parts
01: Cleans carbon deposits from carburetors and all manner of engine parts
02: Removes stubborn oil grease, lubricants, paint, rust, and dirty (with-pre-cleaning in same cases
03: Aluminum sate
04: Penetrates deep into the part and cleans holes, small apertures and crevices
05: Clean sensitive parts like wiring and plastic without damage
06: Does not require line-of-sight for effective cleaning
07: Ensures part longevity due to high degree of cleanliness
AG Engine block ultrasonic cleaning machine are revolutionizing cleaning methods and processes on the automotive and mechanic shop floor, our Engine block ultrasonic cleaning machine can clean all kinds of automotive, aircraft, and marine engine parts, ultrasonic technology for cleaning parts eliminates manual labor while providing you with superior cleaning action, most parts can be cleaned with environmentally friendly water-based solutions.
Specifications:
| Model | JP-3048G | JP-3072G | JP-3144G |
| Ultrasonic Tank Dimension(mm) | 550X400X350 | 600X500X450 | 1000X600X600 |
| Rinsing tank dimension(mm) | 550X400X350 | 600X500X450 | 1000X600X600 |
| Drying tank dimension(mm) | 550X400X350 | 600X500X450 | 1000X600X600 |
| Max. Capacity | 77L/tank | 135L/tank | 175L/tank |
| Construction Case | SUS304 (Mirror shining image available) | ||
| Construnction Tank | SUS304 | ||
| Transducer Number | 48pcs | 72pcs | 144pcs |
| Ultrasonic power(Max.) | 2400W | 3600W | 7200W |
| Ultrasonic frequency | 40kHz | 40kHz | 40kHz |
| Temperature range | 20~80C adjustable | ||
| Heating power | 6KW | 12KW | 24KW |
| Timer | 1~99h | 1~99h | 1~99h |
| Drain | 3/4" Valve | ||
| Lid & Basket | Available, material: SUS304 | ||
| Cleaning Tank voltage | AC220V/AC380V 3phase | ||
| Generator Voltage | AC110V / 220V 1phase | ||
| Features | With triple tanks for cleaning and rinsing. With filtration system Multi-direction castors with brake; 1 year warranty | ||
Aplication of tanks ultrasound cleaner machine applications:
| Industry | Cleaning objects |
| jewelry | Jewelry, diamond, gold, silver products, |
| machinery | Moulds, precision parts, pressing parts, camera parts, bearing, hardware |
| electronics | PCB board, electronic parts, TV parts, computer parts |
| Auto industry | engine parts, gear box, shock absorber, auto nozzle, cylinder, valve |
| Dental& Medical | dental tools, medical tools, injector, surgery tools, dropper, glass container |
| Plating& painting | polishing parts, SUS cutter, tableware, plating |
| Food industry | Oven tray, boiler, bottles, bottle cap, filters |
| Optical& watch maker | optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch |
| textile | spinneret plate, rubber parts, plastic molds, toy |
others | seal, flapper, coins, pottery, bank card, IGBT |
