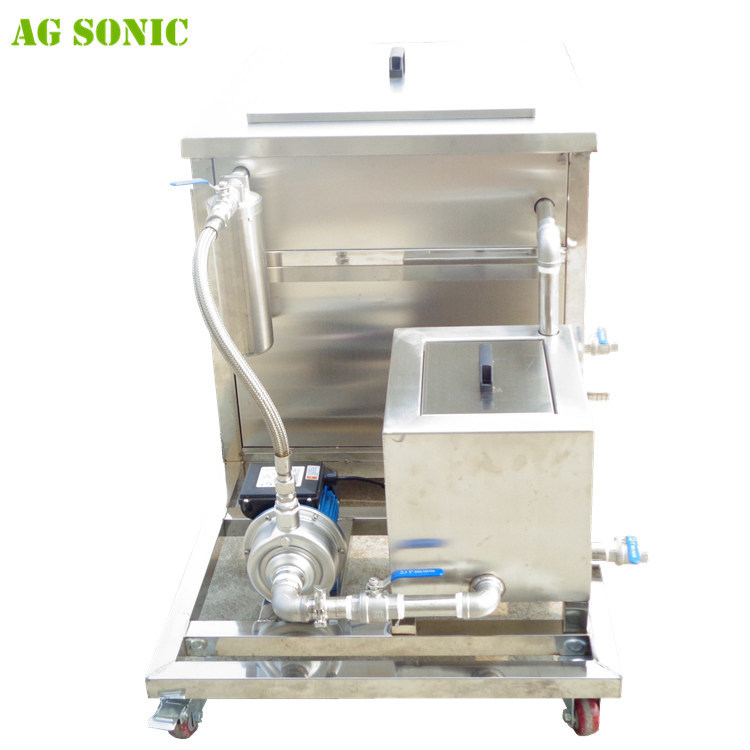

Industry Automotive Ultrasonic Cleaner for Fabricated Parts , Stamping Equipment and Toolings

Basic Information
Place of Origin: China
Brand Name: AG SONIC
Certification: CE
Model Number: T-72G
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 1unit/wooden case
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 300units/month
Tank Size: L1000xW600xH600mm Tank Material: SUS304/SUS316L
Accessory: Basket, Lid Optional: Dying System
Suitable: Motorcycle Parts Cleaning Warranty: 1 Year
High Light:

ultrasonic auto parts cleaner


ultrasonic case cleaner


Automotive Industry Ultrasonics for Fabricated Parts , Stamping Equipment and Toolings


Automotive repair, manufacturing and rebuilding companies can rely on ultrasonic cleaning technology to remove dirt and contamination like grease and carbon deposits from a huge range of automotive components and equipment including carburetors. The process is gentle yet powerful; it is also much faster and more efficient and effective than traditional cleaning methods. Keep your engine parts working at their optimum performance with ultrasonic cleaning!


How does automotive industry ultrasonics work?

Traditional automotive part cleaning methods require equipment to be broken down into pieces and then hand scrubbed with a chemical solution. This manual method is time consuming, not as effective as ultrasonic cleaning and exposes workers and the environment to toxic substances.

An ultrasonic cleaner uses a gentle yet powerful water based cleaning solution inside of a tank. The automotive parts are placed into the tank where ultrasonic waves are introduced to separate the cleaning solution’s molecules. This separation creates vacuum “cavities” that then implode and cause ultra-high energy “de-cavitations.” These de-cavitations act as microscopic scrubbers that clean all cracks and crevices of the machinery which would be impossible to access otherwise. High-end ultrasonic machines also incorporate a heating element that furthers increases the benefits of ultrasonic cleaning. At the end of the process, the equipment is left spotless with and extended useful life.


Mainly application:


What can remove:


Why we use ultrasonic cleaner?

With cavitations effect Ultrasonic cleaning technology is widely used in engine block, engine parts cleaning, semi-conductor silicon chip cleaning, optical glass cleaning, parts of watch and cock cleaning, jewelry cleaning, polyester filtration core cleaning, widow blind cleaning and etc.


Why we need drying system?

1. If your cleaning objectives are easy to get rust, a drying system is needed to quickly dry the parts to avoid to be rusty.

2. If you want to save cost, you can just buy a single tank ultrasonic cleaner, and you can use a spray gun to dry the parts. But it will waste you some time.


How to judge a good ultrasonic cleaner?

Actually the principle of the diferrent ultrasonic cleaners is the same, and the most important part of the cleaner is the PCB. So you need to make sure that the factory has an experienced engineer and good after service can be offered.


The cleaning scope of AG Engine block ultrasonic cleaning machine

Suitable for all types of engine parts

AG engine block ultrasonic cleaning machine effectively and thoroughly clean all types of engine parts

01: Automotive: thoroughly removes carbon deposits, grease, and other types of dirty and contaminants from carburetor, exhaust manifolds, cylinder blocks, 2-stroke and 4 stroke motorcycle engines, snow machines, ATV cylinders and heads, and more.

02: Marine: Suitable for inboard and outboard motors, the cleaning chemistry is both thorough and gentle on the aluminum parts reducing the risk of future corrosion

03: Aircraft: The high performance demands of aircraft engines establish the need for an intensive cleaning process that will restore the engine part to near original condition, our engine block ultrasonic cleaning machine easily, thoroughly, and safely clean both large and small parts, turbine blades, fuel nozzles, generator components, brakes and other parts that require periodic cleaning are all effectively and thoroughly cleaned using the ultrasonic cleaning process



All imported stainless steel structure, thickening Stainless steel plate,

adopting high Q value transducer and German binding process large power of ultrasonic output, set solvent heating and temperature automatic thermostat instrument, and temperature control range 0~100, base solvent, no pollution

Range: semi-conductor silicon chip, optical glass, parts of watch and clock, glasses, Jewelry, polyester filtration core and etc


The Advantages of ultrasonic cleaning machine:

Ultrasonic cleaning machine delivers high performance industrial strength, cleaning action on Engine block, carburetor and Engine parts

01: Cleans carbon deposits from carburetors and all manner of engine parts

02: Removes stubborn oil grease, lubricants, paint, rust, and dirty (with-pre-cleaning in same cases

03: Aluminum sate

04: Penetrates deep into the part and cleans holes, small apertures and crevices

05: Clean sensitive parts like wiring and plastic without damage

06: Does not require line-of-sight for effective cleaning

07: Ensures part longevity due to high degree of cleanliness



Specifications for ultrasonic cleaner T-72S
Model T-72S
Tank capacity 360L
Tank size 1000x600x600mm
Unit size 1140x740x820mm
Tank material 2mm SUS304
Ultrasonic power 3600W
Heating power 9KW
Timer 1-99min adjustable
Heater 0-80c adjustable
Frequency 28/40khz
Control External generator, more stable
Optional Oil filter system, pneumatic lift, rinsing tank, etc.
Voltage 110V, 1phase; 220V, 3phases/220V, 1phase; 380V, 3phases
Warranty 1 year
Packing 1unit/wooden case
