|Application:||Weapons Guns Cleaning||Heating Power:||3KW|
|Control:||External Generator, More Stable||Warranty:||1 Year|
industrial ultrasonic cleaning machine,
industrial ultrasonic cleaning tanks
Ultrasonic Gun Weapons long Cleaning Machine With Timer And Heating
Ultrasonic cleaning is a fast and highly efficient way for cleaning complex gun components and instruments used in the defence sector. Ultrawave has supplied a range of ultrasonic cleaning systems to the Ministry Of Defence for cleaning a wide range of parts and components in vehicles and machinery. Our ultrasonic cleans are also used by the armed and police forces, as well as private companies for cleaning and servicing of weapons and munitions.

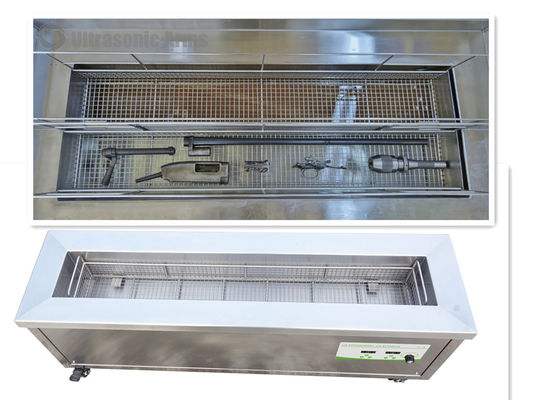

Ultrasonic Dual Tank Gun Cleaner 36" Dual Tank Ultrasonic Rifle Cleaner
How does ultrasonic Gun Rifle cleaning work?
Contrary to popular belief, cavitation is the force behind ultrasonic cleaning. It is not the sound waves that scrub the part clean – it is the cavitation process set up by the sound waves that scrub the part clean.
During cavitation, micron-size bubbles form and grow due to the alternating positive and negative pressure waves in a solution. The bubbles subjected to these alternating pressure waves continue to grow until they reach resonant size. Just prior to the bubble implosion, there is a tremendous amount of energy stored inside the bubble.
Temperatures inside a cavitating bubble can reach 9,900F with pressures up to 500 atm. The implosion event, when it occurs near a hard surface, changes the bubble into a jet one-tenth the bubble size, which travels at speeds up to 400 km/hr toward the hard surface. With the combination of pressure, temperature and velocity, the jet frees contaminants from their bonds with the substrate. Because of the inherently small size of the jet and the relatively large energy, ultrasonic cleaning has the ability to reach into small crevices and remove entrapped soils effectively.
Ultrasonic Gun Rifle Machine Power MeasureMent –Foil Test
The most reliable measurement device for cavitation is a simple foil test. To perform the test, a piece of aluminum foil is placed vertically in the cleaning bath down to the bottom of the tank spanning opposite corners. Typical immersion time for the foil is 1 min in the bath. Upon inspection of the foil, a pattern of indentations, and possibly holes (depending on the foil thickness, frequency and power density) should occur. In a properly designed ultrasonic tank, the pattern on the foil should be uniform and cover the entire area. This shows that even cavitation is occurring, and, therefore, cleaning should be even and consistent. If the pattern is inconsistent and there are dead zones, then inconsistent cleaning can occur.
Poor foil tests can occur for a variety of reasons: lack of generator frequency sweep; improperly matched ultrasonic generator to transducer load; piezoelectric transducers that have degraded or disbonded; lack of ultrasonic power for a given tank volume; poor transducer layout; or inability of the cleaning solution to properly degas and cavitate
Ultrasonic Gun Cleaner is A Shooter’s Best Preferred Choice
Ultrasonic weapon cleaners like Hornady, Lyman, iSonic, RCBS and many more are used from decades and is the best choice for every shooter today.
These devices used to be expensive and only professionals can afford to buy them. However with changing technology, these are built inexpensive and can be purchased easily using online stores like Amazon.
The main reason to use ultrasonic handgun cleaners is that, the weapon attracts lots of moisture due to overtime usage and begins to deteriorate slowly. Cleaning its exterior as well as interior parts will help to restore it back in good stage making it smoother for shooting.
An ultrasonic weapon cleaner works with powerful high frequency sound waves and is obviously a great way to clean all your weapon parts. Even the place where the gun cleaning brush can not reach easily, can be easily cleared by ultrasonic process.
The cavitation inside the cleaning device makes use of the cleaning solution to brush up the stubborn dirt, carbon and oil residues completely. It also wipes off all the left traces of moisture which may be accumulated on the gun.
Ultrasonic Gun Weapons long Ultrasonic Rifle Cleaner Model: T-18S details:
|Model||T-18S (digital timer&heater, Power adjustable)|
|Tank size||140×25×20CM (LxWxH)|
|Ultrasonic power||360~900W adjustable|
|Power supply||AC110~130V, AC 220~240V, 50/60 Hz|
|Tank material||SUS304, 2mm thickness|
|Shell Material||SUS304, 1mm thickness|
|Others||With drainage, basket, lid|
|N.W./ G.W.||54KG/ 75KG|
|Warranty||1 year& tech support for life|
ultrasonic tank models for your choice:
|Model||Tank size||Unit size||Volume||Ultrasonic power||Frequency||Heating power||Timer||Heating temperature|
1) Tank materail is SUS304 with 2mm thickness, Human hand argon welded, Sturdy and durable resistance to high tempearture
2) 50W industrial transducers, outstanding cleaning effects
3) External ultrasonic generator
4) Power adjustable, choose different power according to different cleaning objects
5) Digital timer: 1~99hours timer adjustable. continious working for long time.
6) With memory function, no need to reset time and temperature every time.
7) 20~80C adjustable, 9KW heating panel, faster cleaning
8) Industry use power cord, more safer.
9) Can bear 50~100KG cleaning objects
10) Accessories: Machine with stainless steel basket, drainage, lid, movable castors.
Q1: What’s the theory of ultrasonic cleaning.
A: When cleaning, the ultrasonic cleaner will generate ultrasonic waves that create millions of tiny bubbles through the process of cavitation. The bubbles gently clean and polish any surface they come in contact with, penetrating every nook and cranny to dislodge trapped dirt and debris.
Q2: Will ultrasonic cleaning method cause any damage of cleaning object?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe. The traditional manual or chemical cleaning will cause mechanical wear or chemical corrosion. However, ultrasonic cleaning won’t cause any damage. Even the gentle cleaning action is ideal for delicate items, too.
Q3: How to choose suitable ultrasonic frequency?
A: Frequency is suggested based on pollutants in the objects.
20 Khz, 28 KHz Frequency is stronger, better for the cleaning of car/ motor / truck / vessel / metal parts. (Remove oil, grease, pastes, etc.)
40KHz, 60Khz is better for PCB boards, electronic parts, glassware, jewelry, such kind of precision or delicate items.
Q4: What kind of cleaning solution should I use?
A: A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the work piece. Pls consult us for details.
Q5: How to control the cleaning time?
A: Generally, 3minutes is enough for daily goods clean.
