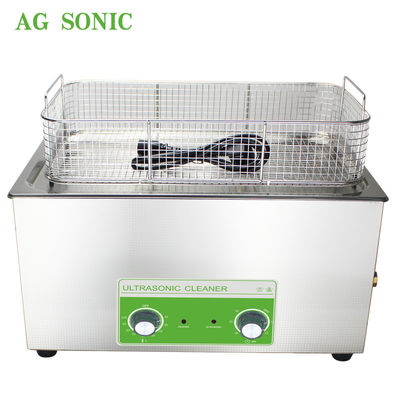

30L Brass Parts Soft Parts Ultrasonic Cleaner with SUS Basket and Lid

Basic Information
Place of Origin: China
Brand Name: AG SONIC
Certification: CE
Model Number: TA-500
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: 1pcs/carton
Delivery Time: 3 working days
Payment Terms: T/T
Supply Ability: 3000units/month
Model: TA-500 Tank Size: L500xW300xH200mm
Ultrasonic Power: 500W, Mechanical Heating Power: 600W, Mechanical
Frequency: 40khz Accessory: Lid, Basket, Power Cord
High Light:

industrial ultrasonic cleaning machine


industrial ultrasonic cleaning tanks


30L Brass Parts Soft Parts Ultrasonic Cleaner with SUS Basket and Lid


Benefits of cleaning brass with a sonic cleaner

How brass is cleaned with a sonic cleaner

  1. Sonic cleaners come with beakers that sit inside the basin part of the unit. Multiple beakers may be filled at once to enable cleaning many pieces simultaneously. Note that there is no difference when using one beaker compared to multiple as it relates to overall cleaning quality. Make use of the space you have in the sonic cleaner to save on cleaning time by using multiple beakers.
  2. The cleaning solution mix should follow manufacturer recommendations for brass items. Fill beakers roughly halfway to the top and then place the brass parts inside, ensuring that they are completely submerged.
  3. Use your sonic cleaner’s recommended cleaning cycle – often 480 seconds or 8 minutes per cleaning cycle. For optimal cleaning, you may need to run up to three cycles. After the cycles have completed the cleaning solution should be carefully drained, leaving the brass in the beakers.
  4. Next, remove the brass from the beaker and carefully rinse it to remove any residue.
  5. Return brass to the beaker and add distilled water and baking soda.
  6. Run the cleaning cycle once again. After the cleaning cycle has ended carefully drain the water and rinse the brass with fresh distilled water.
  7. Lastly, before drying there is usually a two rinse cycle to finish cleaning. First return the brass items to the beaker and fill the beakers with distilled hot water until they are covered. Set the cleaner to a single cycle. After completion, carefully drain the water. For the second cycle, cover the brass items with distilled room temperature water. Run a final cycle before draining the water again.
  8. Carefully dry the brass with a soft cleaning cloth and return the pieces to storage

Product specifications:

Model Tank size Unit size Volume Actual ultrasonic power Rated ultrasonic power Ultrasonic frequency Heating power Timer Heating temperature
LxWxH(mm) LxWxH(mm) (L) (W) (W) (kHz) (W) (MIN) ()
TA-50 150x135x100 175x160x210 2 50 60 40 150 1-30 0-80
TA-100 240x135x100 265x165x220 3.2 100 120 150
TA-150A 300x150x100 325x180x225 4.5 150 180 300
TA-150B 300x150x150 325x180x280 6.5 150 180 300
TA-200 300x240x150 325x265x280 10.8 200 240 450
TA-300 330x300x150 360x325x285 15 300 360 450
TA-400 500x300x150 530x325x285 22 400 480 600
TA-500 500x300x200 530x325x325 30 500 600



Our services:

If any technical problem during warranty time, replacement parts will be sent free of charge.

Technical support is also available in whole time.

2. Our Advantage

1. Reply your enquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. OEM is available if the quantity is large.

4. We offer very competitive for all our products.

3. After-sales

Our machines undergo an extensive and strict testing and quality control procedure, ensuring every item purchased meet global quality standards. It's safe and reliable quality for ultrasonic cleaning equipment.



01: why clean brass parts with ultrasonic?

Delivering and using clean parts is not always obvious, certainly, no one wants to handle a dirty parts or install it into a critical machine, but, dirty, debris and contaminants can cause problems for manufactures and end users, from the merely frustrating to catastrophic, dirty parts can cause critical components to exceed tolerances and even fail damaging valuable equipment and property while contamination (everything from grease, oil and chemicals to viruses and bacteria) can seriously harm users.

02: Introduction

Ultrasonic cleaning is a technology that uses high frequency sound waves (ultrasonic: above the range of human hearing) to agitate an aqueous or organic medium (cleaning chemistry) that in turn acts on contaminations adhering to substrates like metals, plastics, glass, rubber and ceramics. Contaminants can be dust, dirty, oil, pigments, grease, polishing compounds, flux agents, fingerprints, soot wax and mold release agents, biological soil like blood, and so on

03: Application

Ultrasonic cleaning can be used for many applications, including plastic parts, bearing, bolts, rubber parts, internal parts, plastic injection molds, transmission parts, and final cleaning of all engine parts prior to assembly, the versatility of ultrasonic cleaning machine make them the perfect choice for automotive, medical, pharmaceutical, aerospace, engineering and many other industries

04: Characters

Opposing horizontal transducers mounted at two sides

Digital control wave ultrasonic generators

Movable cleaning basket

Can combined with lifting system, drying tank, rinsing tank, recirculation & filtering system

Incredible versatility in dimension, function and auxiliary couples
