Product: | Tyre Ultrasonic Cleaner | Function: | With Automatic Lift |
---|---|---|---|
Ultrasonic Power: | 4500W | Heating Power: | 12KW |
Timer: | 1-99min Adjustable | Heater: | 20-80c Adjustable |
High Light: | industrial ultrasonic cleaning machine,industrial ultrasonic cleaning tanks |

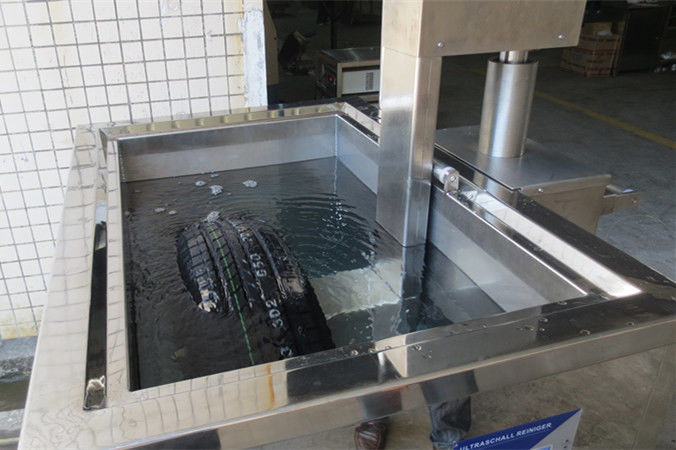

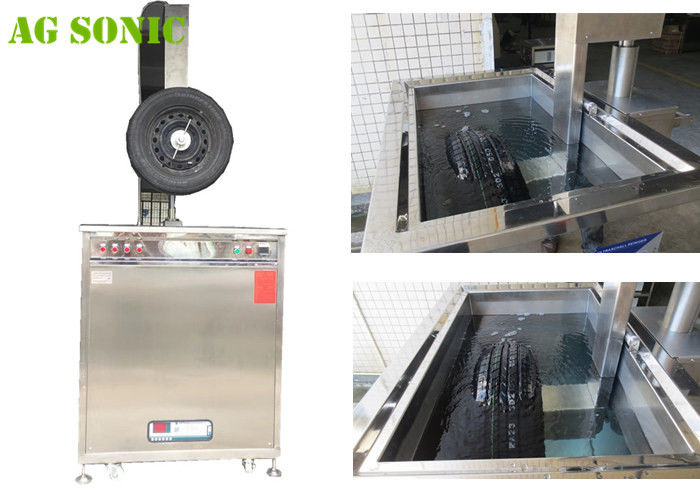

Alloy Wheel Ultrasonic Cleaner Automatic Lift and Oil Separator Optional
Why Clean Tools Heads, Injectors And Injection Pumps Engine with Ultrasonics?
Delivering and using clean parts is not always obvious. Certainly, no one wants to handle a dirty part or install it into a critical machine, but dirt, debris and contaminants can cause problems for manufacturers and end users. From the merely frustrating to catastrophic, dirty parts can cause critical components to exceed tolerances and even fail damaging valuable equipment and property while contamination (everything from grease, oil and chemicals to viruses and bacteria) can seriously harm users.
Application:
1. For household: jewelry, ornaments, headwear, brooch, eyeglasses, watch chain, dvd, cd, razor, toothbrush, denture, tea sets and baby nipples, vegetables and fruits;
2. For eyeglasses and optical instruments: all optical instruments, such as parts of eyeglasses, magnifying glasses, telescope, microscope, camera…
3. For jade, accessories processing industry;
4. For watch industry, precise instruments;
5. For bank, office, arts and crafts, adverting industry and official supplies: such as printer, shower nozzle, technical pen, pen, painting brush, nozzle, sprayer, seal…
6. For communication equipment and electrical equipment maintenance: such as precise circuit board, spare parts of mobile phone, interphone, personal stereo…
7. For medical industry, schools: such as all kinds of medical instruments, denture, dental cast, lens, beaker and test tube of lab, mixture of all kinds of drug and reagent…
8. Gift for others.Tools Heads, Injectors And Injection Pumps Engine
Tyre Ultrasonic Cleaning Machine Performance, Industrial Strength, Cleansing Action
Specification:
Model | T-90S |
Tank Dimension (mm) | 900*560*900mm (L*W*H) |
Tank total capacity | 453.6L |
Tank material | SUS 304 |
Housing Material | Stainless Steel |
Ultrasonic frequency | 28kHz |
Ultrasonic transducer numbers | 90pcs |
Electronic power | 4500W |
Heater's (Hot Plate) Power | 12KW |
Heating Temp | 30~80 °C adjustable |
Timer control | 0~30 min adjustable |
Cleaning tank's power requirement | AC 380V/415V, 3 phase; 50/60Hz |
Generator power requirement | AC 220V, 1 phase |
Suitable tyre size | Diameter: 500~800mm; Width: 135~350mm |
Electronic generator | 3 units seperate generators |
Maximum weight of Wheels | 50kg |
Others | With pneumatic lifting unit |
The Advantages of AG SONIC ultrasonic cleaning machine
CAT Engines Cylinder Head Ultrasonic cleaning machine delivers high performance industrial strength, cleaning action on Engine block, carburetor and Engine parts
01: Cleans carbon deposits from carburetors and all manner of engine parts
02: Removes stubborn oil grease, lubricants, paint, rust, and dirty (with-pre-cleaning in same cases
03: Aluminum sate
04: Penetrates deep into the part and cleans holes, small apertures and crevices
05: Clean sensitive parts like wiring and plastic without damage
06: Does not require line-of-sight for effective cleaning
07: Ensures part longevity due to high degree of cleanliness
Ultrasonic Cleaning tank models for your choice:
Model | Tank size | Unit size | Volume | Ultrasonic power | Frequency | Heating power | Timer | Heating temperature |
LxWxH(mm) | LxWxH(mm) | (L) | (W) | (kHz) | (KW) | (MIN) | (℃) | |
T-12S | 500x300x250 | 640x440x470 | 38 | 600 | 28/40 | 1.5 | 1-99 |
0-80 |
T-18S | 500x350x350 | 640x490x570 | 61 | 900 | 1.5 | |||
T-24S | 550x400x400 | 690x540x620 | 88 | 1200 | 3 | |||
T-30S | 600x450x400 | 740x590x620 | 108 | 1500 | 3 | |||
T-36S | 600x500x450 | 740x640x670 | 135 | 1800 | 4.5 | |||
T-48S | 700x500x500 | 840x640x720 | 175 | 2400 | 6 | |||
T-60S | 800x600x550 | 940x740x770 | 264 | 3000 | 7.5 | |||
T-72S | 1000x600x600 | 1140x740x820 | 360 | 3600 | 9 |
Main Features
1) Tank materail is SUS304 with 2mm thickness, Human hand argon welded, Sturdy and durable resistance to high tempearture
2) 50W industrial transducers, outstanding cleaning effects
3) External ultrasonic generator
4) Power adjustable, choose different power according to different cleaning objects
5) Digital timer: 1~99hours timer adjustable. continious working for long time.
6) With memory function, no need to reset time and temperature every time.
7) 20~80C adjustable, 9KW heating panel, faster cleaning
8) Industry use power cord, more safer.
9) Can bear 50~100KG cleaning objects
10) Accessories: Machine with stainless steel basket, drainage, lid, movable castors.
The reason ultrasonic cleaning device is one of the best tools For Engine Cylinder Heads Alloy Wheels
Small needle valves, jets, orifices, and ports of a carburetor; intake and exhaust ports or a cylinder head; pistons; injector nozzle; ring; pinion gears and much more can be cleaned and made just like brand new within few minutes.
Removing the accumulated oil sludge, varnish and carbon deposits, from these engine parts, manually by hand can be a tedious and long process. But using an ultrasonic parts cleaner makes all this a breeze. And for this reason ultrasonic cleaning device is considered one of the best tools in the auto mechanic’s garage. Get one now if you haven’t tried it yet!
Shipping:
Packing , loading, delivery time | |
Packing unit | 1set/wooden case |
Packing method | Export wooden case |
Loading port | Shenzhen |
Delivery time | About 15 working days |
Minimum Order Quantity | 1set |
Transport method | By express company / air / sea |
